Hydrodynamic performance analysis of waterjet propulsor inlet duct

QIU Jitao; YIN Xiaohui; WANG Renzhi

doi:10.19693/j.issn.1673-3185.02269

Volume 17 Issue 1

Mar. 2022

Turn off MathJax

Article Contents

Article Navigation > Chinese Journal of Ship Research > 2022 > 17(1): 11-17

QIU J T, YIN X H, WANG R Z. Hydrodynamic performance analysis of waterjet propulsor inlet duct[J]. Chinese Journal of Ship Research, 2022, 17(1): 11–17 doi: 10.19693/j.issn.1673-3185.02269

Citation:

QIU J T, YIN X H, WANG R Z. Hydrodynamic performance analysis of waterjet propulsor inlet duct[J]. Chinese Journal of Ship Research, 2022, 17(1): 11–17 doi: 10.19693/j.issn.1673-3185.02269

Citation:

QIU J T, YIN X H, WANG R Z. Hydrodynamic performance analysis of waterjet propulsor inlet duct[J]. Chinese Journal of Ship Research, 2022, 17(1): 11–17 doi: 10.19693/j.issn.1673-3185.02269

PDF( 2203 KB)

Hydrodynamic performance analysis of waterjet propulsor inlet duct

doi: 10.19693/j.issn.1673-3185.02269

QIU Jitao^{1, 2
,},
YIN Xiaohui^{1, 2},
WANG Renzhi²

1.
Science and Technology of Water Jet Propulsion Laboratory, Shanghai 200011, China
2.
Marine Design and Research Institute of China, Shanghai 200011, China

Received Date: 2021-01-17
Rev Recd Date: 2021-05-24

Available Online: 2022-02-25

Publish Date: 2022-03-02

Abstract

This is an Open Access article distributed under the terms of the Creative Commons Attribution 4.0 International License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Abstract

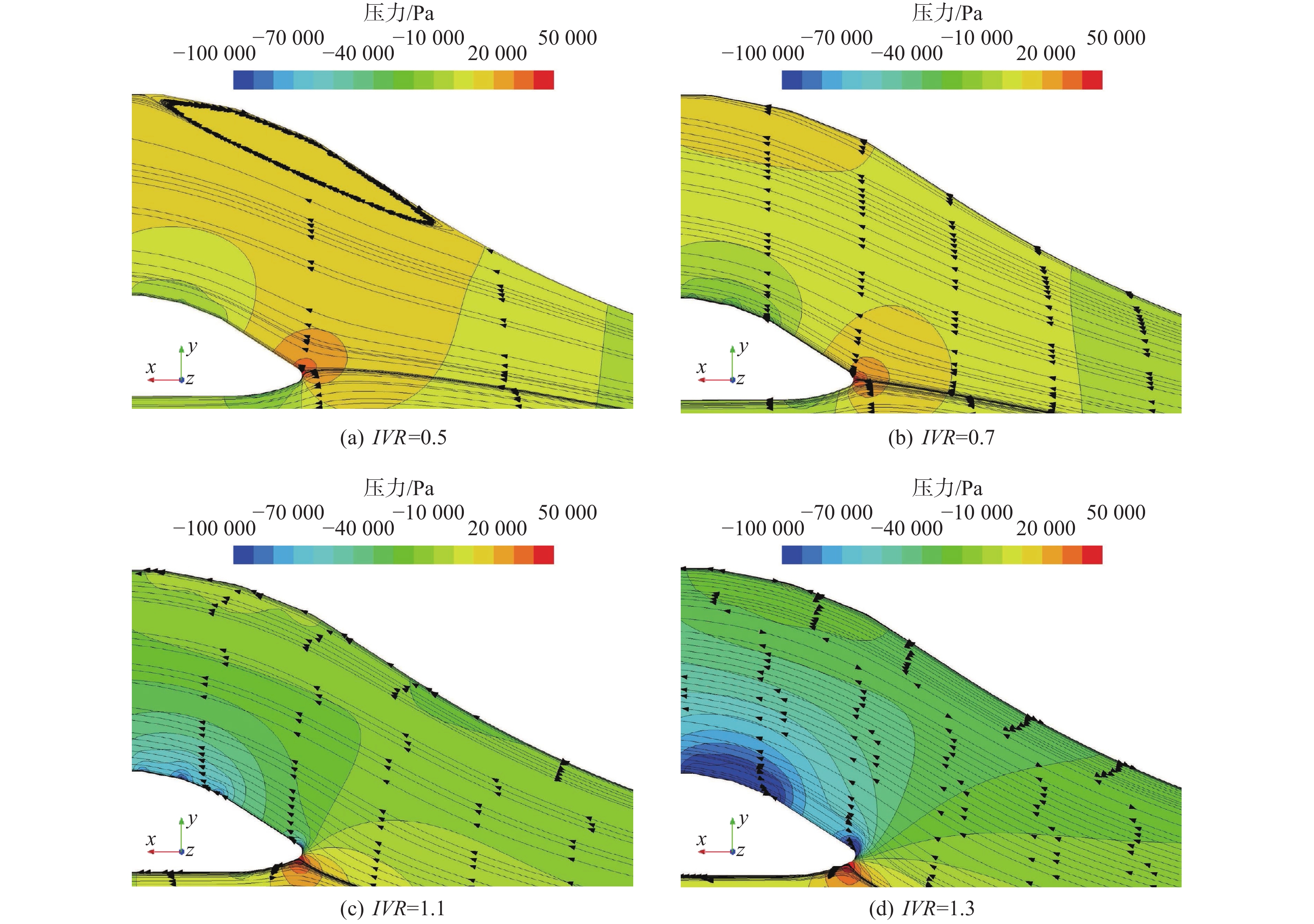

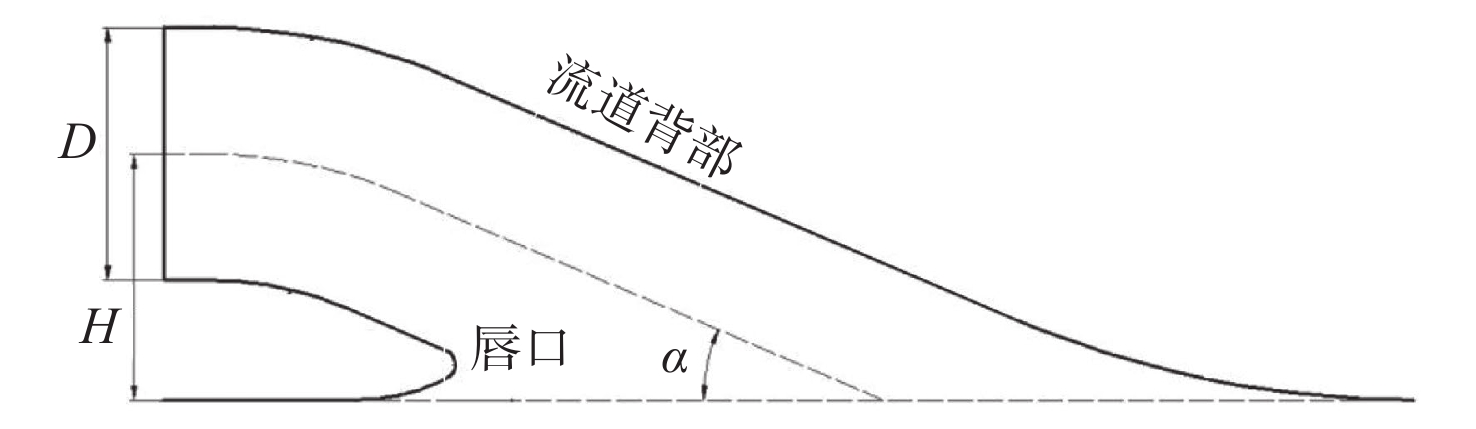

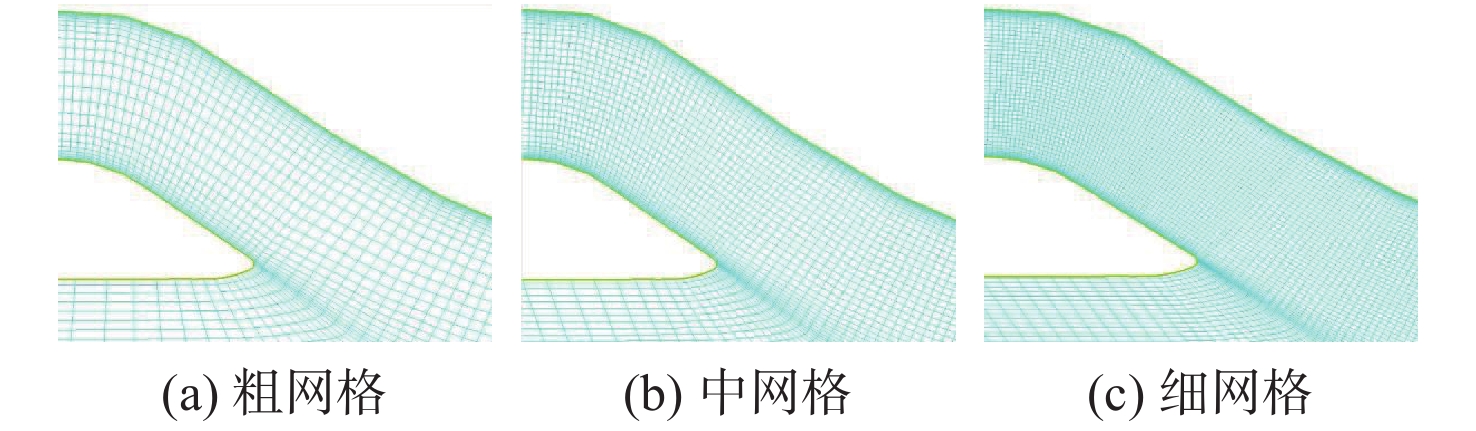

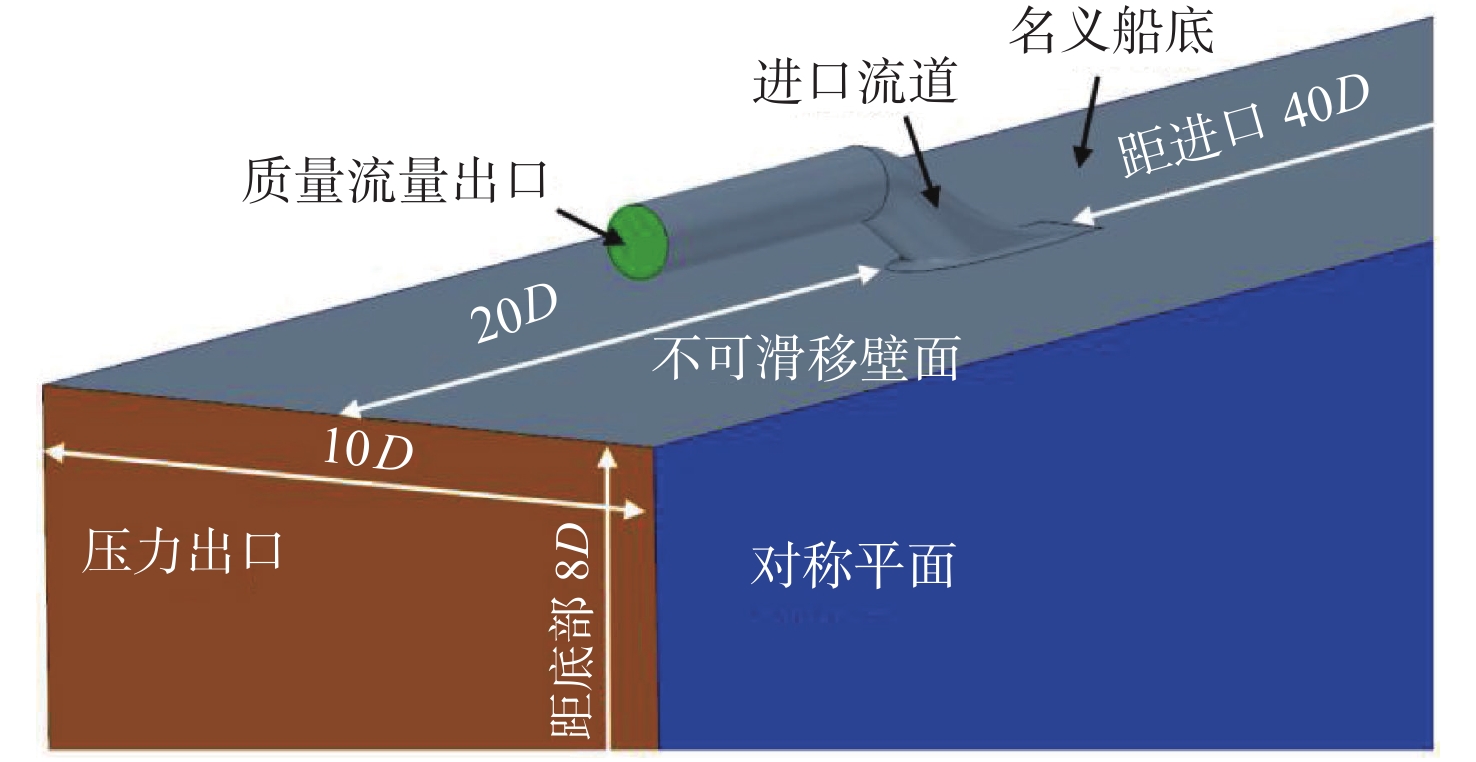

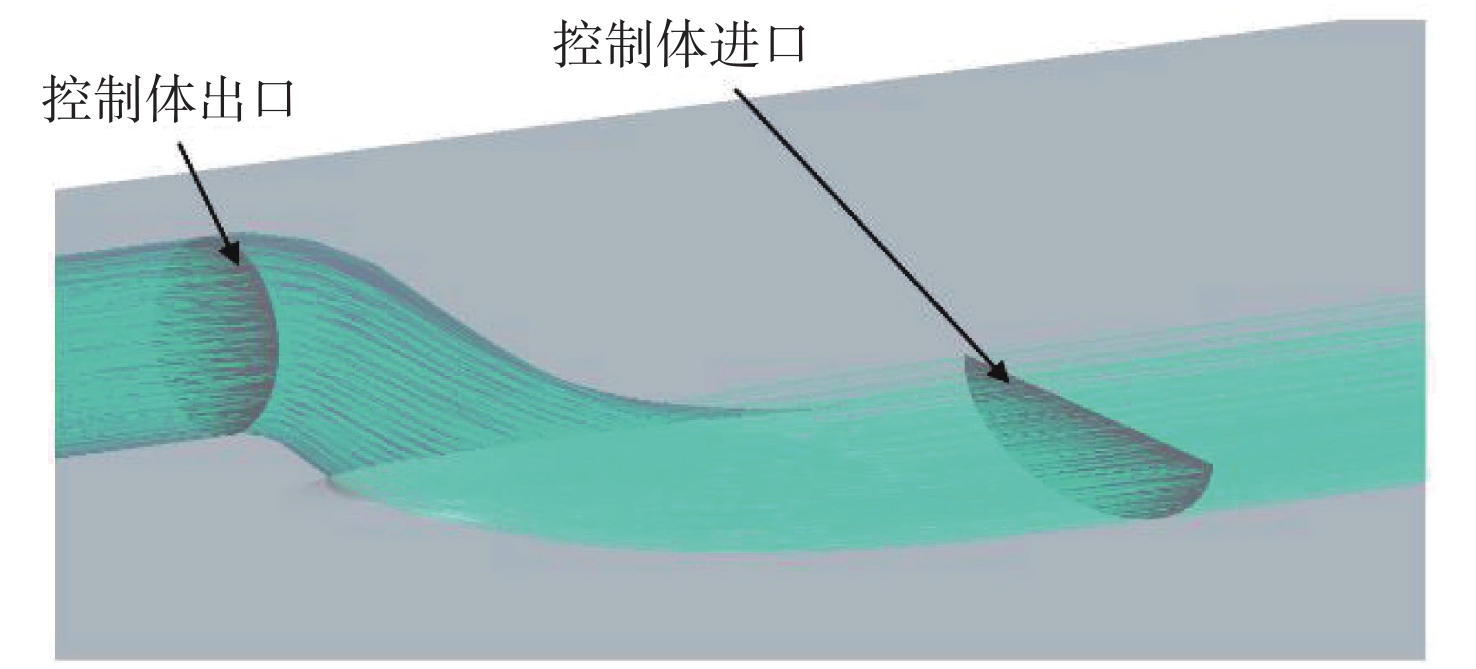

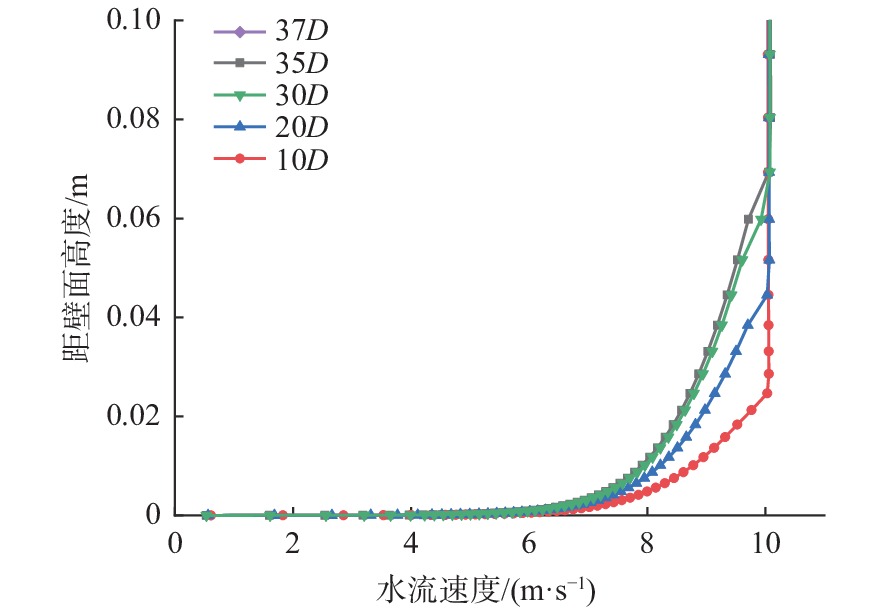

Objectives The effects of the key parameters of the inlet duct of a waterjet propulsor on its hydrodynamic performance are studied, providing references for the design of waterjet propulsors. Methods Based on STAR-CCM+ software, the influence of the axis height and inlet angle of a waterjet inlet duct on its hydrodynamic performance under different intake velocity ratio (IVR) conditions is studied using steady Reynolds-averaged Navier-Stokes equations (RANS) numerical simulation. Numerical uncertainty analysis is carried out according to the international towing tank conference (ITTC) uncertainty analysis procedure. In this paper, the computational domain is discretized with hexahedral structured grids. The set of governing equations is closed using the Realizable k-ε two-layer turbulence model, and the discretization schemes are second-order accurate. The semi-implicit method for pressure linked equations (SIMPLE) algorithm is applied in the pressure-velocity coupling calculation. Results The results show that the numerical uncertainty is less than 4%, indicating that the grids used in this paper yield well-converged and reliable numerical results. Conclusions The efficiency of the inlet duct is higher in the range of IVR = 0.7~1.1. For large IVR, the inlet angle should be reduced. For small IVR, the axis height can be appropriately increased to improve the homogeneity of flow at the exit of the inlet duct.
- waterjet,
- inlet duct,
- numerical uncertainty,
- hydrodynamic performance

FullText(HTML)

References(9)

References

[1]	张拯, 王立祥. 关于喷水推进装置平进口边界层影响系数估算的探讨[J]. 船舶, 2008, 19(3): 10–14. ZHANG Z, WANG L X. Estimation for inlet boundary-layer affect coefficient around waterjet duct[J]. Ship & Boat, 2008, 19(3): 10–14 (in Chinese).
[2]	钱浩, 宋科委, 郭春雨, 等. 喷水推进器流道对船舶阻力性能的影响[J]. 中国舰船研究, 2017, 12(2): 22–29. doi: 10.3969/j.issn.1673-3185.2017.02.003 QIAN H, SONG K W, GUO C Y, et al. Influence of waterjet duct on ship's resistance performance[J]. Chinese Journal of Ship Research, 2017, 12(2): 22–29 (in Chinese). doi: 10.3969/j.issn.1673-3185.2017.02.003
[3]	史俊, 冯学东, 李光琛, 等. 进口长度对船舶喷水推进器进水流道性能的影响[J]. 船海工程, 2016, 45(6): 81–84, 88. SHI J, FENG X D, LI G C, et al. Influence of the inlet length upon hydrodynamics performance for ship's water jet propulsion[J]. Ship & Ocean Engineering, 2016, 45(6): 81–84, 88 (in Chinese).
[4]	李臣, 束晓华, 赵春生. 基于流道倾角对喷水推进泵流道性能的影响研究[J]. 舰船科学技术, 2017, 39(9): 49–53. LI C, SHU X H, ZHAO C S. Research on the influence of waterjet duct performance based on inclination of waterjet duct[J]. Ship Science and Technology, 2017, 39(9): 49–53 (in Chinese).
[5]	汲国瑞, 蔡佑林, 李宁, 等. 喷水推进进口流道唇口参数对出口不均匀度和驻点位置影响分析[J]. 中国造船, 2016, 57(4): 109–115. JI G R, CAI Y L, LI N, et al. Influence of lip parameters on non-uniformity and stagnation point at inlet duct of waterjet propulsion[J]. Shipbuilding of China, 2016, 57(4): 109–115 (in Chinese).
[6]	杨福芹, 王学志, 姜敬伟, 等. 船舶喷水推进器进水流道的参数化分析[J]. 机电工程, 2109, 36(11): 1212–1215. YANG F Q, WANG X Z, JIANG J W, et al. Parametric analysis of the inlet duct in the marine waterjet propulsor[J]. Journal of Mechanical & Electrical Engineering, 2109, 36(11): 1212–1215 (in Chinese).
[7]	ITTC. Uncertainty analysis in CFD, verification and validation methodology and procedures: 7.5-03-01-01[R]. ITTC-Recommended Procedures and Guidelines, 2021.
[8]	ITTC. Uncertainty analysis in CFD, examples for resistance and flow: 7.5-03-02-01[R]. ITTC-Recommended Procedures and Guidelines, 1999.
[9]	ITTC. The specialist committee on validation of waterjet test procedures, final report and recommendations to the 24th ITTC[R]. Proceedings of the 24^th ITTC, 2005.
