近爆载荷作用下液舱的吸能研究

李思宇; 李晓彬; 赵鹏铎; 胡翔

doi:10.3969/j.issn.1673-3185.2017.01.015

近爆载荷作用下液舱的吸能研究

doi: 10.3969/j.issn.1673-3185.2017.01.015

1.
武汉理工大学交通学院, 湖北武汉 430063
2.
海军装备研究院, 北京 100073

基金项目:

国家自然科学基金资助项目 11302259

非线性力学国家重点实验室开放基金资助项目 LNM201505

详细信息

作者简介:
李思宇, 男, 1991年生, 硕士生。研究方向:结构安全与可靠性。E-mail:596540197@qq.com

通信作者:
李晓彬(通信作者), 男, 1971年生, 博士, 教授。研究方向:结构安全与可靠性。E-mail:lxbmark@163.com

中图分类号: U661.4;O38
计量
- 文章访问数: 482
- HTML全文浏览量: 151
- PDF下载量: 220
- 被引次数: 0
出版历程
- 收稿日期: 2016-07-04
- 网络出版日期: 2016-12-28
- 刊出日期: 2017-01-07

Research into energy absorption of liquid cabin subjected to close-range explosion

LI Siyu^1
,,
LI Xiaobin^{1
, ,},
ZHAO Pengduo²,
HU Xiang¹

1.
School of Transportation, Wuhan University of Technology, Wuhan 430063, China
2.
Naval Academy of Armament, Beijing 100073, China

近爆载荷作用下液舱的吸能研究由李思宇，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 为研究近距爆炸载荷作用下液舱各部分的吸能情况，根据实验建立数值仿真模型，研究在有无液体、不同厚度比和不同水层厚度条件下舱室变形和各部分吸能的占比情况。结果表明，液体介质的存在改变了液舱的吸能模式，液舱总吸能主要受到舱室外壁厚度和水层厚度的影响，厚度比和水层厚度的变化对舱壁变形模式和爆炸能量在液舱各部分的占比有一定影响。对液舱各部分吸能机理的阐述，可作为液舱设计的参考依据。
- 近距爆炸 /
- 防护液舱 /
- 冲击 /
- 吸能
Abstract: In order to study the energy absorption of different parts of a liquid cabin under a close-range explosion, a fluid-structure coupling model is built on the basis of experiments, and the deformation of the bulkhead and energy absorption ratio of different parts of the liquid cabin are analyzed, in which the influence of the water, bulkhead thickness ratio and water thickness are also discussed. The results show that the existence of a liquid medium can change the energy absorption model of a cabin. The total energy absorption is mainly affected by the front bulkhead thickness and water thickness, and alterations to the bulkhead thickness ratio or water thickness can also affect the deformation model of the bulkhead and energy absorption ratio of different parts of the cabin. A logical explanation of the energy absorption mechanisms of the liquid cabin is proposed, and some useful suggestions for designs are given.
- close-range explosion /
- warship protective tank /
- shock /
- energy absorption

HTML全文

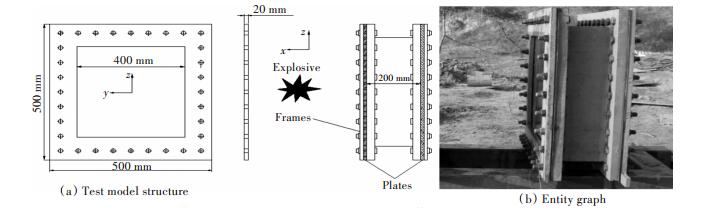

图 1 实验模型结构和实体图

Figure 1. Test model structure and entity graph

下载: 全尺寸图片幻灯片

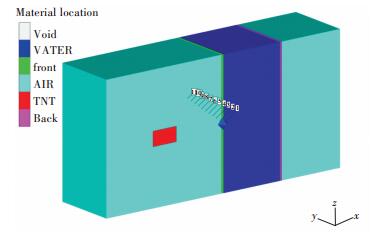

图 2 数值仿真模型

Figure 2. Simulation model

下载: 全尺寸图片幻灯片

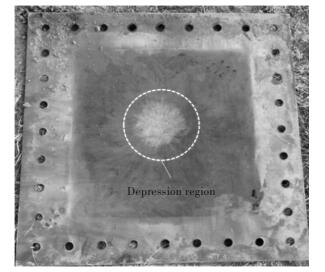

图 3 液舱外壁变形

Figure 3. Deformation of front bulkhead

下载: 全尺寸图片幻灯片

图 4 仿真与实验对比

Figure 4. Contrast of simulation and experimental results

下载: 全尺寸图片幻灯片

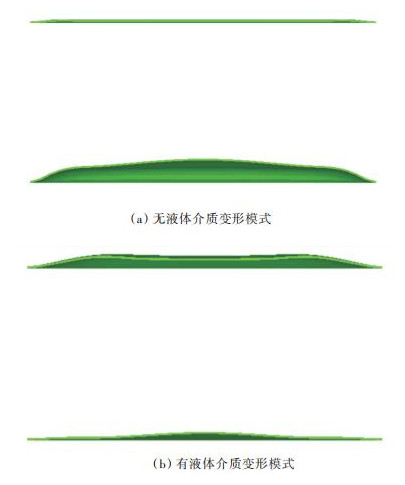

图 5 有无液体介质舱壁变形模式

Figure 5. Deformation mode of bulkhead

下载: 全尺寸图片幻灯片

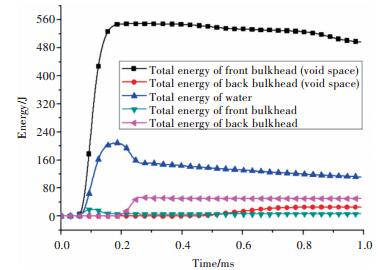

图 6 能量转化

Figure 6. Energy transformation

下载: 全尺寸图片幻灯片

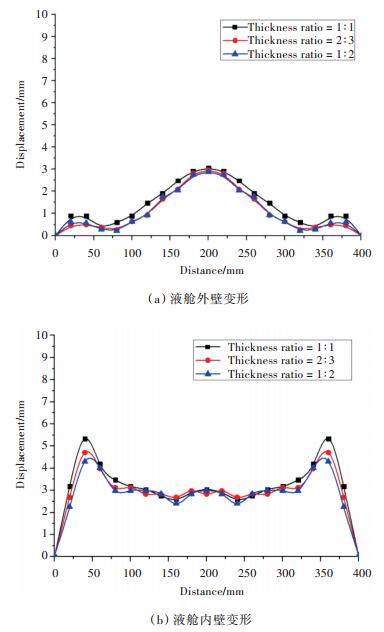

图 7 不同厚度比液舱舱壁变形对比

Figure 7. Contrast of deformation mode of bulkheads

下载: 全尺寸图片幻灯片

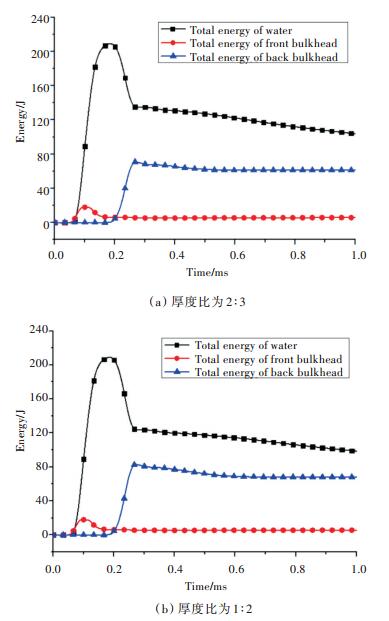

图 8 不同厚度比液舱吸能对比

Figure 8. Contrast of energy absorption mode of liquid tank

下载: 全尺寸图片幻灯片

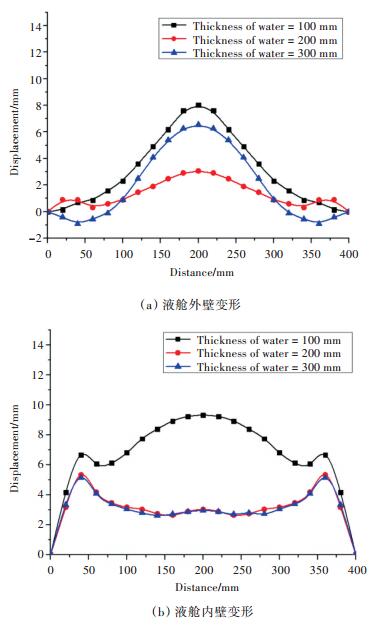

图 9 不同水层厚度的液舱舱壁变形对比

Figure 9. Contrast of deformation mode of bulkhead

下载: 全尺寸图片幻灯片

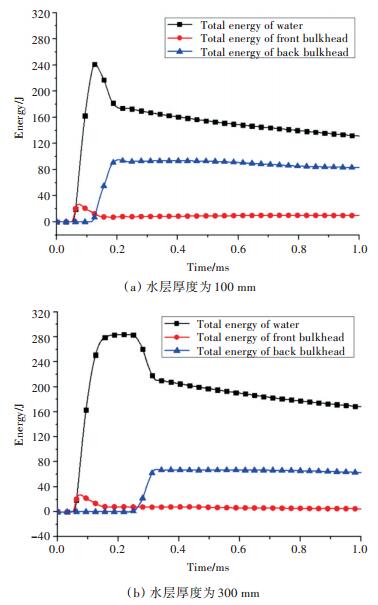

图 10 不同水层厚度的液舱吸能对比

Figure 10. Contrast of energy absorption mode of liquid tank

下载: 全尺寸图片幻灯片

表 1 模型参数

Table 1. Model parameters

ρ/(kg·m^-3)	E/MPa	A	B	n	c	m
7 850	210	249.2	889	0.3	0.746	0.094

下载: 导出CSV

参考文献(11)

[1]	吉田隆.旧海军舰船の爆弹被害损伤例いつぃて[J].船の科学, 1990, 43(5):69-73.
[2]	吉田隆.旧海軍艦船の爆弾被害損傷例について--直撃爆弾および至近爆弾による損傷[J].船の科学, 1990, 43(6):62-65.
[3]	朱锡, 张振华, 刘润泉, 等.水面舰艇舷侧防雷舱结构模型抗爆试验研究[J].爆炸与冲击, 2004, 24(2):133-139. http://www.cqvip.com/QK/94778X/200402/9394791.html ZHU X, ZHANG Z H, LIU R Q, et al. Experimental study on the explosion resistance of cabin near ship-board of surface warship subjected to underwater con-tact explosion[J]. Explosion and Shock Waves, 2004, 24(2):133-139(in Chinese). http://www.cqvip.com/QK/94778X/200402/9394791.html
[4]	张振华, 朱锡, 黄玉盈, 等.水面舰艇舷侧防雷舱结构水下抗爆防护机理研究[J].船舶力学, 2006, 10(1):113-119. http://www.docin.com/p-154777123.html ZHANG Z H, ZHU X, HUANG Y Y, et al. Theoreti-cal research on the defendence of cabin near shipboard of surface warship subjected to underwater contact ex-plosion[J]. Journal of Ship Mechanics, 2006, 10(1):113-119(in Chinese). http://www.docin.com/p-154777123.html
[5]	杜志鹏, 李晓彬, 夏利娟, 等.舰船防护水舱在接近爆炸载荷作用下响应的理论研究[J].船舶力学, 2007, 11(1):119-127. DU Z P, LI X B, XIA L J, et al. Theory research on the response of the warship protective tank under near-by explosion[J]. Journal of Ship Mechanics, 2007, 11(1):119-127(in Chinese).
[6]	张伦平, 张晓阳, 潘建强, 等.多舱防护结构水下接触爆炸吸能研究[J].船舶力学, 2011, 15(8):921-929. http://www.docin.com/p-791920202.html ZHANG L P, ZHANG X Y, PAN J Q, et al. Energy re-search about multicamerate defence structure subject-ed to underwater contact explosion[J]. Journal of Ship Mechanics, 2011, 15(8):921-929(in Chinese). http://www.docin.com/p-791920202.html
[7]	张婧, 施兴华, 王善.水下接触爆炸作用下舰船防护结构中液舱影响仿真分析[J].天津大学学报, 2008, 41(10):1238-1244. http://www.cqvip.com/qk/91541X/200810/28348166.html ZHANG J, SHI X H, WANG S. Numerical simulation analysis of liquid cabin of ship defensive structure sub-jected to underwater contact explosions[J]. Journal of Tianjin University, 2008, 41(10):1238-1244(in Chinese). http://www.cqvip.com/qk/91541X/200810/28348166.html
[8]	唐廷, 朱锡, 侯海量, 等.大型水面舰艇防雷舱结构防护机理数值仿真[J].哈尔滨工程大学学报, 2012, 33(2):142-149. http://www.cqvip.com/QK/92273A/201202/41296851.html TANG T, ZHU X, HOU H L, et al. Numerical simula-tion study on the defense mechanism of a cabin near the shipboard for large surface vessels[J]. Journal of Harbin Engineering University, 2012, 33(2):142-149(in Chinese). http://www.cqvip.com/QK/92273A/201202/41296851.html
[9]	HENRYCH J. The dynamics of explosion and its use[M]. Amsterdam:Elsevier Scientific Pub. Co., 1979:218.
[10]	徐双喜.大型水面舰船舷侧复合多层防护结构研究[D].武汉:武汉理工大学, 2010. XU S X. Research on the composite and multilayer de-fensive broadside structure for large surface ship[D]. Wuhan:Wuhan University of Technology, 2010(in Chinese).
[11]	陈长海, 朱锡, 侯海量, 等.近距空爆载荷作用下固支方板的变形及破坏模式[J].爆炸与冲击, 2012, 32(4):368-375. http://www.docin.com/p-1309321765.html CHEN C H, ZHU X, HOU H L, et al. Deformation and failure modes of clamped square plates under close-range air blast loads[J]. Explosion and Shock Waves, 2012, 32(4):368-375(in Chinese). http://www.docin.com/p-1309321765.html
