修正内聚区长度计算公式在冰I型裂纹扩展中的应用

倪宝玉; 徐莹; 黄其; 尤嘉; 薛彦卓

doi:10.19693/j.issn.1673-3185.02701

修正内聚区长度计算公式在冰I型裂纹扩展中的应用

doi: 10.19693/j.issn.1673-3185.02701

倪宝玉^1, ,,
徐莹²,
黄其^3,,
尤嘉^1,,
薛彦卓^1,

1.
哈尔滨工程大学船舶工程学院，黑龙江哈尔滨 150001
2.
中国船舶及海洋工程设计研究院，上海 200011
3.
中国船级社江苏分社，江苏南京 210011

基金项目: 国家自然科学基金资助项目(52192693，52192690，51979051，51979056)

详细信息

作者简介:
倪宝玉，男，1986年生，博士，教授。研究方向：冰水船耦合运动学。E-mail：nibaoyu@hrbeu.edu.cn

徐莹，女，1991年生，博士，工程师

黄其，男，1994年生，硕士，助理工程师。研究方向：冰载荷。E-mail：qhuang@ccs.org.cn

尤嘉，男，1997年生，硕士生。研究方向：冰与结构物相互作用。E-mail：you20150122@hrbeu.edu.cn

薛彦卓，男，1978年生，博士，教授。研究方向：极地船舶设计及制造。E-mail：xueyanzhuo@hrbeu.edu.cn

通信作者:
倪宝玉

中图分类号: U661.1
计量
- 文章访问数: 638
- HTML全文浏览量: 184
- PDF下载量: 150
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-14
- 修回日期: 2022-04-07
- 网络出版日期: 2022-05-24
- 刊出日期: 2022-06-30

Application of improved cohesive zone length formula in ice mode I crack propagation

NI Baoyu^{1
, ,},
XU Ying²,
HUANG Qi^3
,,
YOU Jia^1
,,
XUE Yanzhuo^1
,

1.
College of Shipbuilding Engineering, Harbin Engineering University, Harbin 150001, China
2.
Marine Design and Research Institute of China, Shanghai 200011, China
3.
Jiangsu Branch of China Classification Society, Nanjing 210011, China

修正内聚区长度计算公式在冰I型裂纹扩展中的应用由倪宝玉，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 目的内聚区长度是处于破坏边缘的内聚力单元长度与其连接的其他内聚力单元长度之和，决定了网格的最大尺寸。精确估算内聚区长度并合理划分网格是影响计算精度的重要因素。方法为此，基于J积分的部分假设和已有的研究成果，在原有的内聚区长度计算公式中增加关于长厚比的修正函数，然后将修正后的内聚区长度计算公式应用于冰力学模型，再基于有限元法建立双悬臂梁数值模型进行模拟，并与试验结果进行对比，以验证修正后内聚区长度计算公式的精确性。结果研究表明，在一个内聚区长度内至少存在4个内聚力单元才能较精确地描述断裂过程。相关结果应用于三点弯曲试验模型模拟的结果显示，断裂点的极限载荷误差为2.9%且在合理范围内。结论修正后的内聚区长度公式更适用于冰材料。
- 冰力学 /
- 内聚力单元法 /
- 内聚区长度 /
- 网格划分 /
- 三点弯曲试验
Abstract: Objectives The cohesive zone length is the sum of the cohesive element length at the failure edge and the lengths of the other cohesive elements connected to it. The cohesive zone length determines the maximum size of the mesh. Therefore, the accurate estimation of cohesive zone length and reasonable mesh division are important factors affecting calculation accuracy. Methods Based on several J-integral assumptions and existing research results, a modified function on length thickness ratio value is added to the original formula. The modified formula is then applied to an ice mechanics model. Based on the finite element method, a model of a double cantilever beam is established to verify the accuracy of the formula through comparison with the experimental results. Results The results show that there must be at least four cohesive elements in a cohesive zone length to describe the fracture process accurately. This conclusion is also applied to the numerical simulation of a three-point bending experiment. The error of the limit load is 2.9%, and that of the fracture point is within a reasonable range. Conclusion It is concluded that the modified cohesive zone length formula is more suitable for ice materials.
- ice mechanics /
- cohesive element method (CEM) /
- cohesive zone length /
- mesh division /
- three-point bending experiment

HTML全文

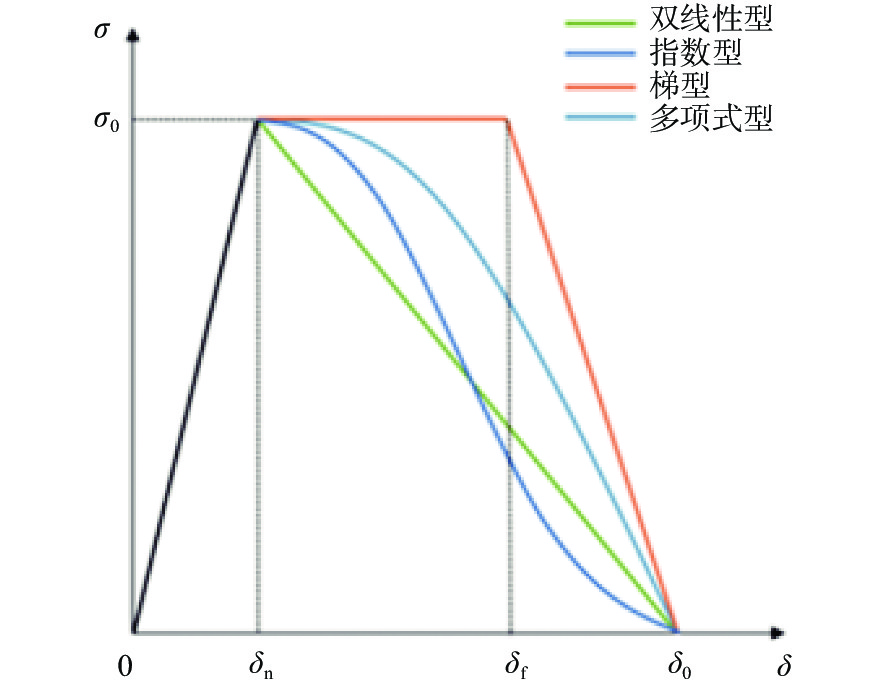

图 1 牵引力−分离曲线

Figure 1. Traction-separation curve

下载: 全尺寸图片幻灯片

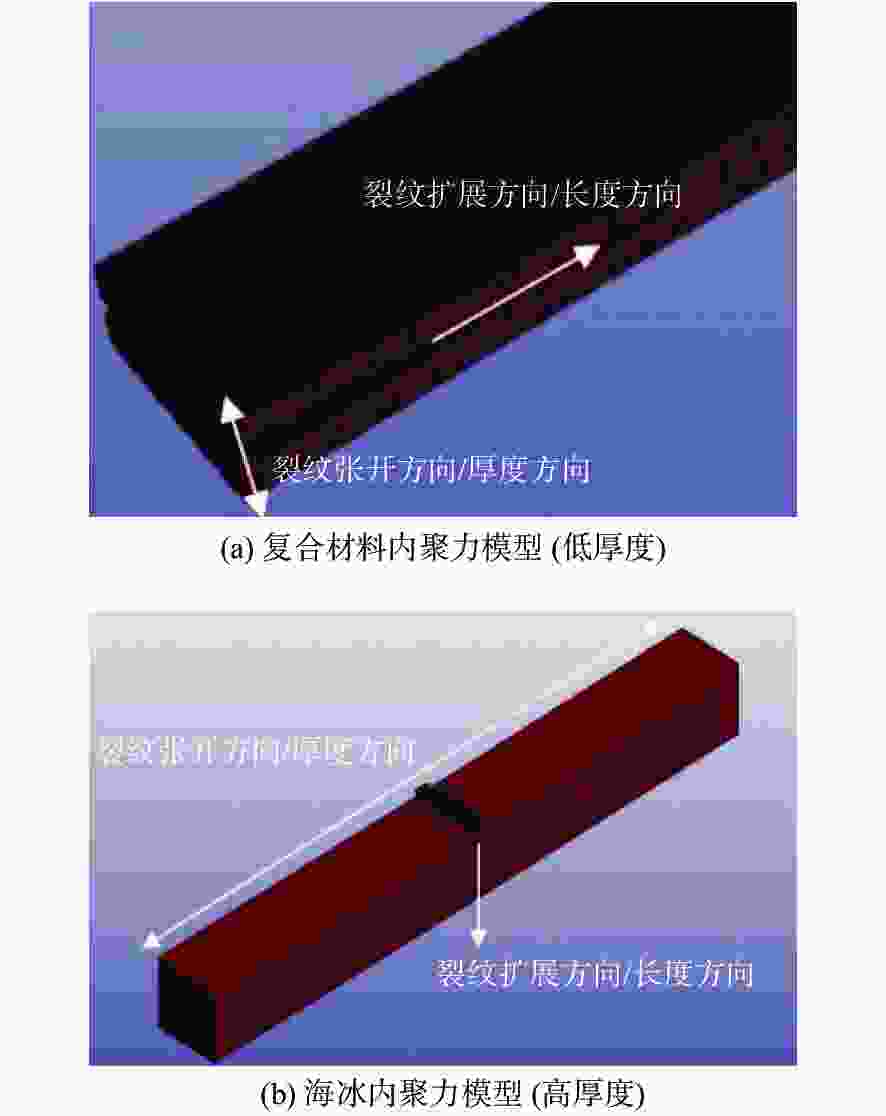

图 2 不同材料内聚力模型方向定义

Figure 2. Defined dircections of cohesion model of different materials

下载: 全尺寸图片幻灯片

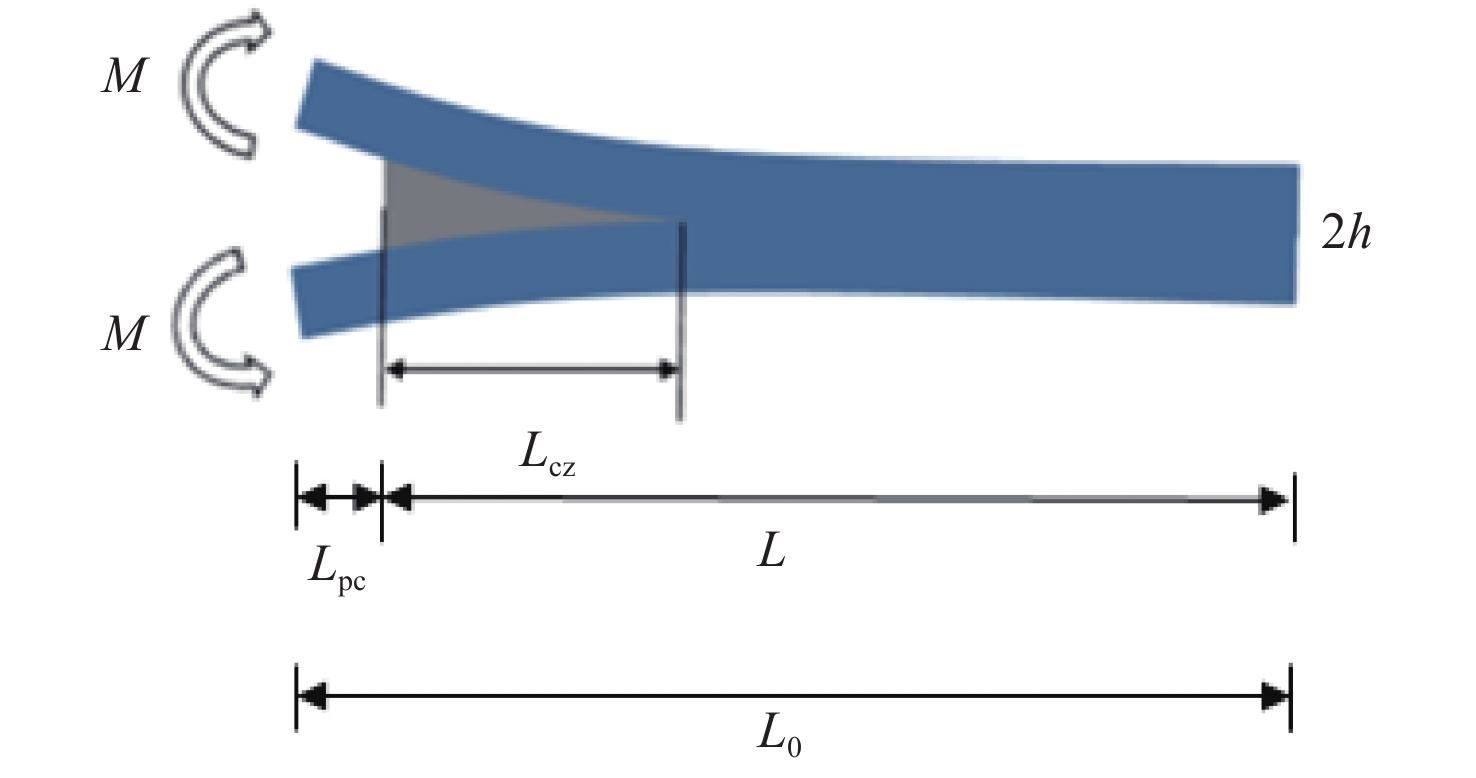

图 3 双悬臂梁撕裂示意图

Figure 3. Schematics of tearing of double cantilever beam

下载: 全尺寸图片幻灯片

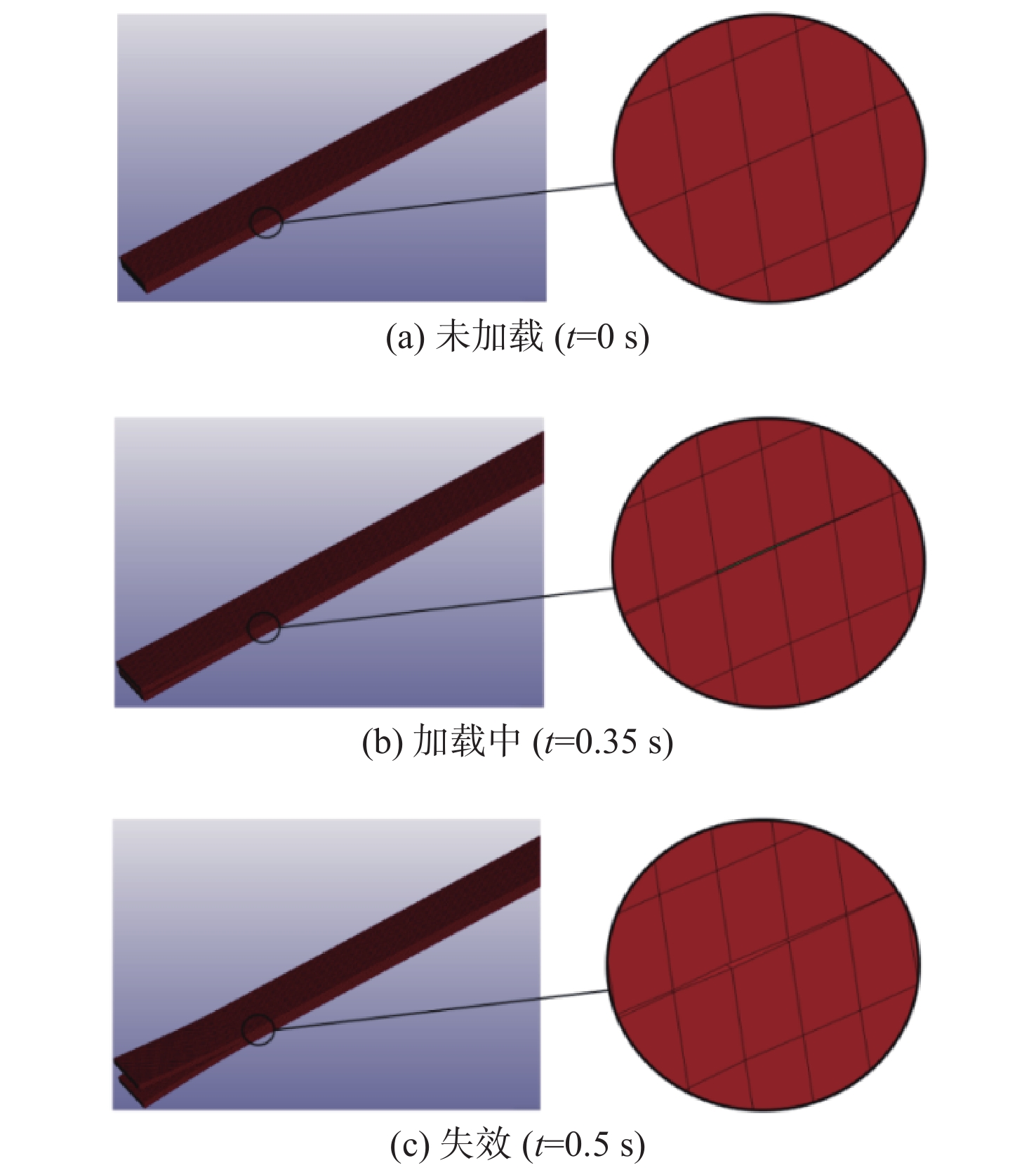

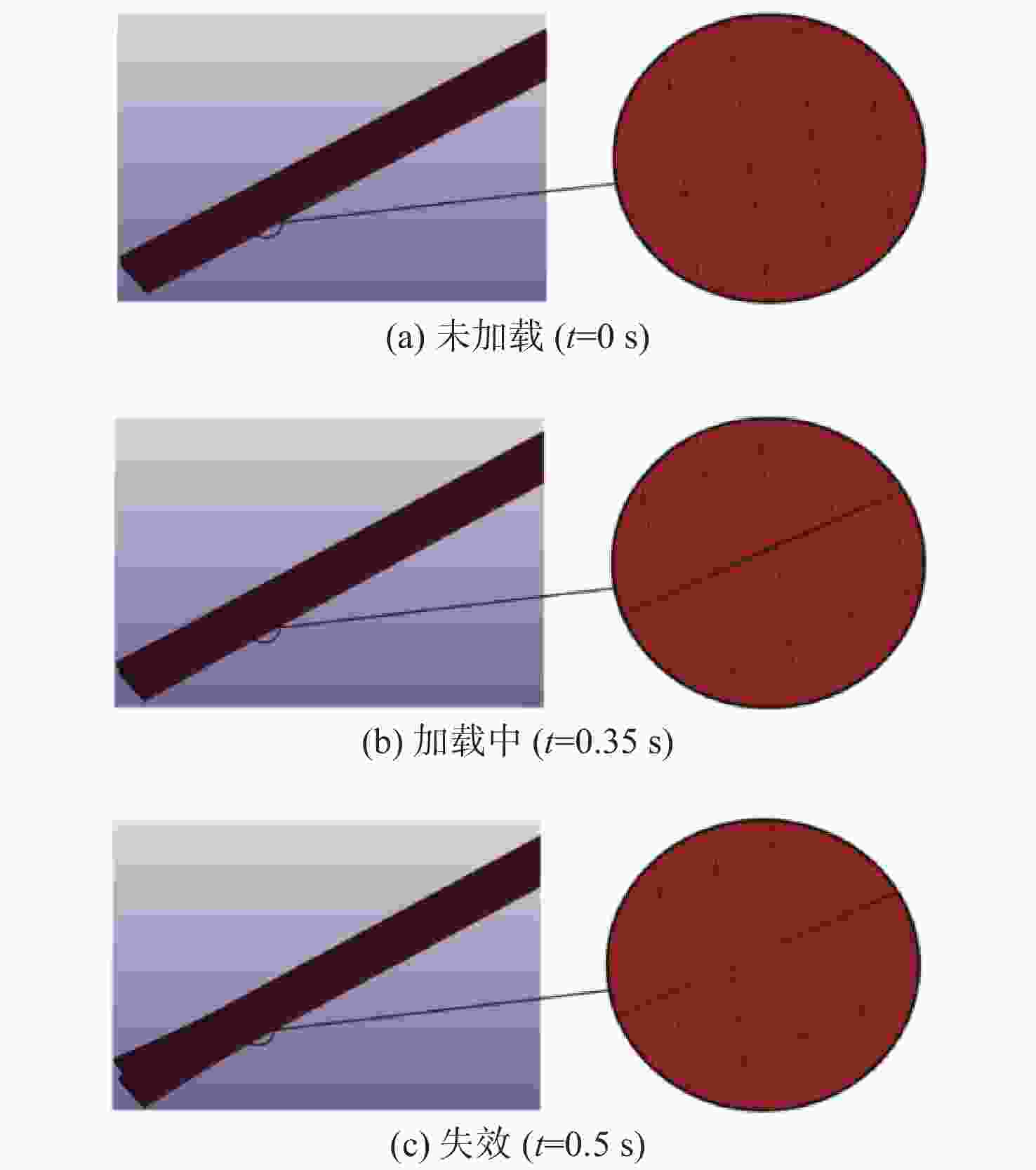

图 4 内聚力单元拉伸变形

Figure 4. Tensile deformation of cohesive element

下载: 全尺寸图片幻灯片

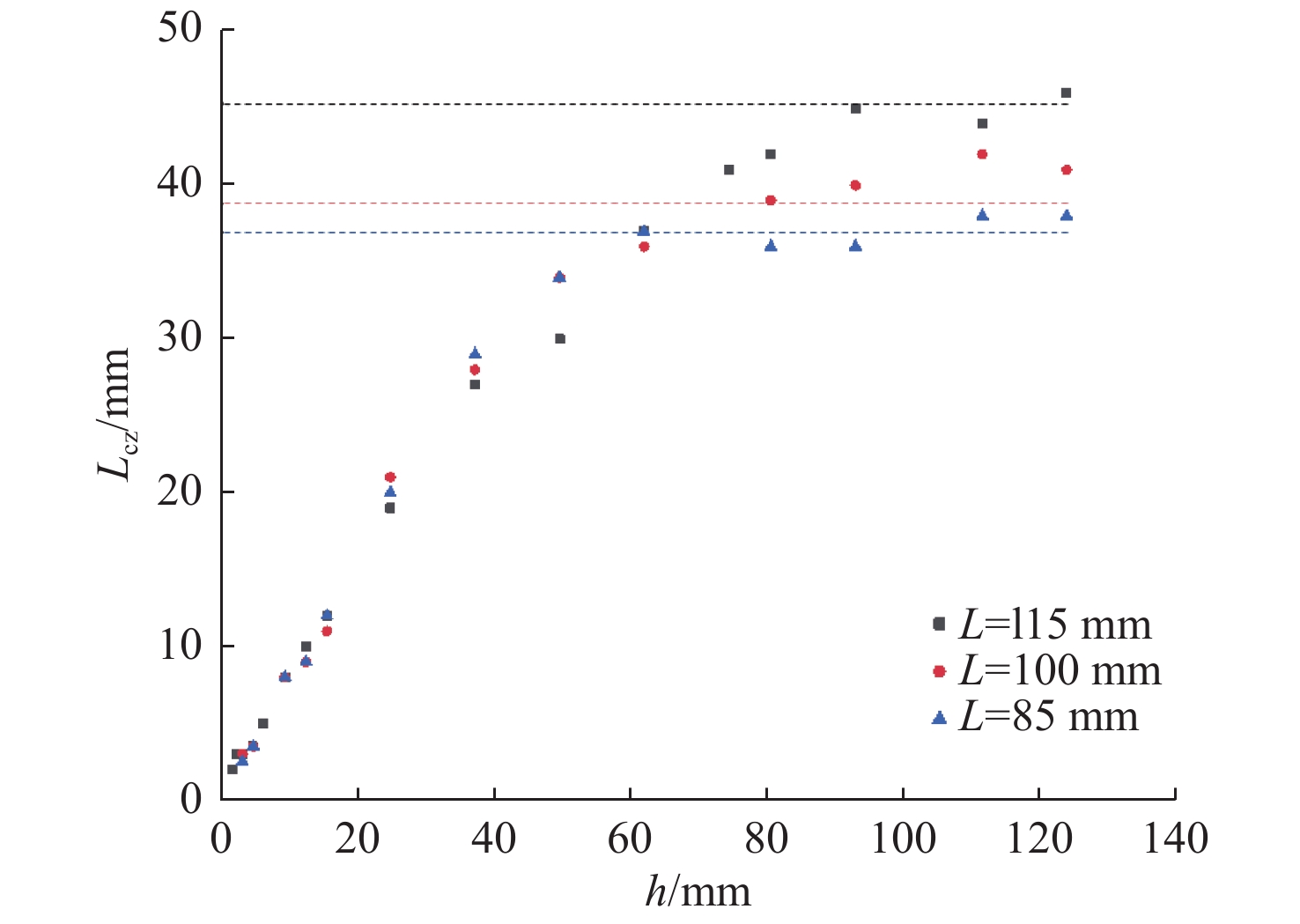

图 5 L_cz -h曲线

Figure 5. L_cz-h curve

下载: 全尺寸图片幻灯片

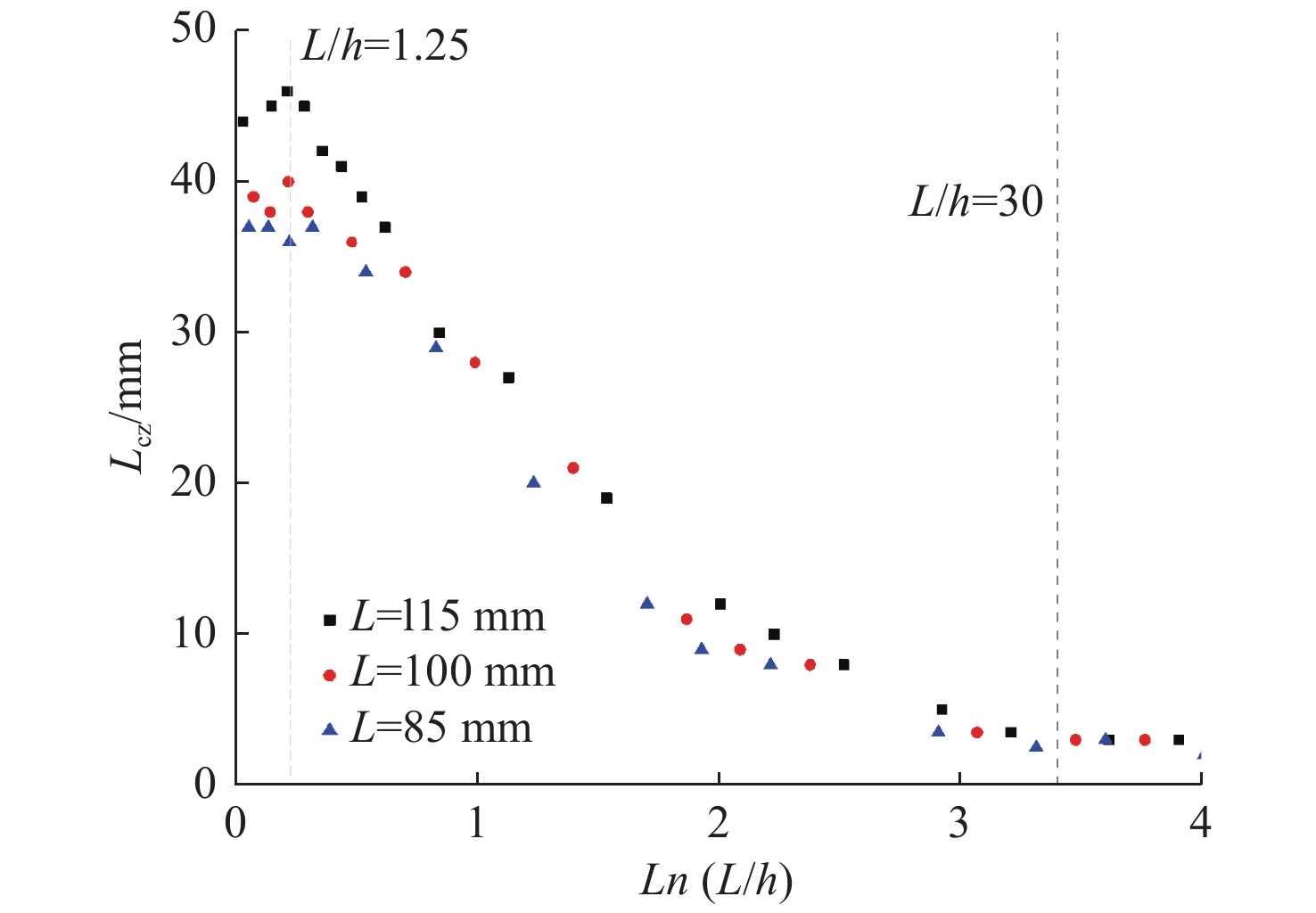

图 6 L_cz-Ln(L/h)曲线

Figure 6. L_cz-Ln((L/h) curve

下载: 全尺寸图片幻灯片

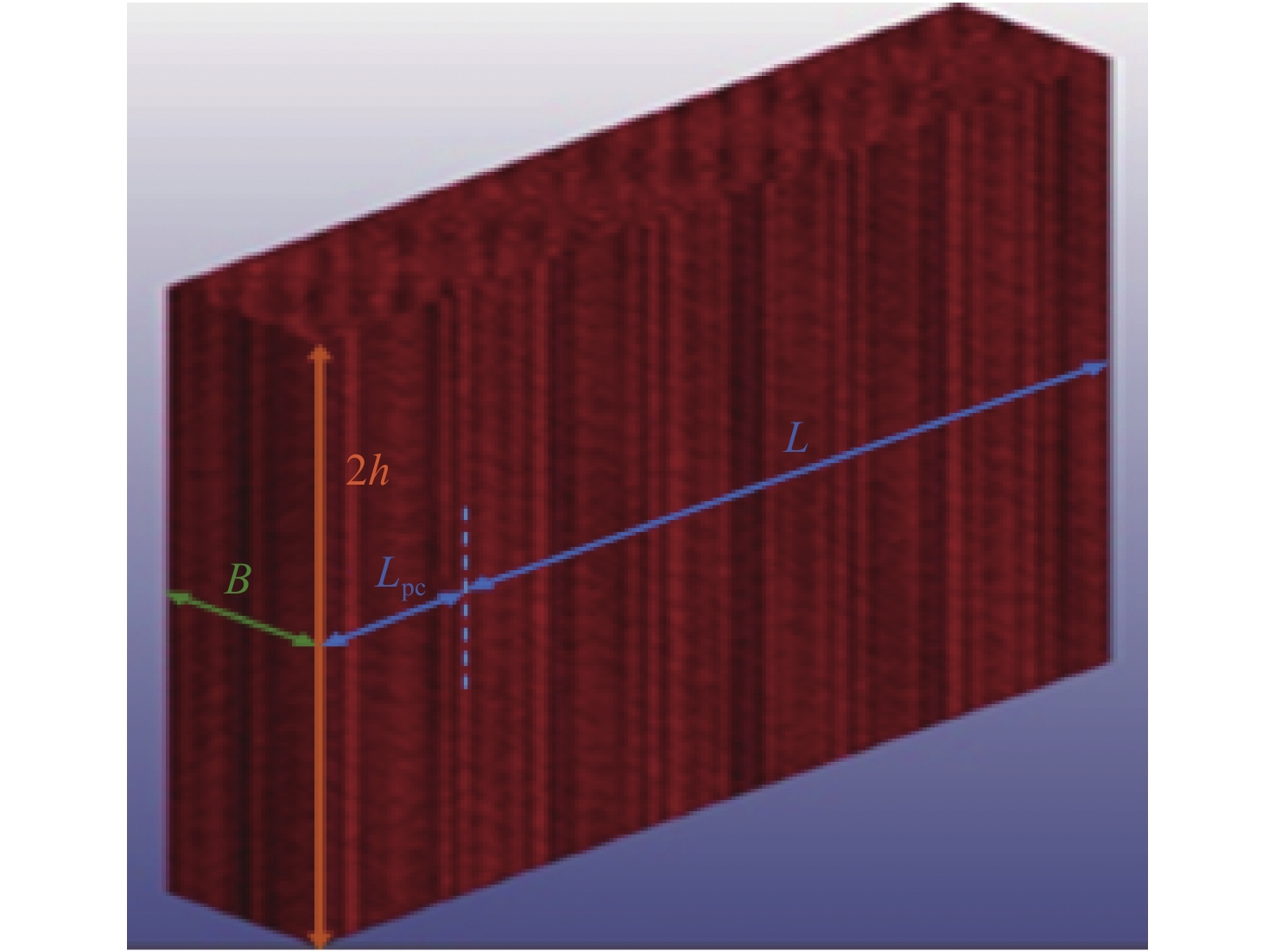

图 7 高厚度的双悬臂梁模型

Figure 7. Model of high-thickness double cantilever beam

下载: 全尺寸图片幻灯片

图 8 模拟结果和修正内聚区长度对比

Figure 8. Comparison of simulation results and modified cohesive zone length

下载: 全尺寸图片幻灯片

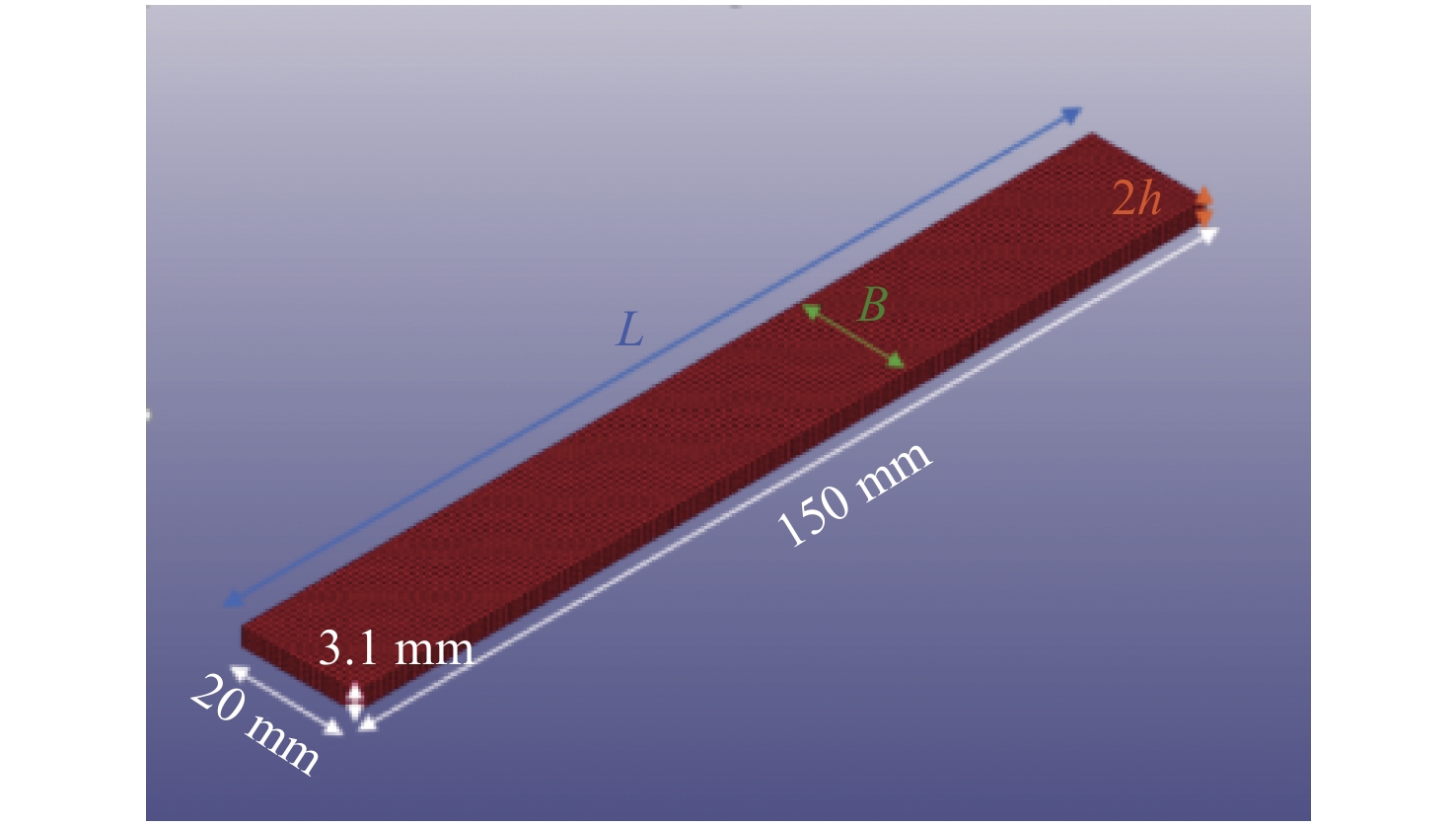

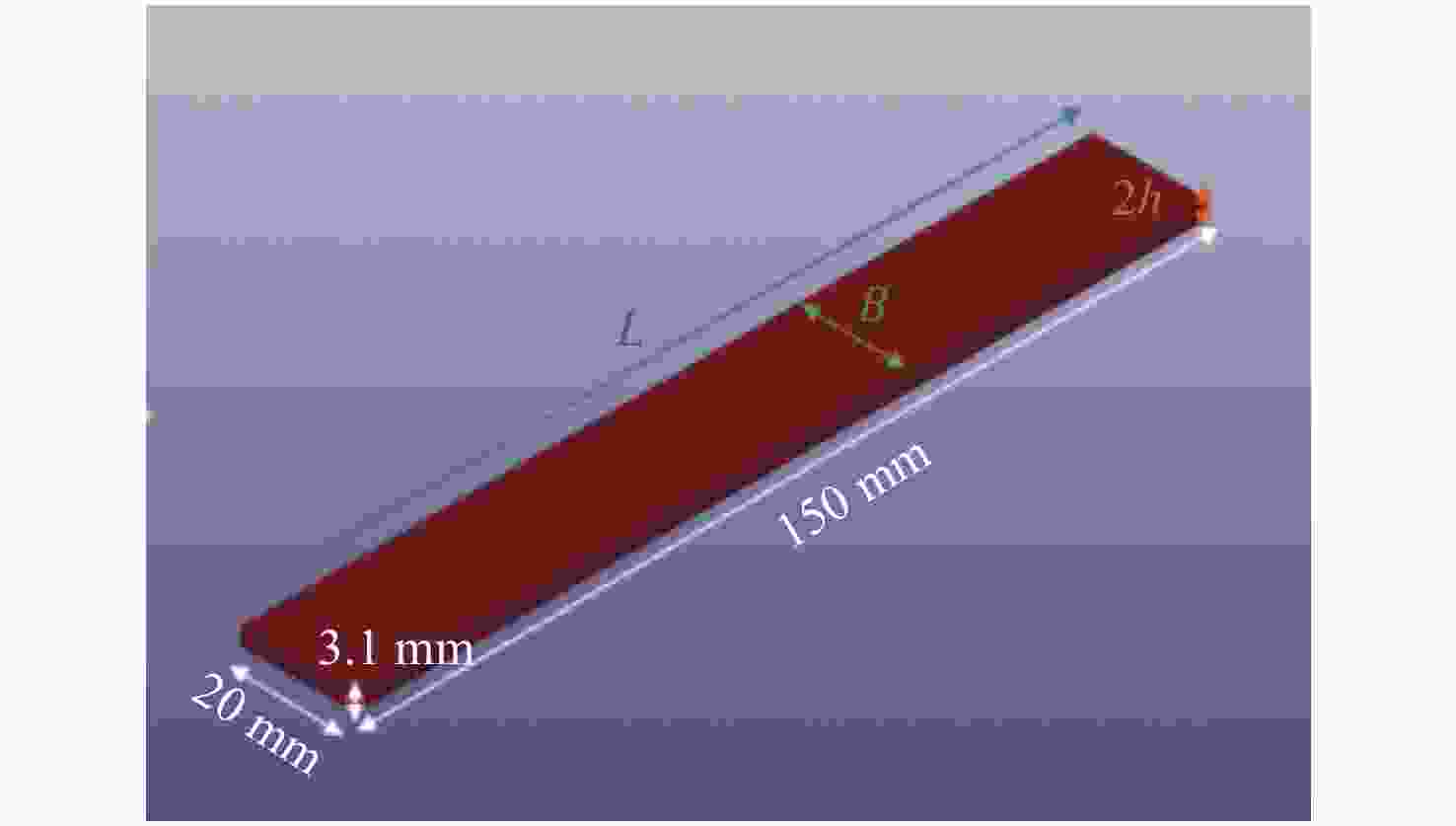

图 9 狭长双悬臂梁模型主尺度示意图

Figure 9. Schematics of main dimensions of narrow double cantilever beam model

下载: 全尺寸图片幻灯片

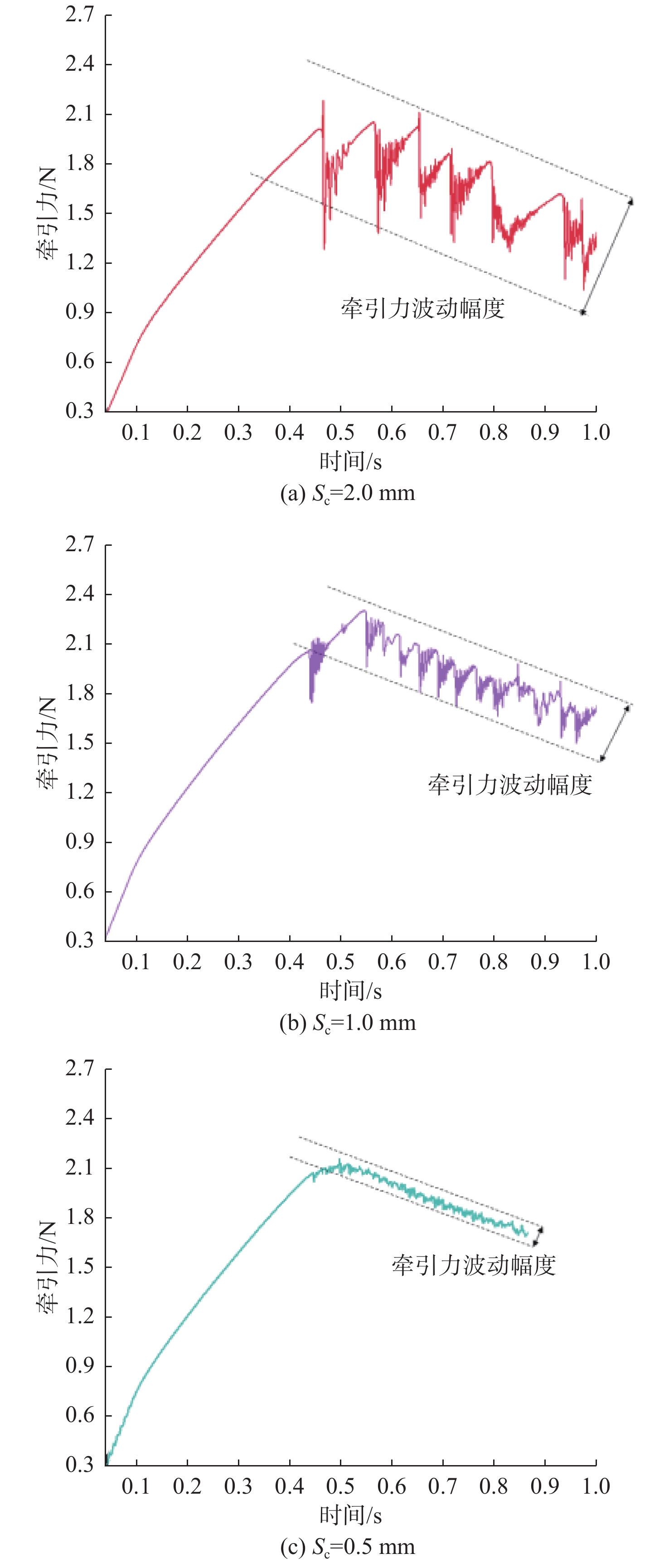

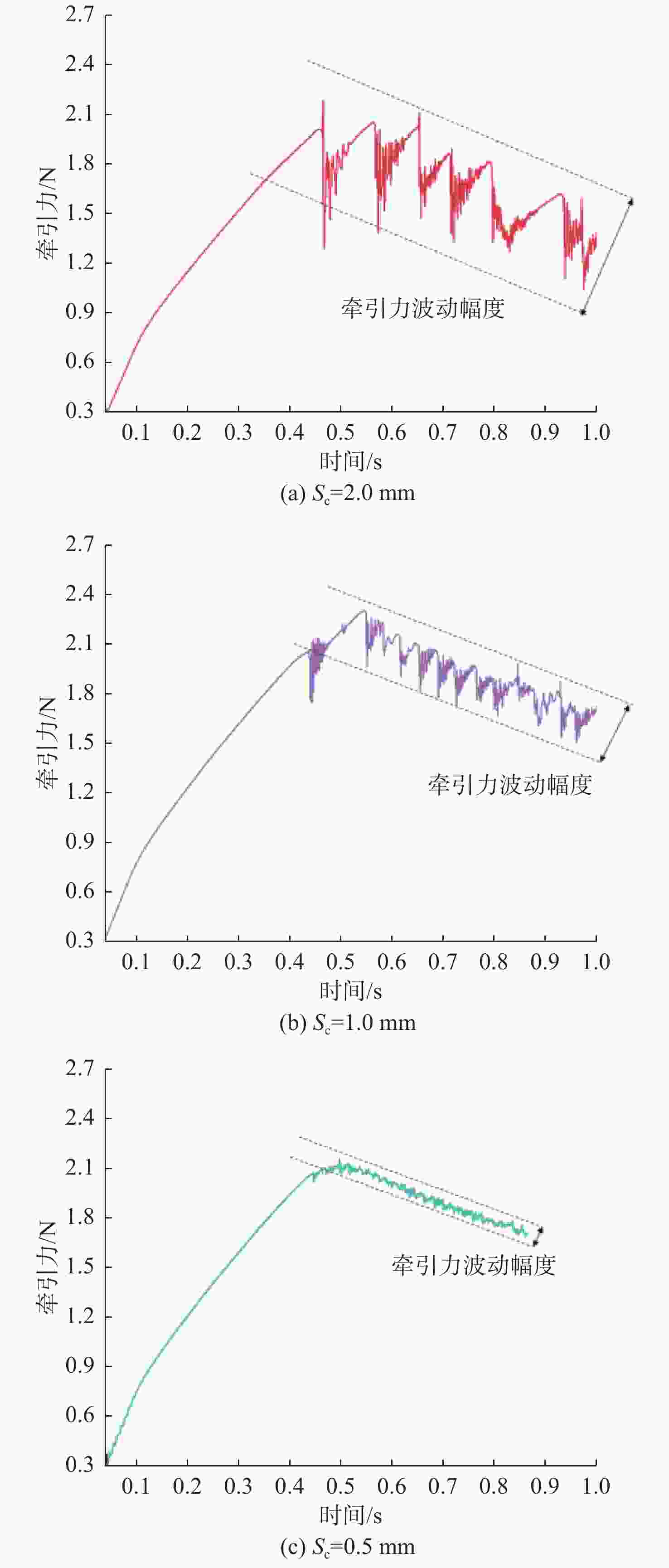

图 10 不同网格密度下内聚力单元牵引力−时间曲线

Figure 10. Traction-time curves of cohesive element with different grid densities

下载: 全尺寸图片幻灯片

图 11 冰试样模型主尺度示意图

Figure 11. Schematics of main dimensions of ice specimen

下载: 全尺寸图片幻灯片

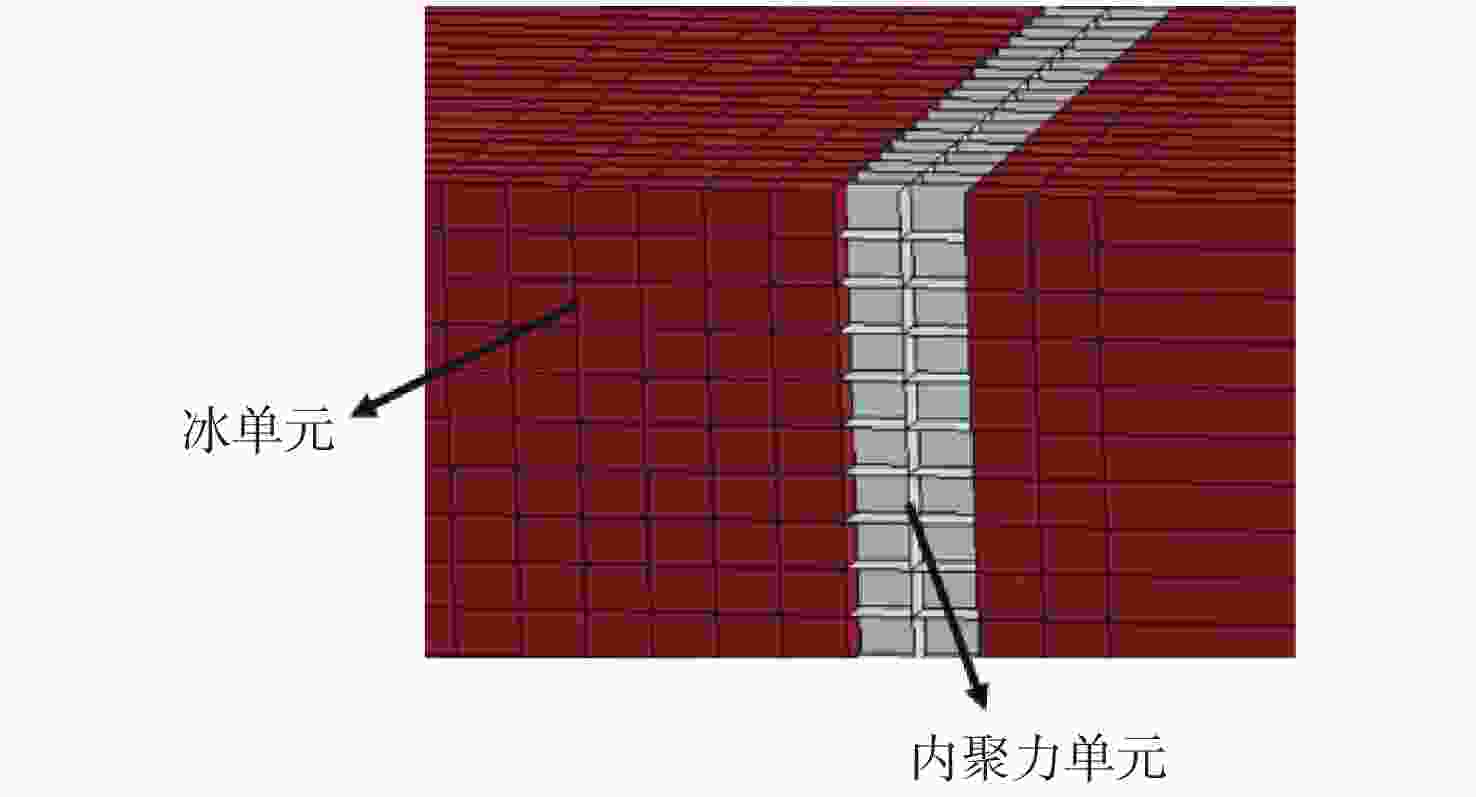

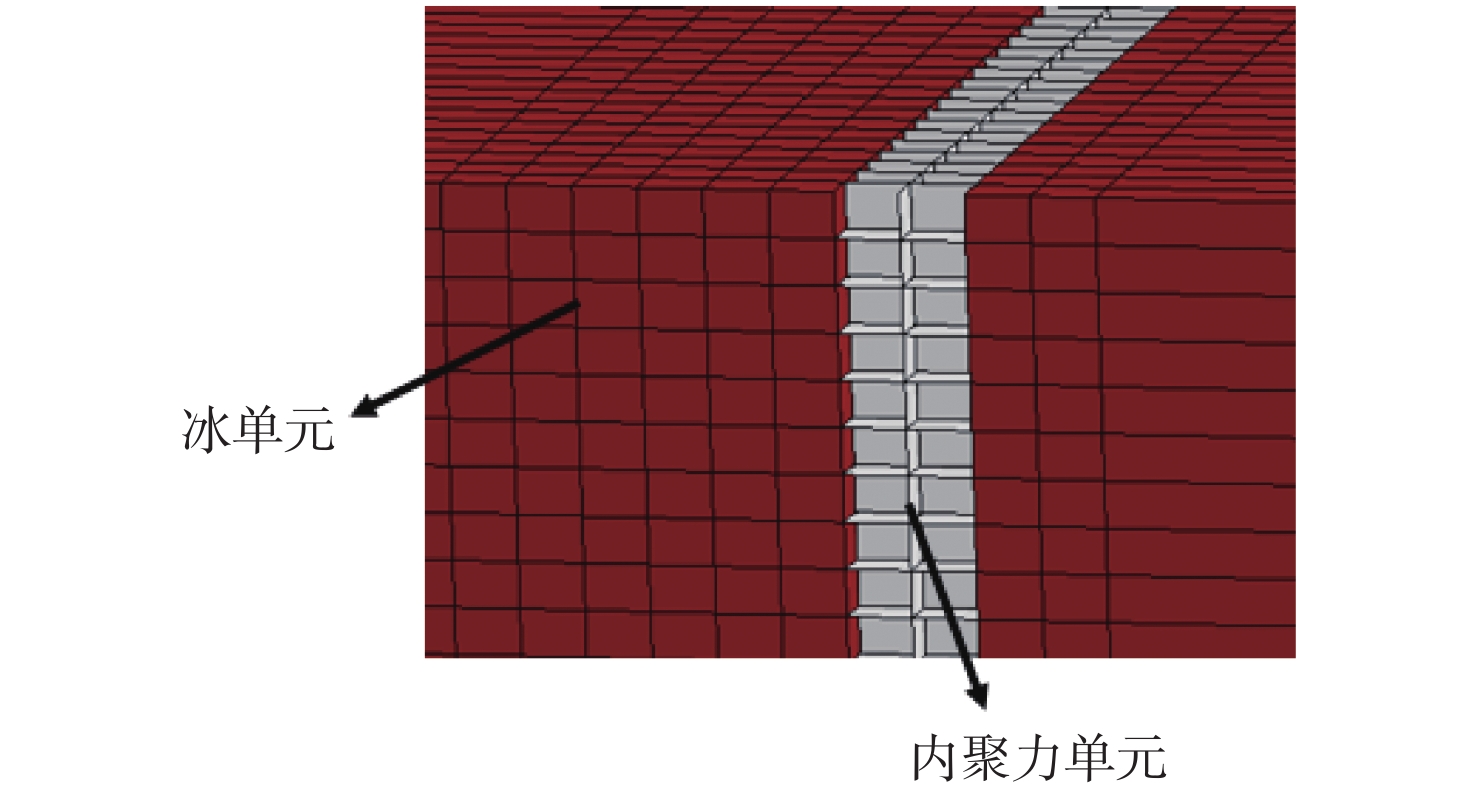

图 12 冰试样截面间内聚力单元

Figure 12. Cohesive element between ice sample sections

下载: 全尺寸图片幻灯片

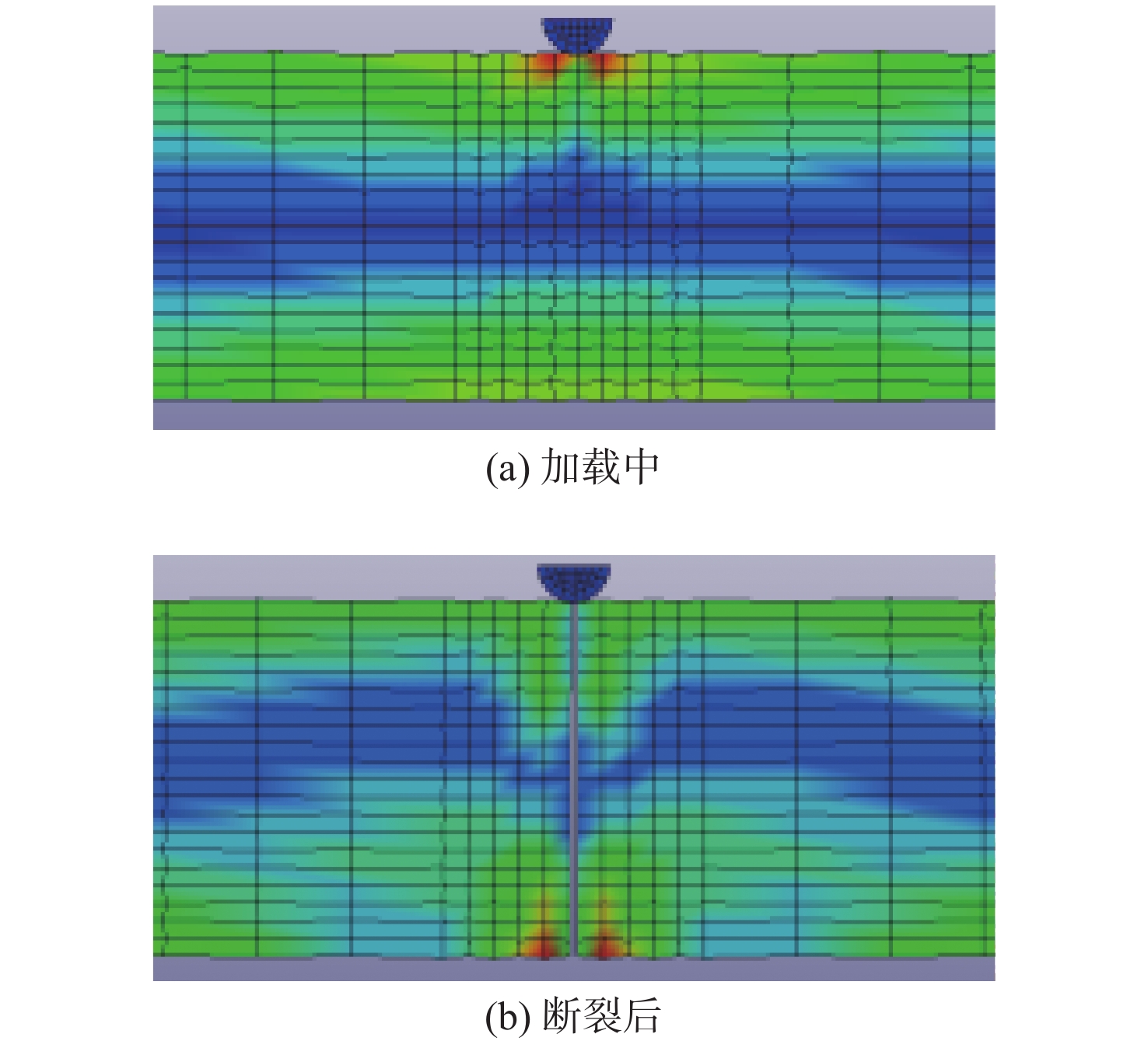

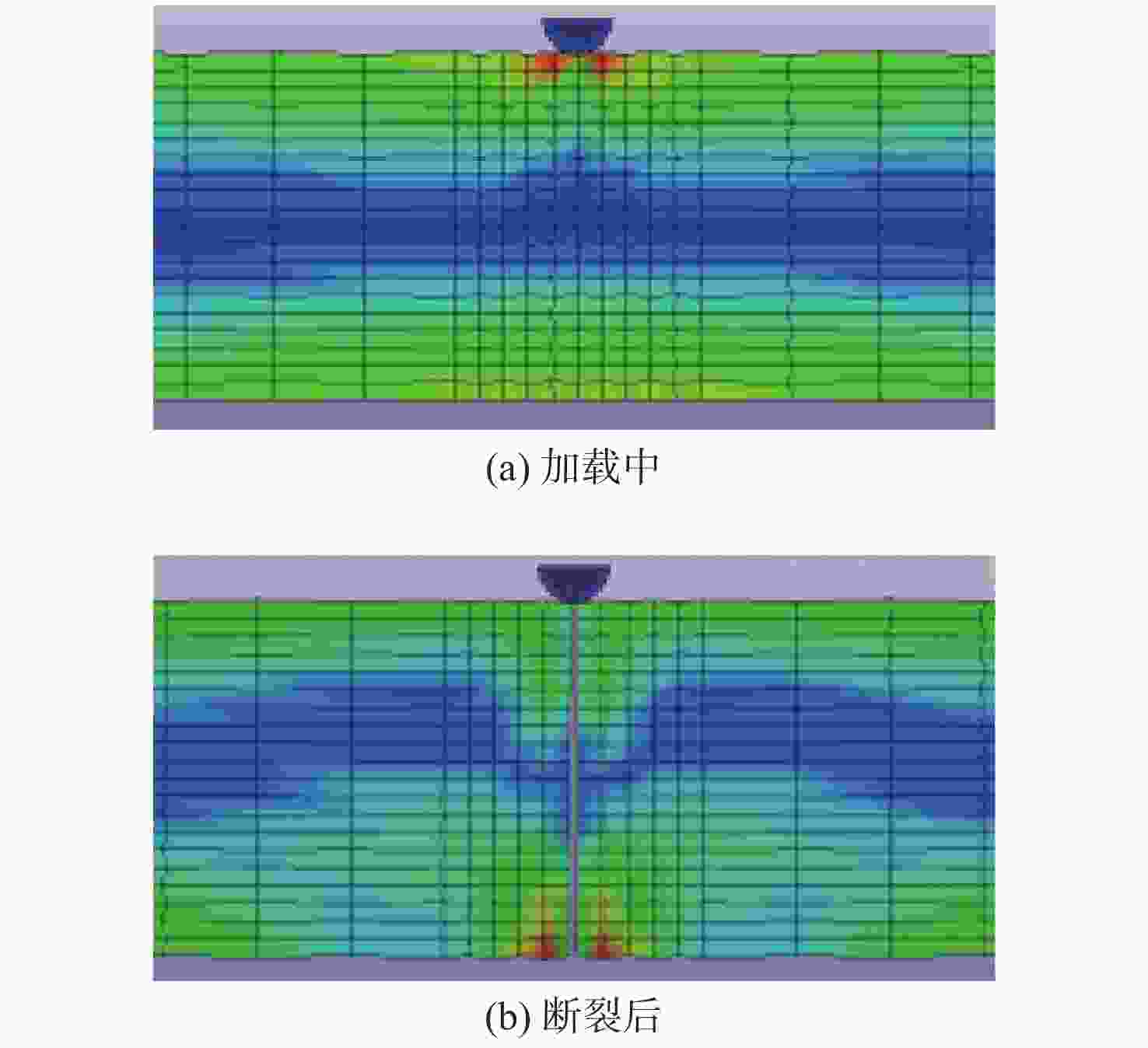

图 13 有限元模拟三点弯曲过程

Figure 13. Finite element simulations of three-point bending process

下载: 全尺寸图片幻灯片

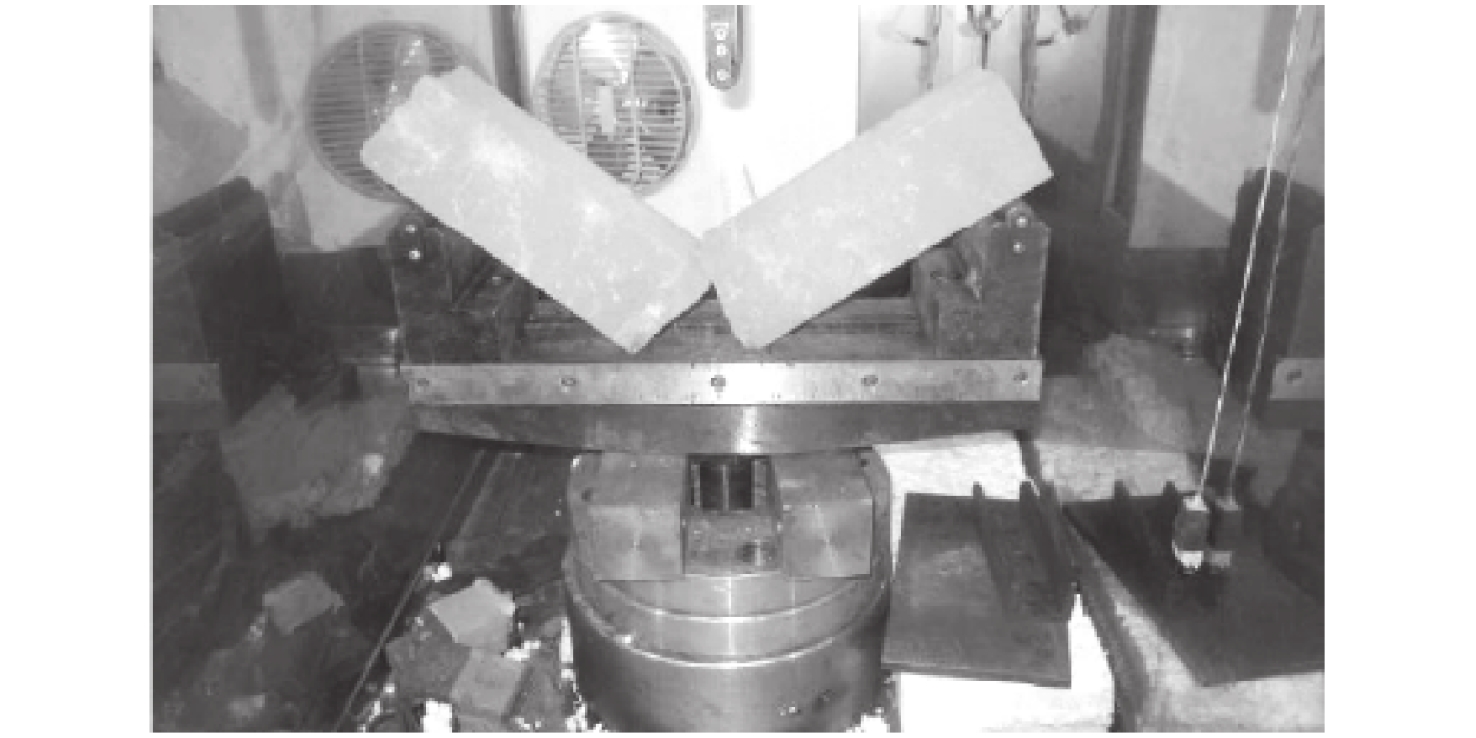

图 14 试验冰试样断裂^[28]

Figure 14. Fracture of experimental ice specimen^[28]

下载: 全尺寸图片幻灯片

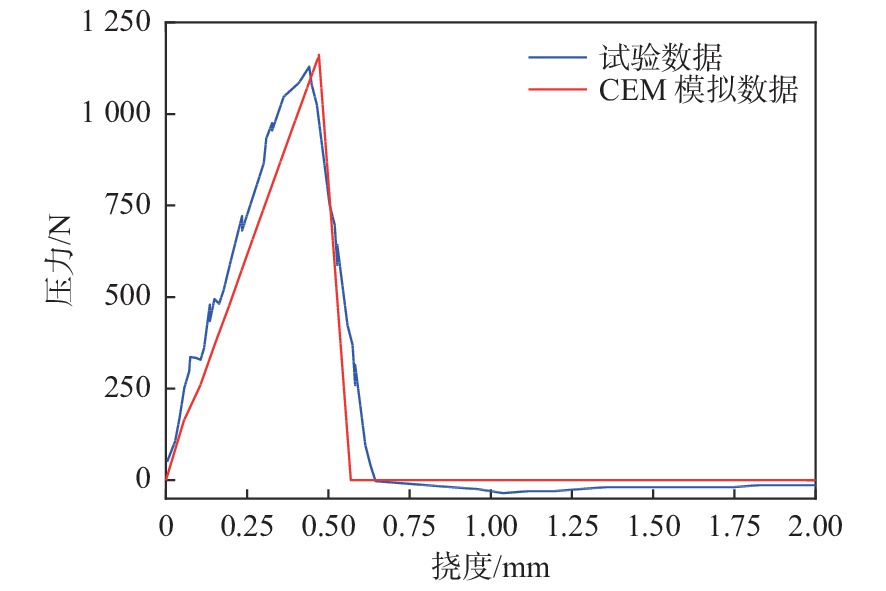

图 15 压力−挠度曲线
