基于“神威·太湖之光”的三维有限长方柱绕流直接数值模拟

张亚英; 吴乘胜; 王建春; 金奕星

doi:10.19693/j.issn.1673-3185.02595

基于“神威·太湖之光”的三维有限长方柱绕流直接数值模拟

doi: 10.19693/j.issn.1673-3185.02595

中国船舶科学研究中心，江苏无锡 214082

基金项目: “十四·五”水动力预研资助项目（50907070201）

详细信息

作者简介:
张亚英，男，1994年生，硕士，助理工程师

吴乘胜，男，1976年生，博士，研究员

王建春，男，1989年生，硕士，工程师

金奕星，男，1990年生，硕士，工程师

通信作者:
张亚英

中图分类号: U661.1
计量
- 文章访问数: 674
- HTML全文浏览量: 158
- PDF下载量: 78
- 被引次数: 0
出版历程
- 收稿日期: 2021-11-17
- 修回日期: 2022-04-03
- 网络出版日期: 2022-06-08
- 刊出日期: 2022-06-30

Direct numerical simulation of flow around a 3D finite square cylinder using the Sunway Taihu Light

China Ship Scientific Research Center, Wuxi 214082, China

基于“神威·太湖之光”的三维有限长方柱绕流直接数值模拟由张亚英，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 目的旨在探索基于国产处理器的异构超算平台在船舶水动力学领域的应用效果。方法基于“神威·太湖之光”超级计算机，采用MPI+Athread的编程方法，对雷诺数Re=250的三维有限长方柱绕流进行直接数值模拟，并对模拟结果进行验证与分析。模拟使用的网格规模最大达到245.76百万（t=600 s，dt=0.001），并行规模最高达到133 120核。结果经统计，在133 120核并行规模下245.76百万网格规模计算能够在数天之内完成。模拟结果显示，在三维有限长方柱绕流流动中，方柱各横截面具有同步涡脱的特征；对比不同长径比方柱绕流尾流场，发现长径比为2时的尾流涡系结构呈现出长直状的流向涡二次结构，而大于2时则为反对称卡门涡。结论模拟表明，基于“神威·太湖之光”超级计算机的多级并行计算可有效减少小尺度网格下因规模提升所导致的时间成本，在船舶水动力学领域有较好的应用潜力。
- 三维有限长方柱绕流 /
- 直接数值模拟 /
- 并行计算 /
- “神威·太湖之光”超级计算机
Abstract: Objective This paper aims to study the application effects of heterogeneous supercomputing platforms based on domestic processors in the field of ship hydrodynamics. Methods The direct numerical simulation of the flow around a 3D finite square cylinder with Re = 250 using the Sunway Taihu Light supercomputer is implemented, in which the maximum number of grids is 245.76 million ( t = 600 s, dt = 0.001), and the simulation results are analyzed and verified. The parallel programming method of MPI+Threads is used with a maximum parallel size of 133 120 cores. Results According to the statistics, the calculation can be completed in a few days under the current parallel scale using 245.76 million grids. In addition, the simulation results show that the vortex shedding is synchronous in different cross-sections of a 3D finite square cylinder. When the characteristics of flow around the finite square cylinder with slenderness ratios of 2, 3 and 4 are compared, it is found that when the slenderness ratio is 2, the wake vortex structure of the wake is a long straight streamwise vortex secondary structure, or else it is an antisymmetric Karman vortex. Conclusion These results indicate that multilevel parallel computing using the Sunway Taihu Light supercomputer can effectively reduce the time-consumption caused by grid scale increase in small-scale grids, which has broad application prospects in the field of ship hydrodynamics.
- flow around a three-dimensional finite square cylinder /
- direct numerical simulation /
- parallel computing /
- Sunway Taihu Light supercomputer

HTML全文

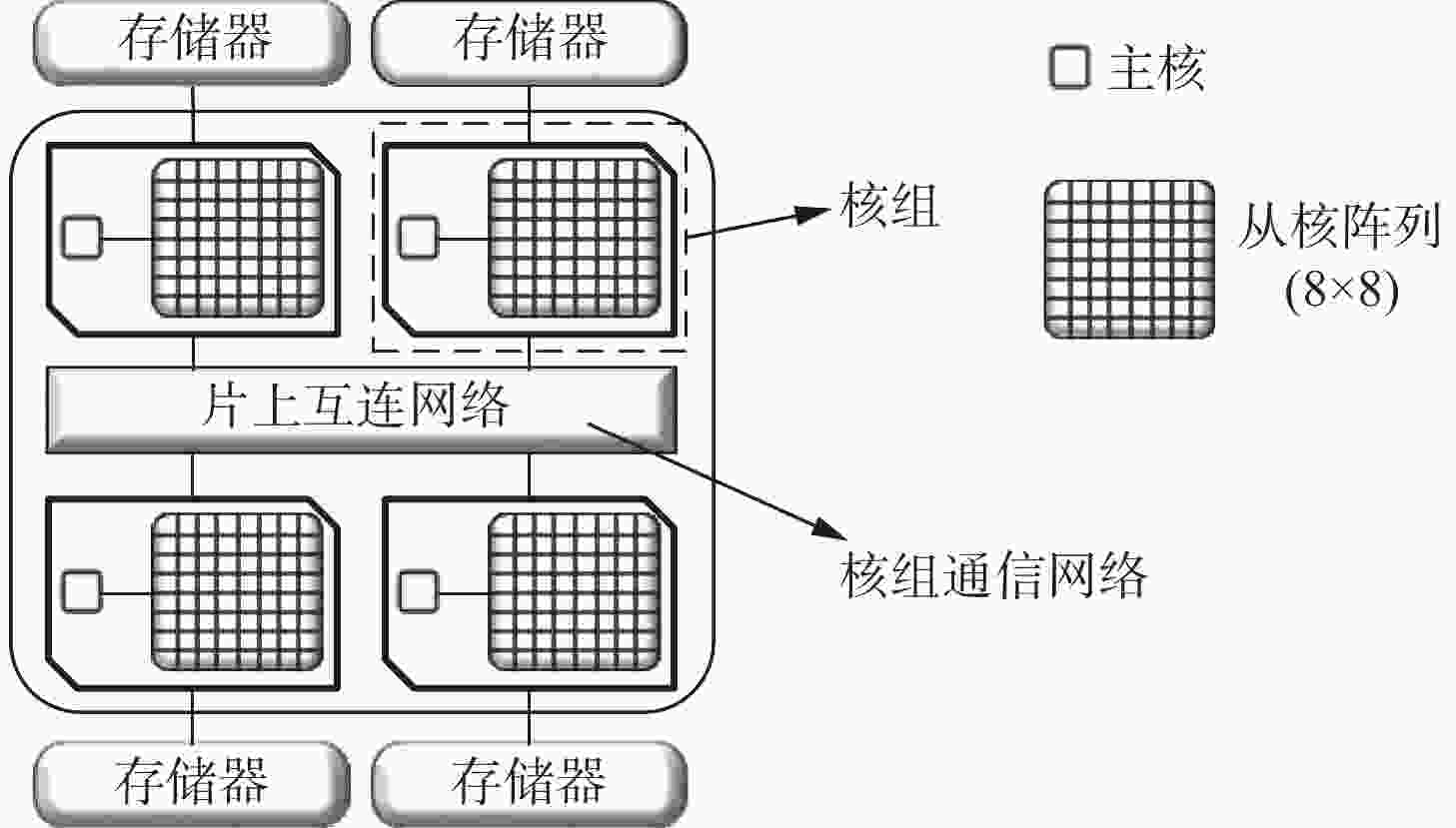

图 1 SW26010处理器结构

Figure 1. The structure of SW26010 processor

下载: 全尺寸图片幻灯片

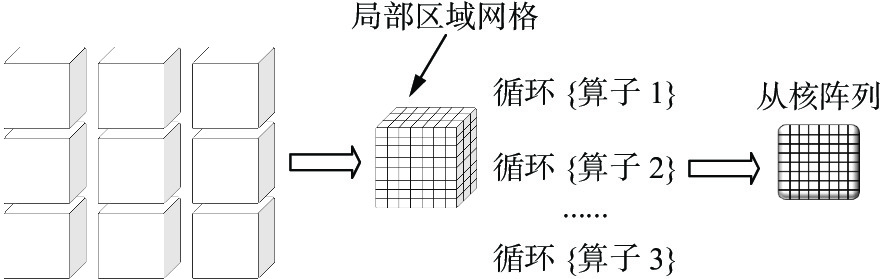

图 2 并行计算任务分配示意图

Figure 2. Schematics of data allocation in parallel computing

下载: 全尺寸图片幻灯片

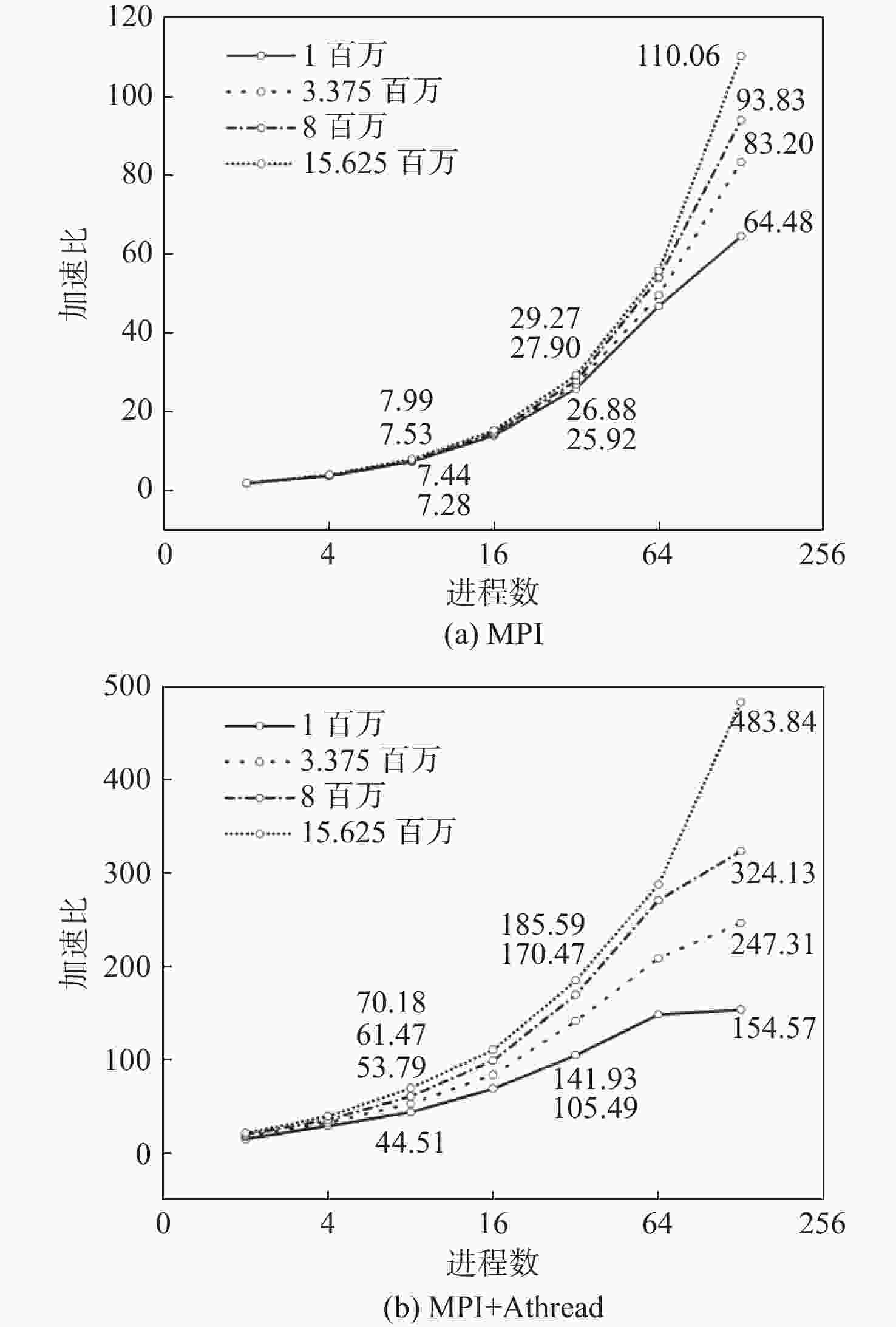

图 3 采用SIMPLE算法的3D直接数值模拟加速比变化曲线

Figure 3. The speedup curves of direct 3D numerical simulation using SIMPLE algorithm

下载: 全尺寸图片幻灯片

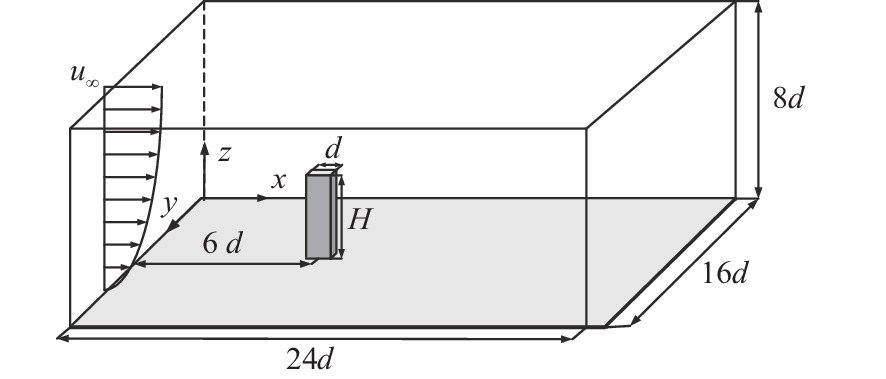

图 4 有限长方柱绕流3D计算模型

Figure 4. The 3D model of flow around a finite square cylinder

下载: 全尺寸图片幻灯片

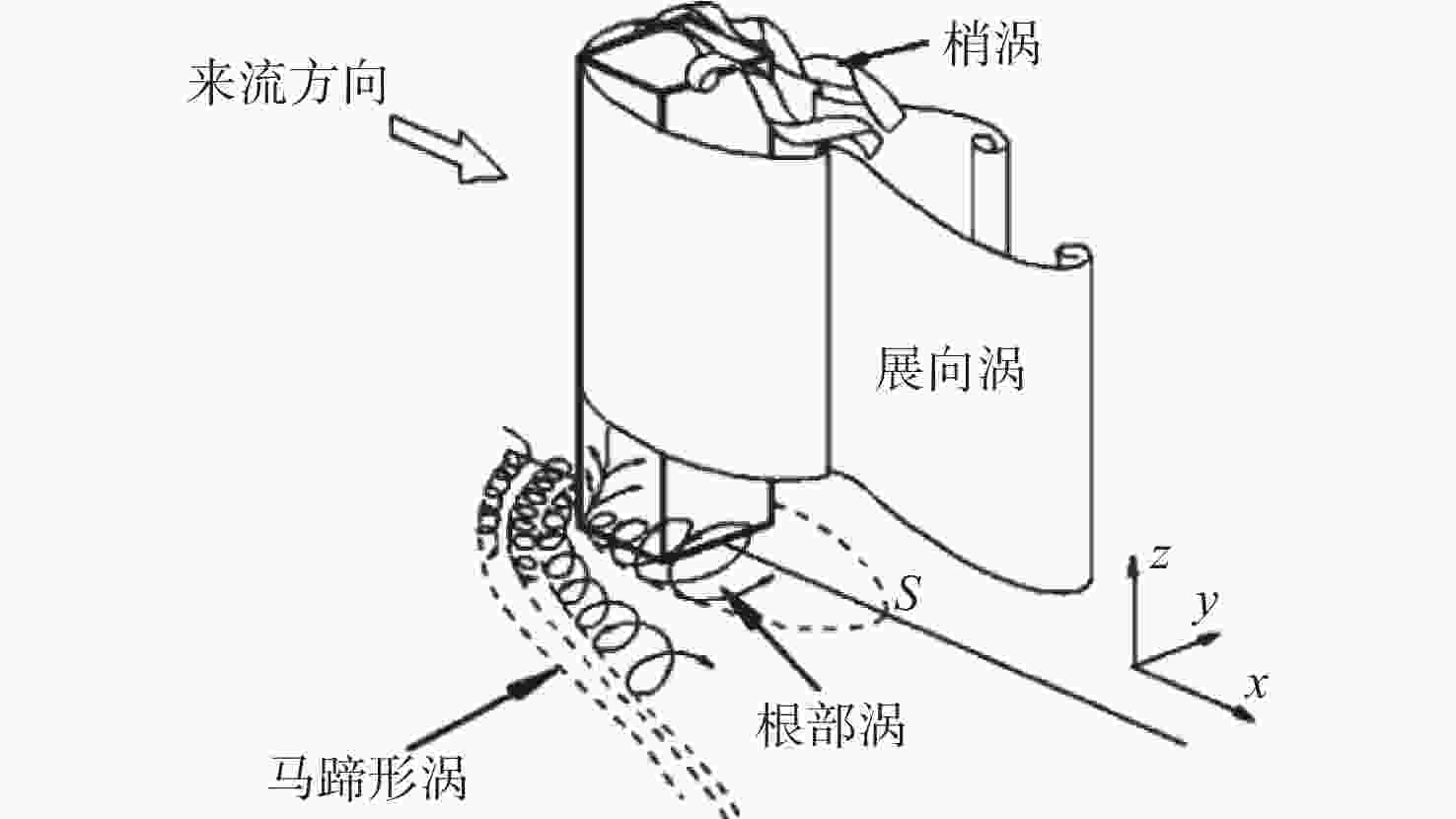

图 5 有限长方柱绕流尾流涡3D结构^[6]

Figure 5. The wake vortex structure of flow around a 3D finite square cylinder^[6]

下载: 全尺寸图片幻灯片

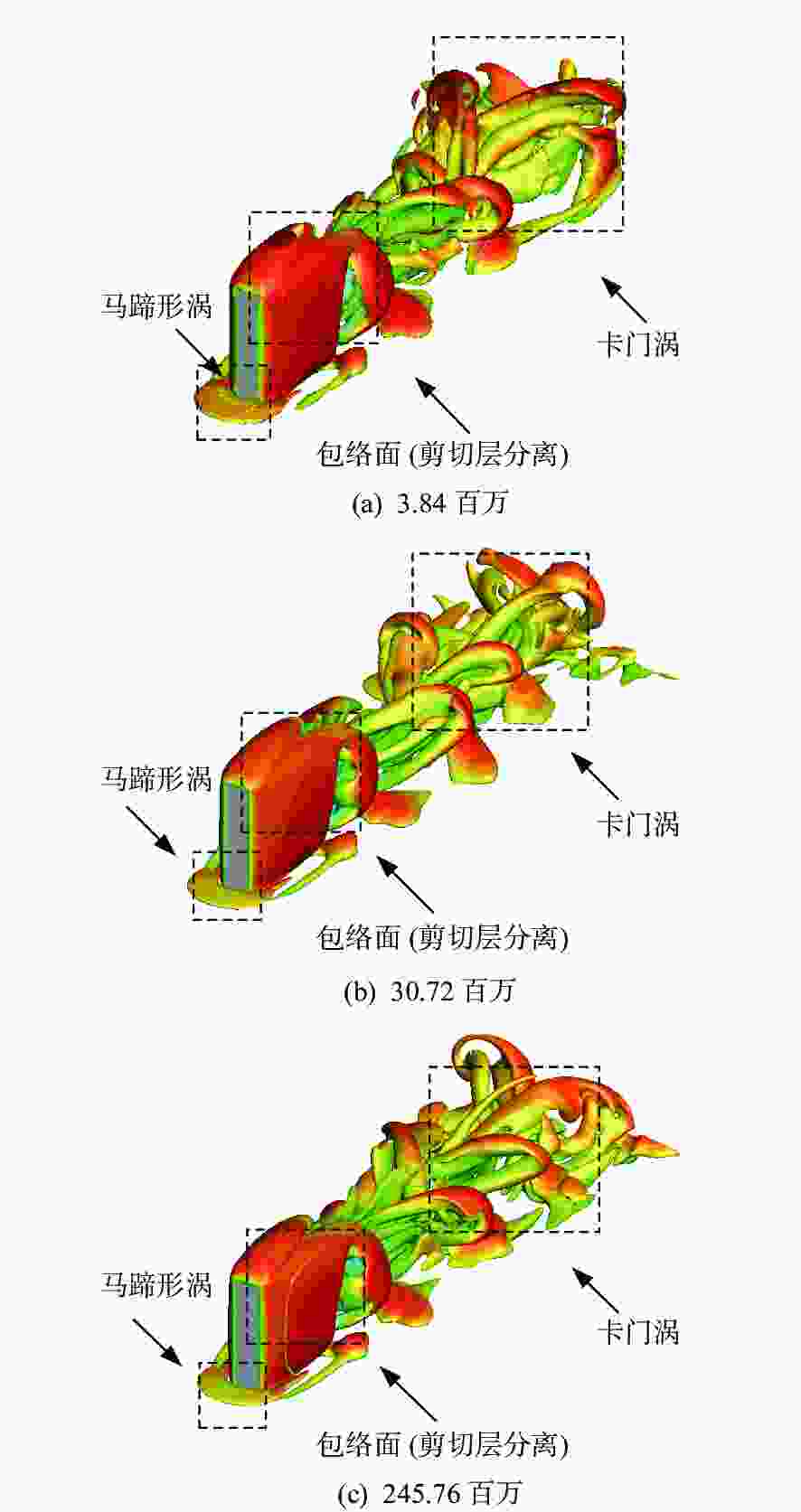

图 6 t=450 s时刻流场瞬时涡系结构（Q=0.01）

Figure 6. Instantaneous vortex structures at t=450 s when Q=0.01

下载: 全尺寸图片幻灯片

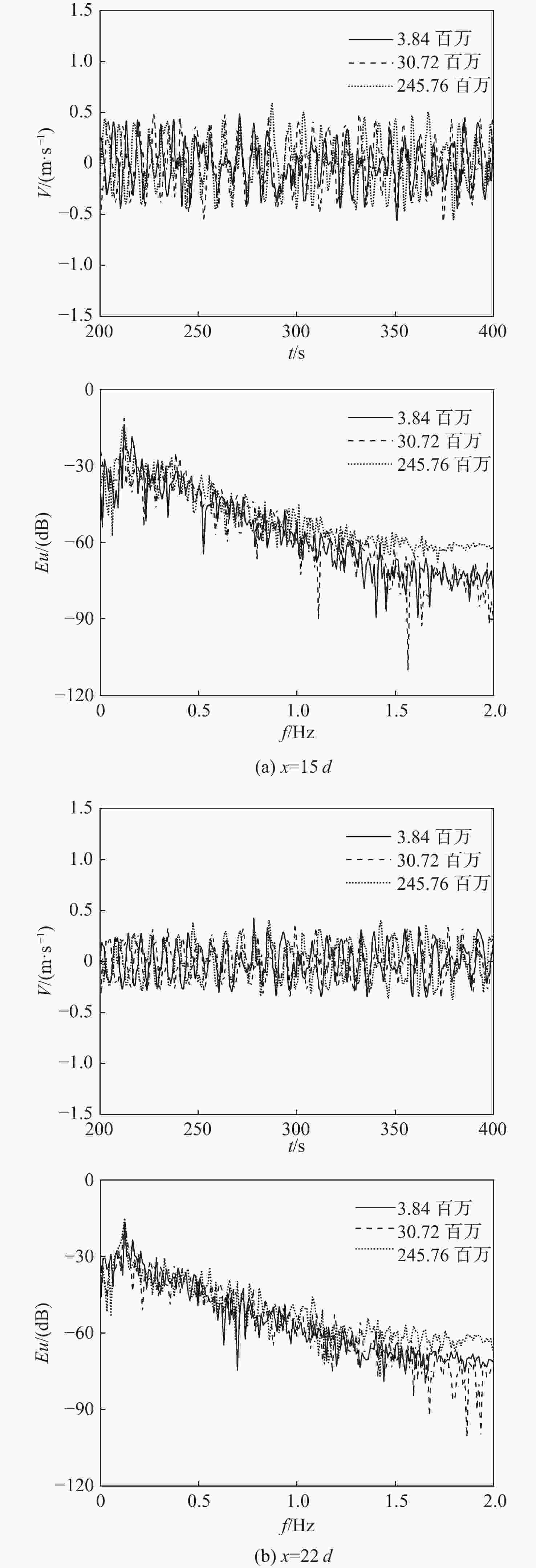

图 7 不同网格规模下横向速度时历变化曲线及能谱分析（测点位置：z=2d，y=8d）

Figure 7. Time histories and energy spectrum analysis of transverse velocity of different grid sizes and where the detection point position is z=2d , y=8d

下载: 全尺寸图片幻灯片

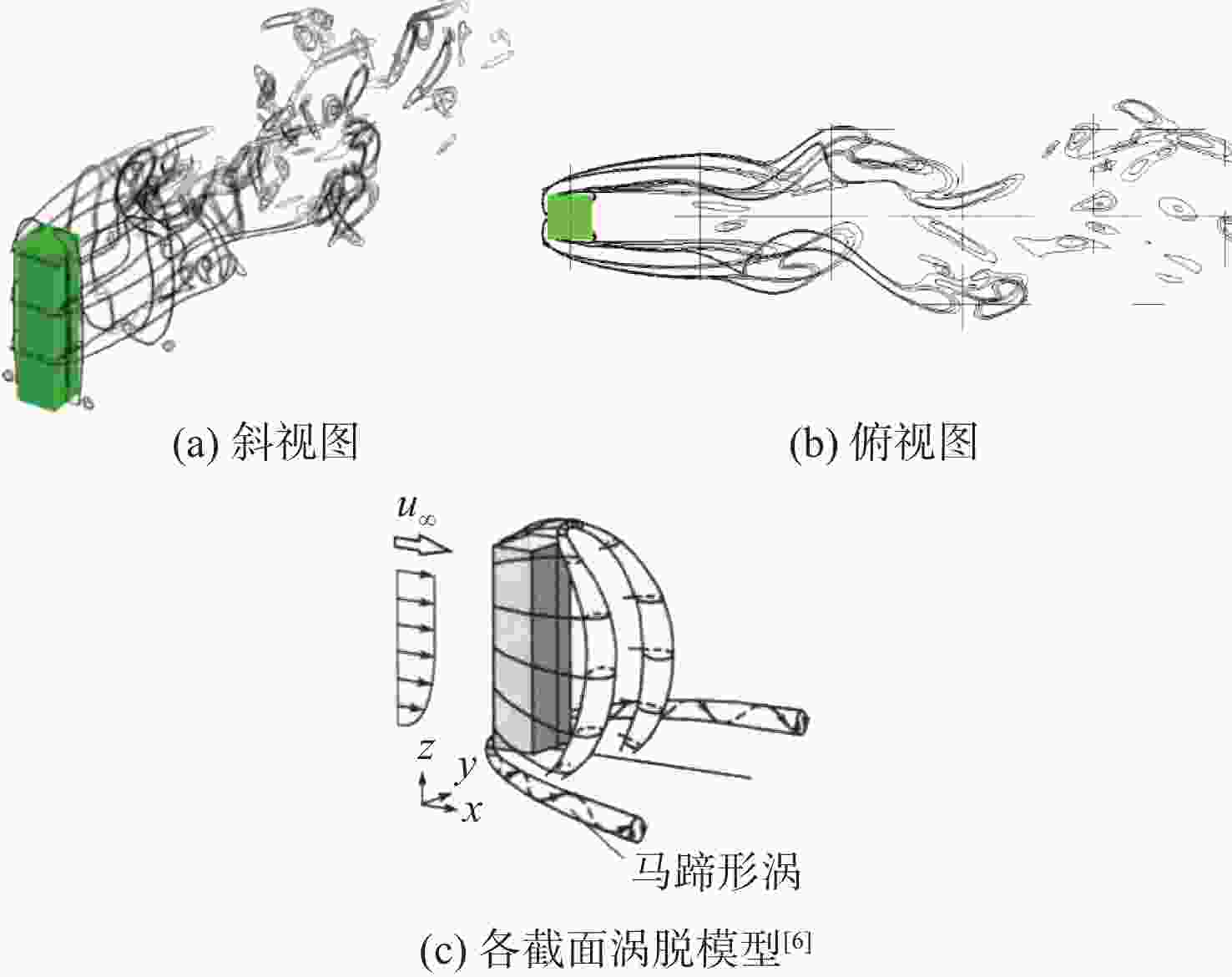

图 8 方柱截面涡分布特征

Figure 8. The characteristics of vortex on square cylinder cross-section

下载: 全尺寸图片幻灯片

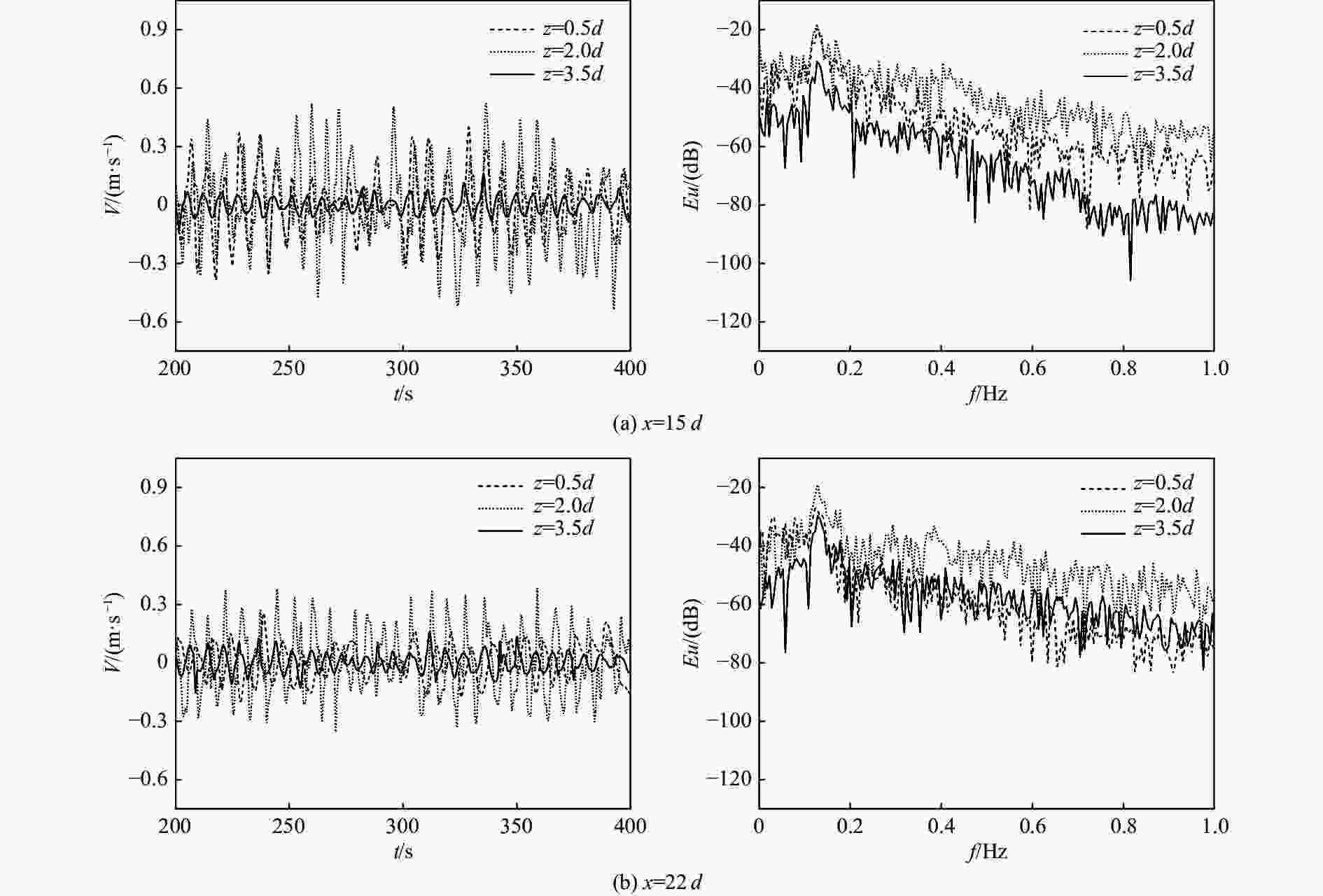

图 9 不同高度水平截面上横向速度时历变化曲线及能谱分析(测点位置：z=2d，y=8d)

Figure 9. Time histories and energy spectrum analysis of transverse velocity on horizontal sections at different heights and where the position of detection point is z=2d, y=8d

下载: 全尺寸图片幻灯片

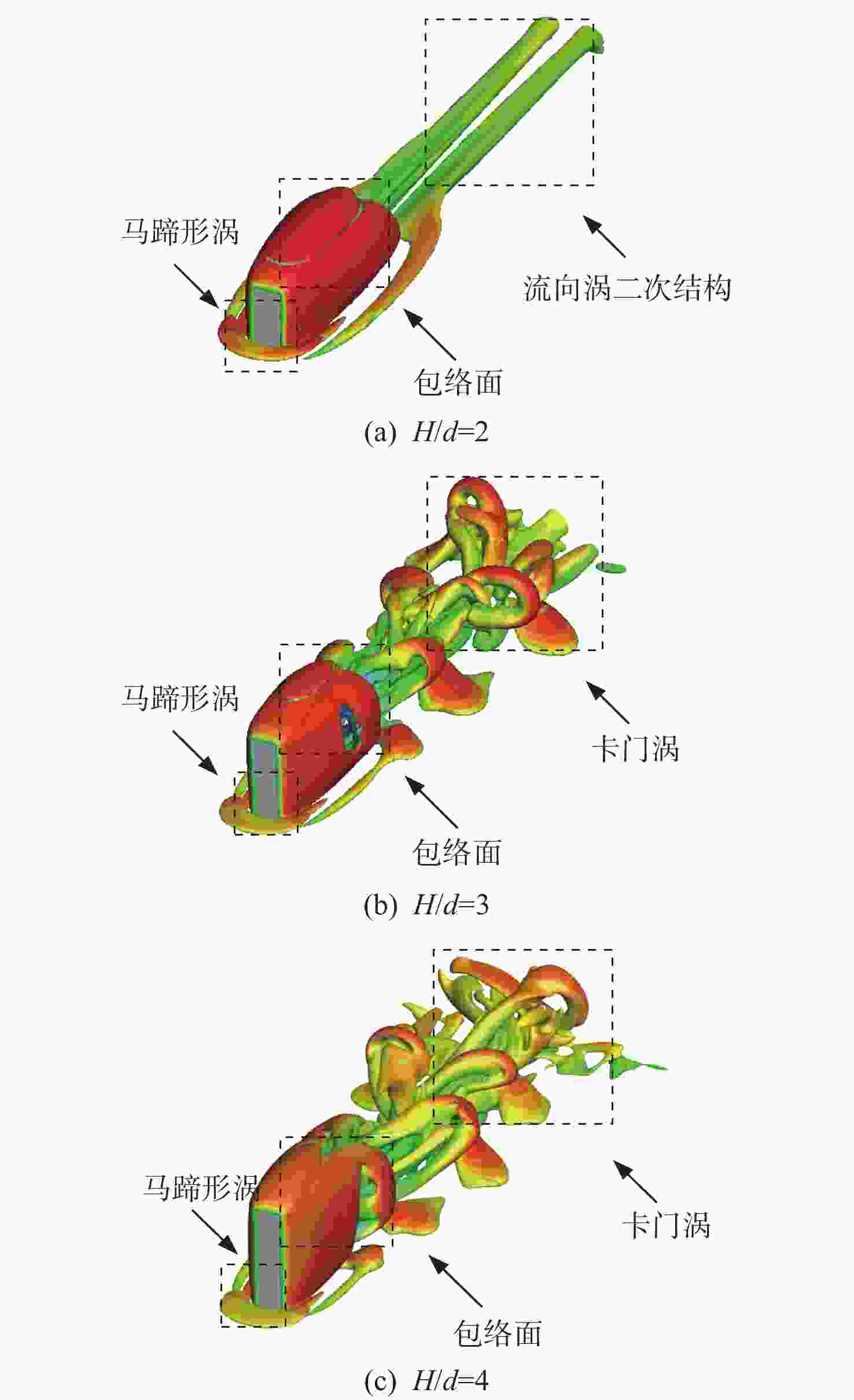

图 10 不同长径比方柱绕流瞬时涡系结构（Q=0.01）

Figure 10. Instantaneous vortex structures of flow around a 3D finite square cylinder with different slenderness ratios (Q=0.01)

下载: 全尺寸图片幻灯片

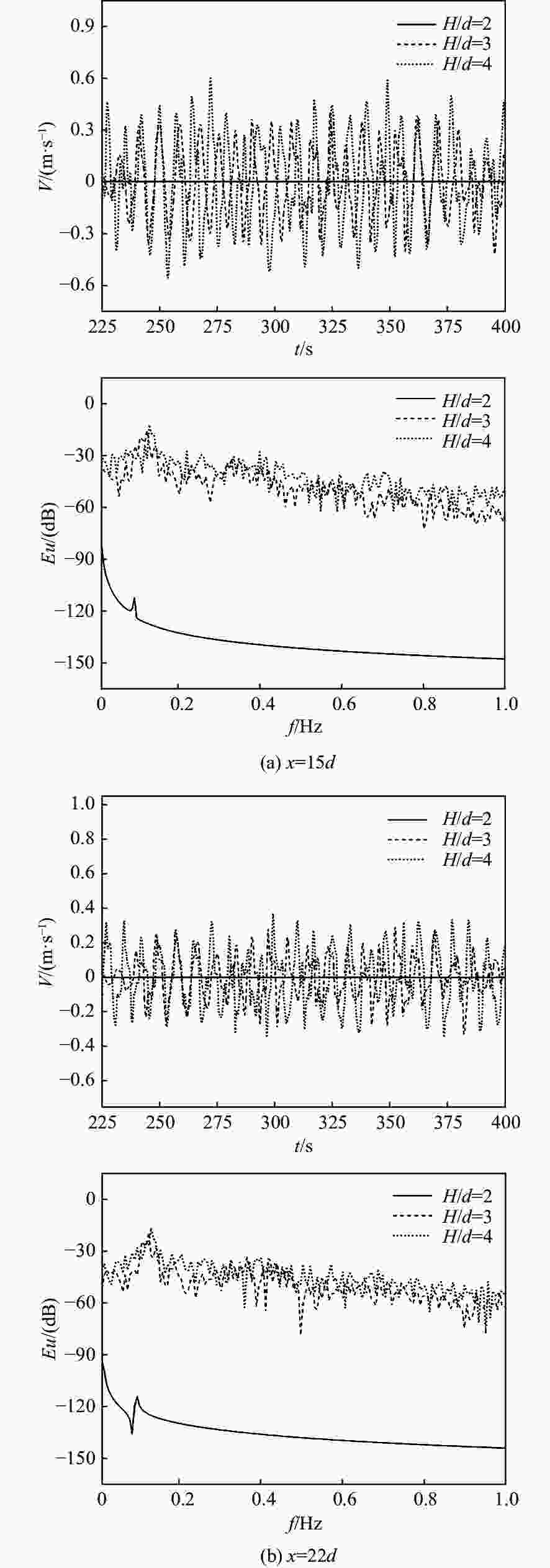

图 11 不同长径比方柱绕流横向速度时历变化曲线及能谱分析（截面高度：z/H=0.5）

Figure 11. Time histories and energy spectrum analysis of transverse velocity of flow around a 3D square cylinder with different slenderness ratio at the cross-section height of z/H=0.5

下载: 全尺寸图片幻灯片

图 12 不同长径比方柱绕流时间平均流场中纵截面流线分布（截面位置：y=8d）

Figure 12. Streamline distribution of longitudinal section (y=8d) in time average flow field with different slenderness ratios

下载: 全尺寸图片幻灯片

表 1 3D顶板驱动方腔流MPI / MPI+Athread并行效率

Table 1. The parallel efficiency of MPI/MPI+Athread for 3D cavity driven flow

网格数/百万	MPI / MPI+Athread/%
网格数/百万	进程数4	进程数16	进程数64	进程数128
1 （100×100×100）	93.2/84.88	87.14/53.35	73.07/28.50	50.35/14.78
3.375 （150×150×150）	95.37/87.57	89.68/55.23	77.39/34.30	65.42/20.25
8 （200×200×200）	96.35/90.84	91.24/59.46	84.31/40.48	73.30/24.16
15.625 （250×250×250）	99.94/91.34	95.47/62.95	87.03/40.82	85.98/34.24
注：并行效率计算参照对象：MPI（单个主核计算耗时）；MPI+Athread（单个核组耗时：主核+从核组）

下载: 导出CSV

表 2 方柱绕流数值模拟的相关参数

Table 2. The related parameters of simulation for the flow around square cylinder

网格数/百万	网格分辨率	时间步长/s	Re	核数	迭代步数/s	耗时/h
3.84 (240×160×100)	0.1d	0.001	250	33 280	6×10⁵	17
30.72 (480×320×200)	0.05d			33 280		79
245.76 (960×640×300)	0.025d			133 120		160

下载: 导出CSV

表 3 不同网格规模下方柱绕流数值模拟的流场特征频率

Table 3. The characteristic frequency of different grid sizes for flow around a square cylinder

网格数/百万	x=15d		x=22d
网格数/百万	主频/Hz	主频幅值/dB	主频/Hz	主频幅值/dB
3.84	0.129	−15.96	0.129	−16.46
30.72	0.130	−14.08	0.130	−15.70
245.76	0.130	−13.86	0.130	−14.93

下载: 导出CSV

表 4 不同长径比方柱绕流流动平均阻力系数及斯特劳哈尔数

Table 4. The average flow resistance coefficient and Strouhal number of the flow around a 3D finite square cylinder with different slenderness ratio

算例	H/d	St	C_d
本文计算	2	0.095	1.075
	3	0.115	1.18
	4	0.130	1.245
文献[10]	2	0.097	1.08
	3	0.114	1.16
	4	0.124	1.23

下载: 导出CSV
