邮轮吊舱推进器水动力性能仿真研究

聂远哲; 欧阳武; 李高强; 张聪; 周新聪

doi:10.19693/j.issn.1673-3185.02491

邮轮吊舱推进器水动力性能仿真研究

doi: 10.19693/j.issn.1673-3185.02491

聂远哲^1,,
欧阳武^{1, 2, ,},
李高强¹,
张聪^{1, 2},
周新聪^{1, 2}

1.
武汉理工大学交通与物流工程学院，湖北武汉 430063
2.
国家水运安全工程技术研究中心可靠性工程研究所，湖北武汉 430063

基金项目: 工业和信息化部高技术船舶科研项目（MC-201917-C09）

详细信息

作者简介:
聂远哲，男，1999年生，硕士生。研究方向：吊舱推进器水动力学。E-mail：2945277154@qq.com

欧阳武，男，1987年生，博士，教授。研究方向：绿色高效推进技术。E-mail：ouyangw@whut.edu.cn

通信作者:
欧阳武

中图分类号: U664.3；U661.71
计量
- 文章访问数: 684
- HTML全文浏览量: 239
- PDF下载量: 75
- 被引次数: 0
出版历程
- 收稿日期: 2021-08-13
- 修回日期: 2021-10-27
- 网络出版日期: 2022-06-16
- 刊出日期: 2022-06-30

Simulation study on hydrodynamic performance of podded propulsor for curise ship

NIE Yuanzhe^1
,,
OUYANG Wu^{1, 2
, ,},
LI Gaoqiang¹,
ZHANG Cong^{1, 2},
ZHOU Xincong^{1, 2}

1.
School of Transportation and Logistics Engineering, Wuhan University of Technology, Wuhan 430063, China
2.
Reliability Engineering Institute, National Engineering Research Center Water Transport Safety, Wuhan 430063, China

邮轮吊舱推进器水动力性能仿真研究由聂远哲，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 目的为研究邮轮吊舱推进器组合式水力组件与其敞水性能间的相互映射关系，提出基于雷诺平均纳维−斯托克斯（RANS）方程的吊舱推进器水动力性能预报方法。方法以邮轮吊舱推进器缩比模型为研究对象，在深水拖曳水池中开展推进器敞水性能试验，对预报方法进行精度验证。通过仿真计算，分析吊舱推进器舱体形状、螺旋桨盘面比和桨叶数对吊舱推进器水动力性能的影响规律。结果结果表明：舱体形状对推进器敞水性能的影响较小；提高螺旋桨盘面比时，推进器的推力系数和敞水效率均先增后减，而转矩系数则在一定范围内随之增加；增加螺旋桨叶数时，推进器的推力系数、转矩系数和敞水效率均先增加后减小，而桨叶数对低进速系数下吊舱推进器敞水效率的影响较小。结论研究成果可为吊舱推进器的优化设计提供参考。
- 邮轮 /
- 吊舱推进器 /
- 水动力性能 /
- 计算流体动力学(CFD) /
- 优化设计
Abstract: Objective Aiming at the mapping relationship between combined hydraulic components and performance, the hydrodynamic performance prediction method of a podded propulsor for cruise ship based on Reynolds-averaged Navier-Stokes (RANS) is studied. Methods Taking a scale model of a podded propulsor as the research object, the open water performance test of the propulsor is carried out in a deepwater towing tank, and the accuracy of the prediction method is verified. The effects of pod geometry, disk ratio and blade number on the hydrodynamic performance of the podded propulsor are simulated and analyzed. Results The results show that the geometry of the pod has little effect on the open water performance of the propulsor. Increasing the disk ratio of the propeller causes the thrust coefficient and open water efficiency to first increase and then decrease, while the torque coefficient only increases within a certain range. Increasing the number of propeller blades will first increase and then decrease the open water performance of the propulsor, and the number of propeller blades has little effect on the open water efficiency of the podded propulsor under low advance coefficient. Conclusion The results of this study can provide reference value for the optimal design of cruise ship podded propulsors.
- cruise ship /
- podded propulsor /
- hydrodynamic performance /
- computational fluid dynamics (CFD) /
- optimization design

HTML全文

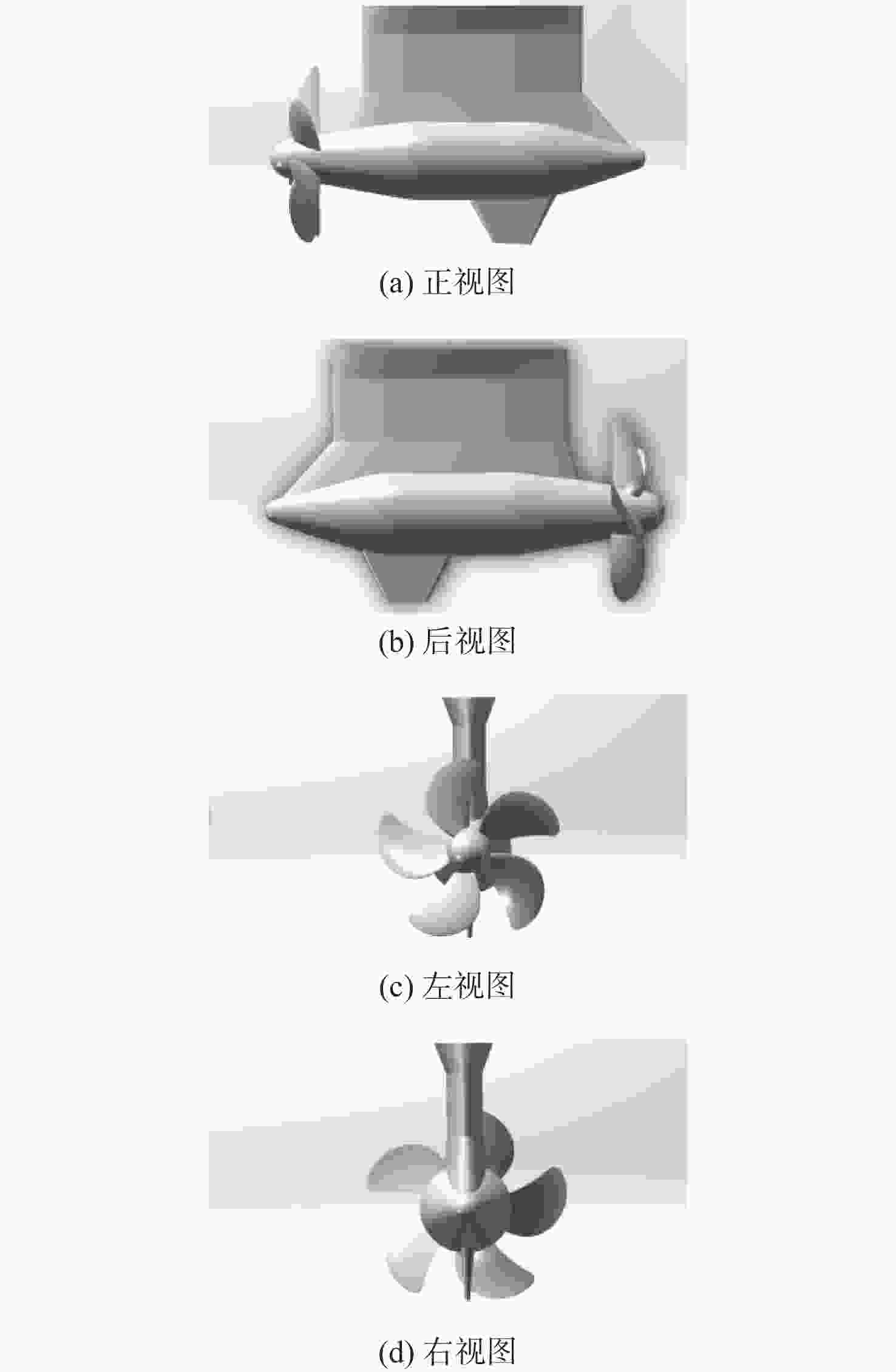

图 1 吊舱推进器缩比模型的多角度视图

Figure 1. Multi-angle views of reduced scale model of podded propulsor

下载: 全尺寸图片幻灯片

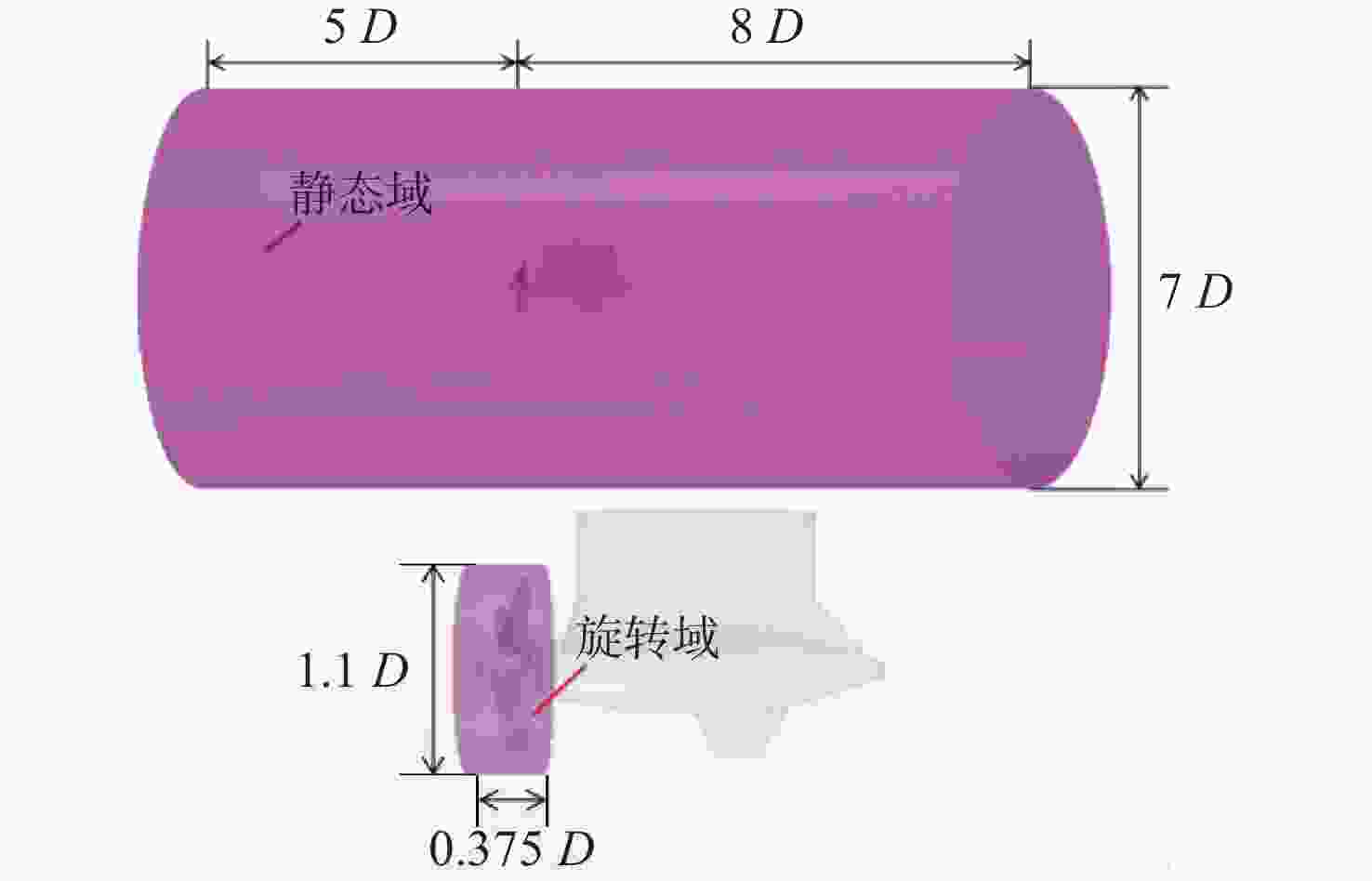

图 2 吊舱推进器的计算域

Figure 2. Computational domain of podded propulsor

下载: 全尺寸图片幻灯片

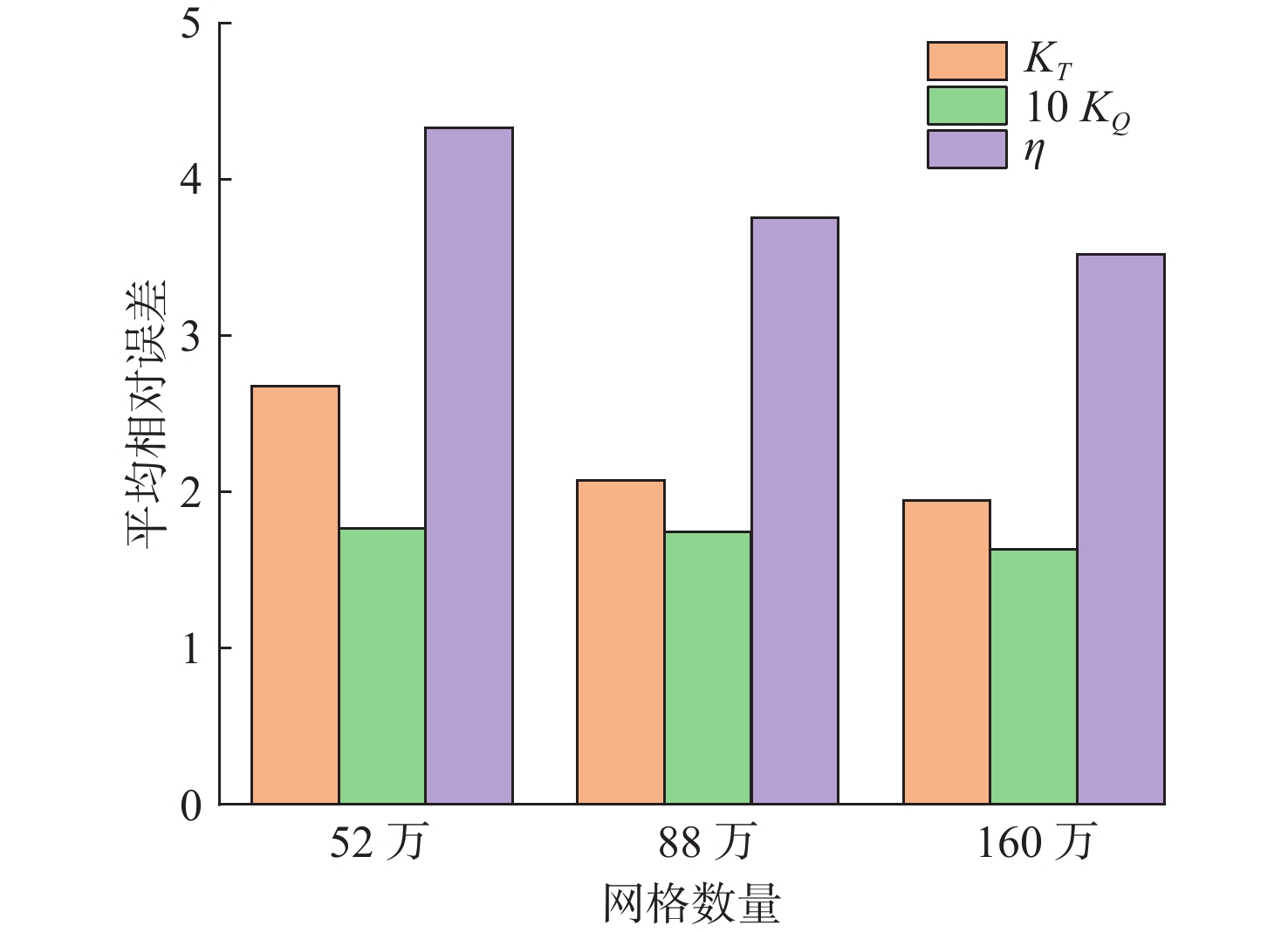

图 3 不同网格数量的计算结果对比

Figure 3. Comparison of calculation results of different grid numbers

下载: 全尺寸图片幻灯片

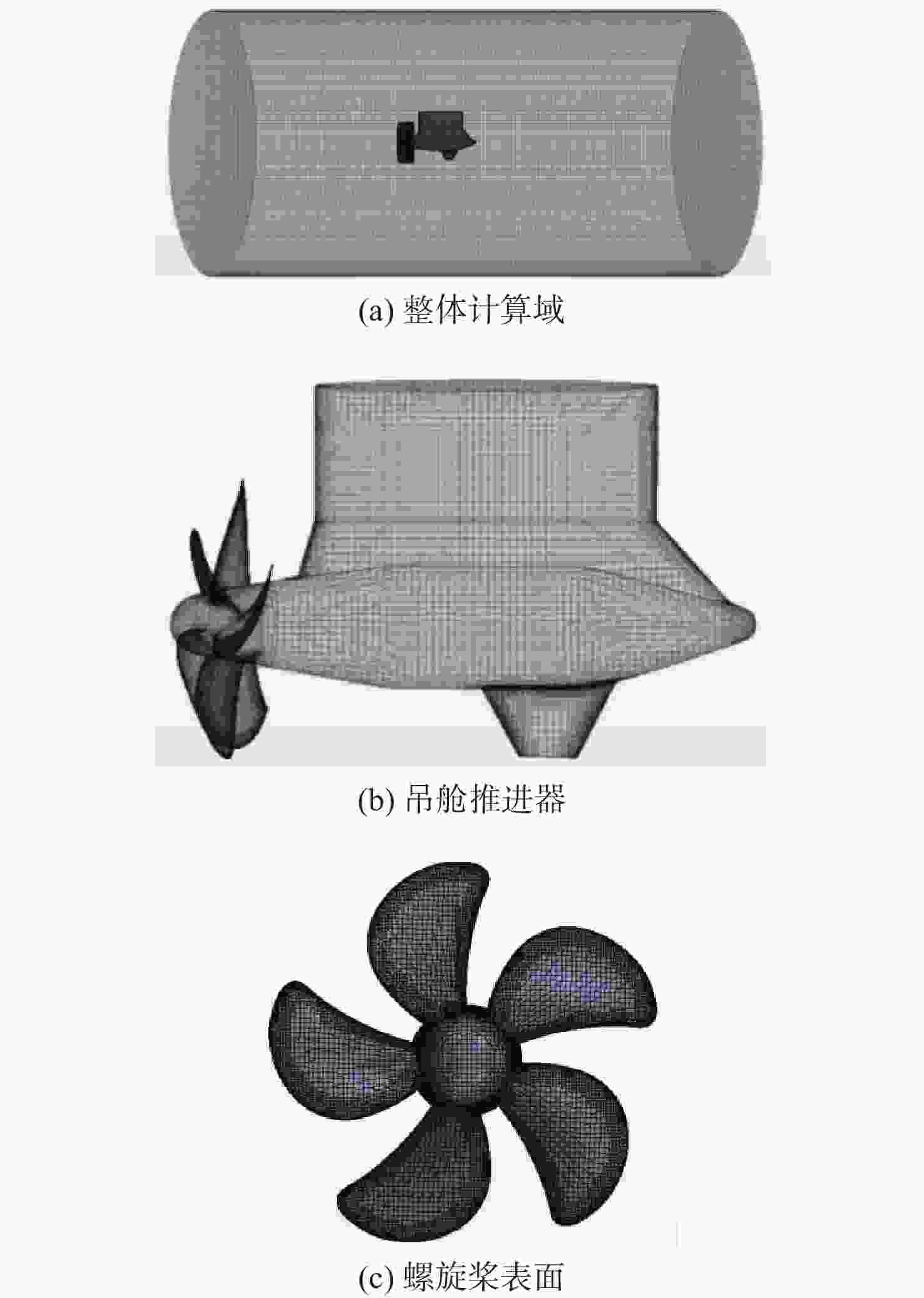

图 4 计算域、推进器、螺旋桨的网格划分

Figure 4. Grid division of computational domain, propulsor and blade

下载: 全尺寸图片幻灯片

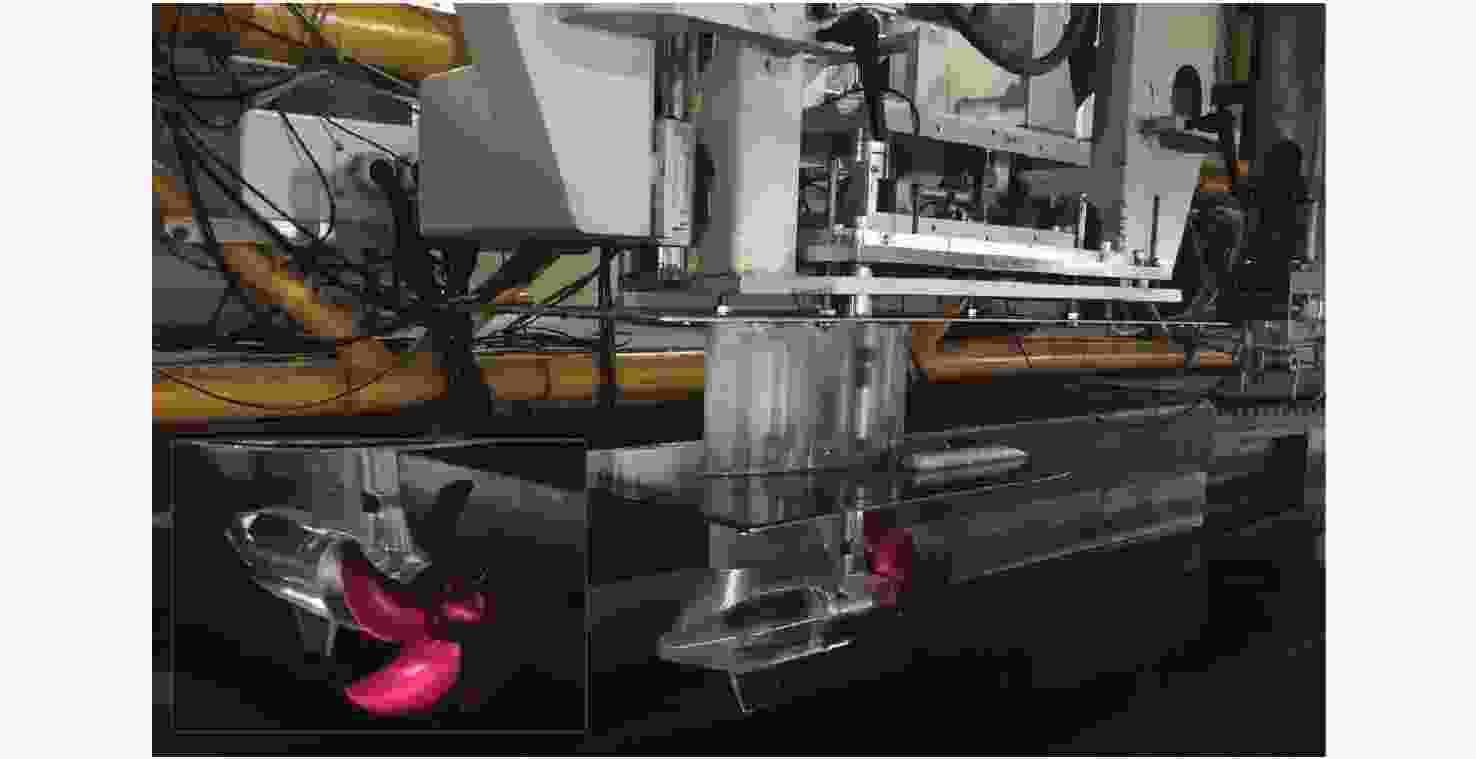

图 5 吊舱推进器模型及安装状态

Figure 5. The model of podded propulsor and assembly state

下载: 全尺寸图片幻灯片

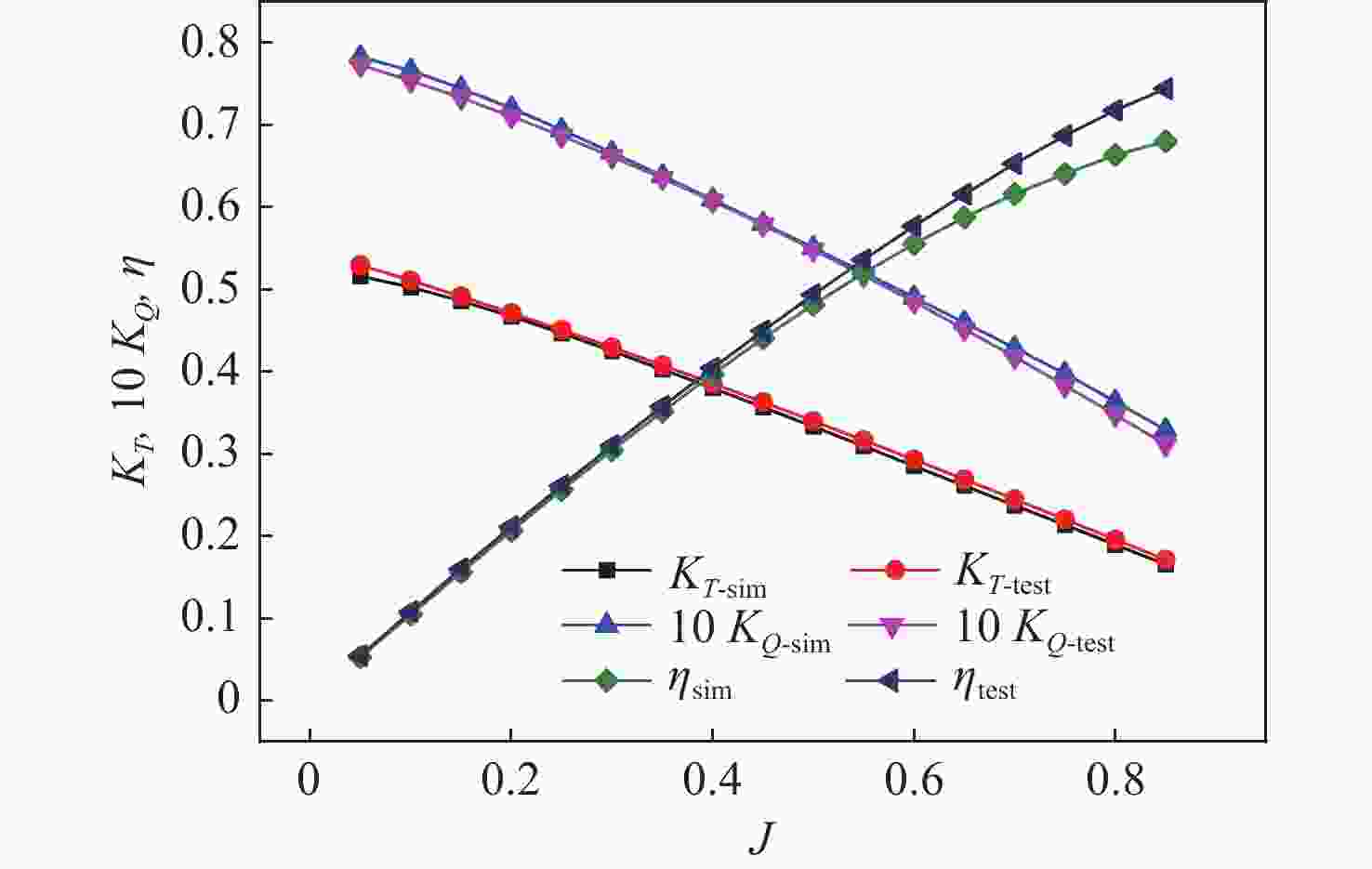

图 6 螺旋桨敞水性能的仿真结果与试验结果对比

Figure 6. Comparison of open water performance between simulation results and test results of propeller

下载: 全尺寸图片幻灯片

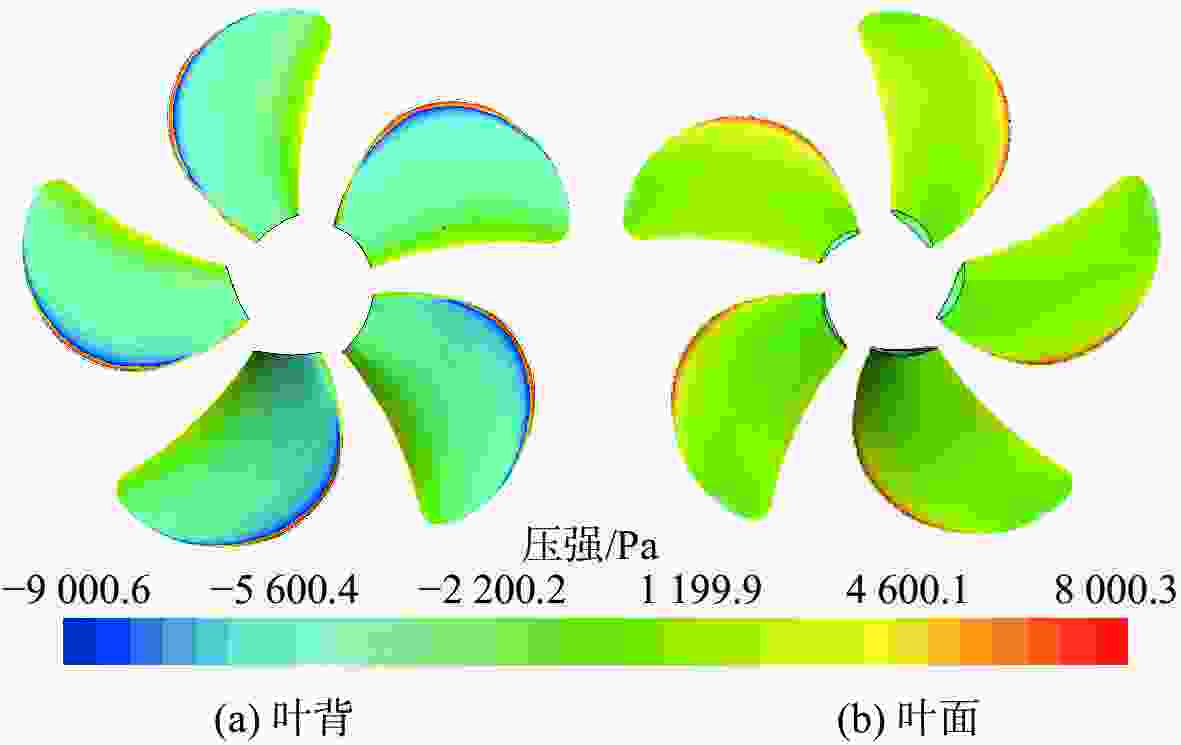

图 7 桨叶压力云图

Figure 7. Pressure contours of blade

下载: 全尺寸图片幻灯片

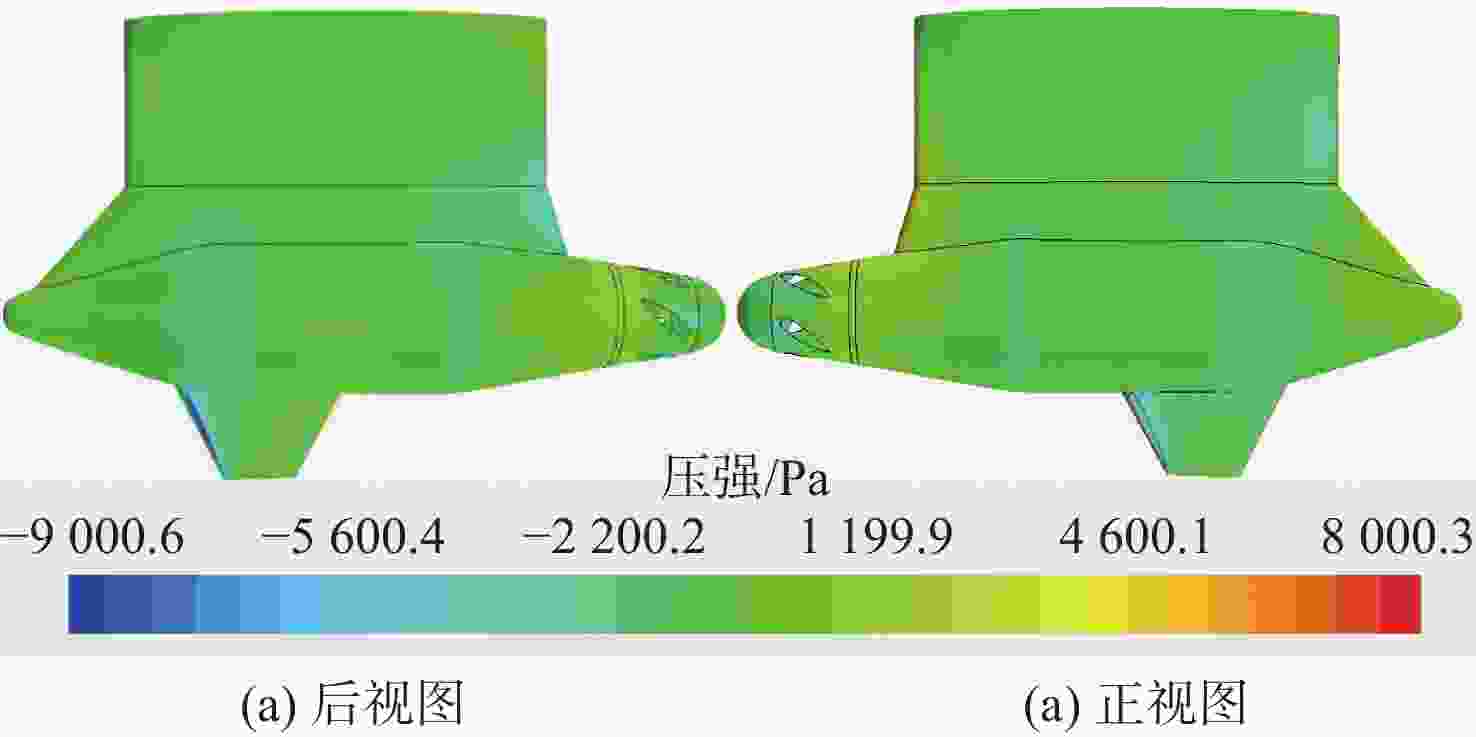

图 8 吊舱表面压力云图

Figure 8. Pressure contours of pod surface

下载: 全尺寸图片幻灯片

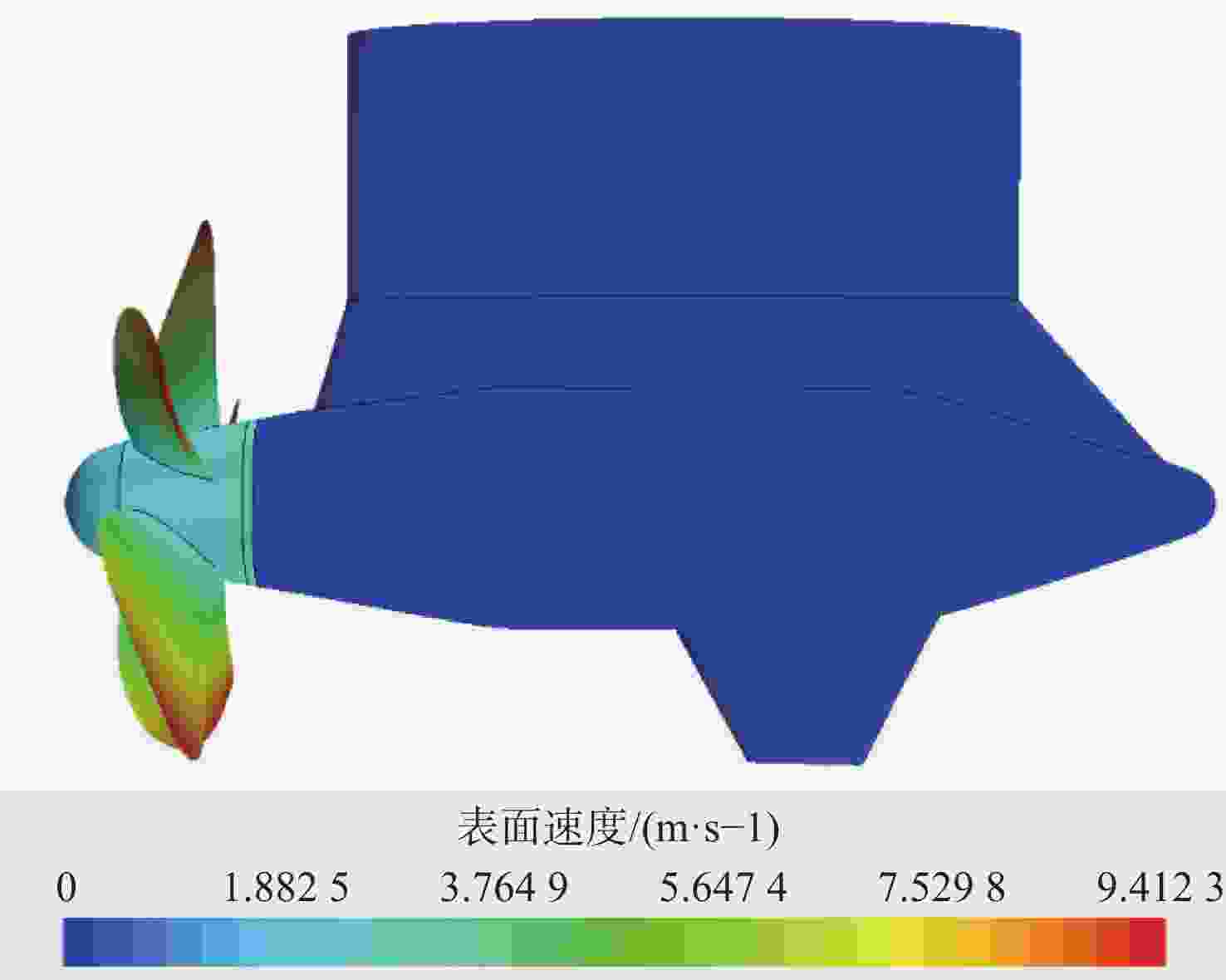

图 9 表面速度分布云图

Figure 9. Contours of surface velocity

下载: 全尺寸图片幻灯片

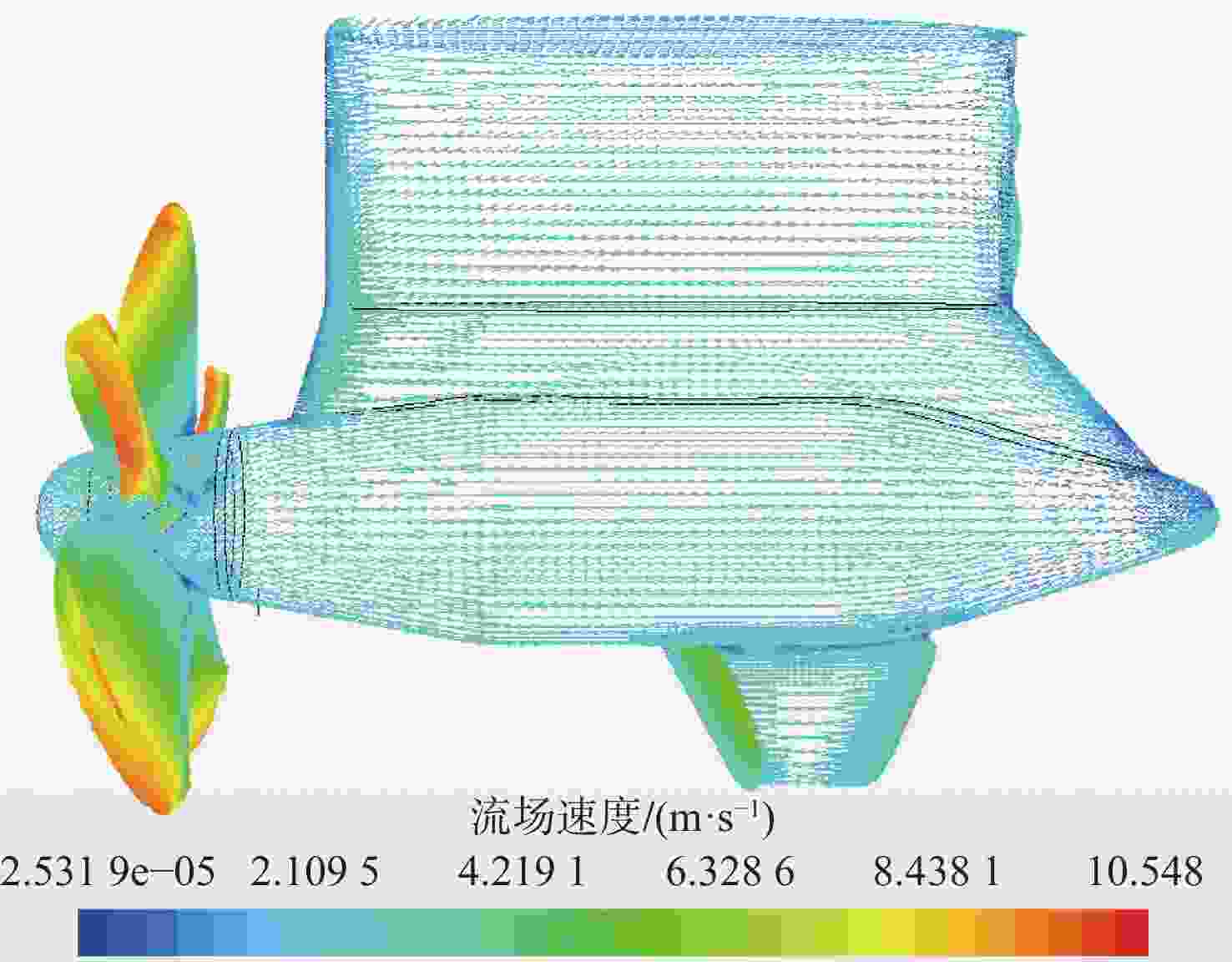

图 10 流场速度矢量云图

Figure 10. Contours of flow field velocity vector

下载: 全尺寸图片幻灯片

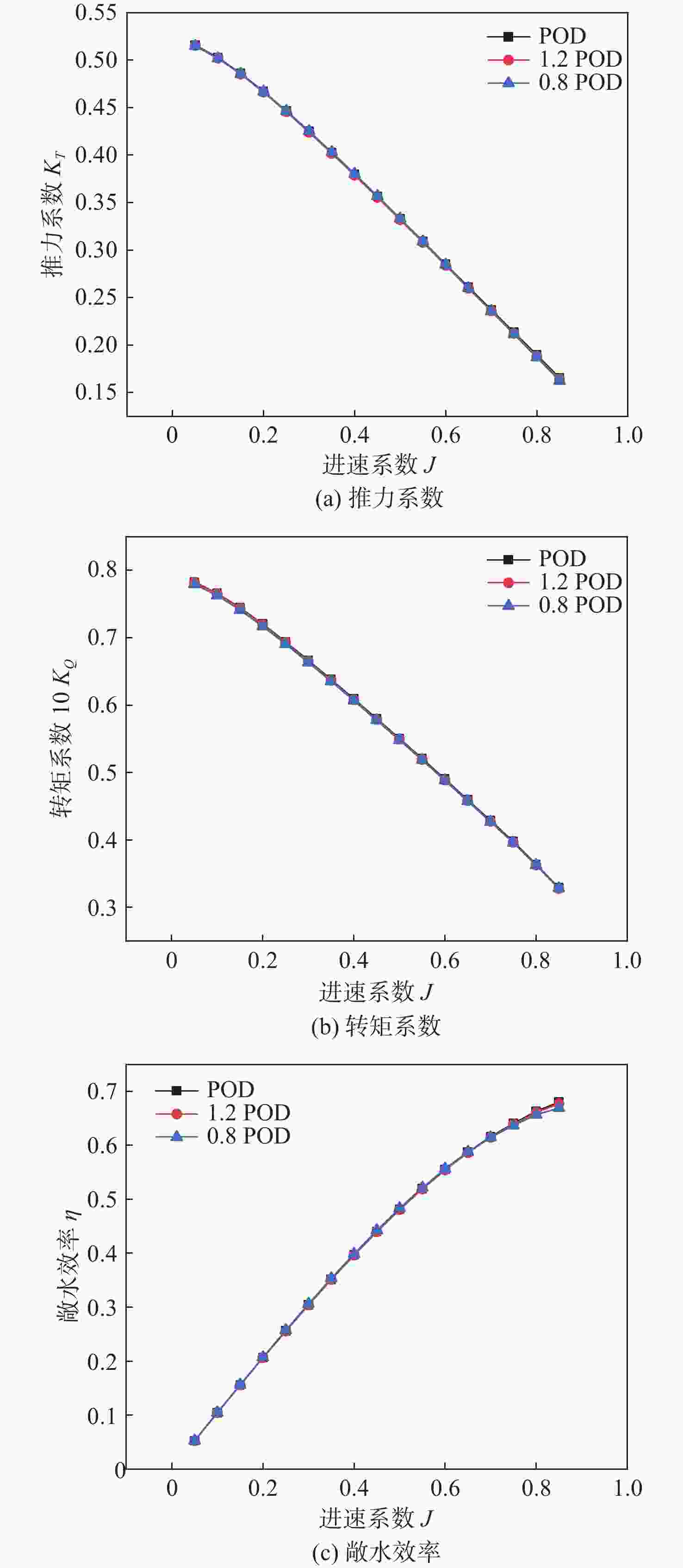

图 11 舱体形状对推进器敞水性能的影响

Figure 11. Effect of pod geometry on open water performance of the propulsor

下载: 全尺寸图片幻灯片

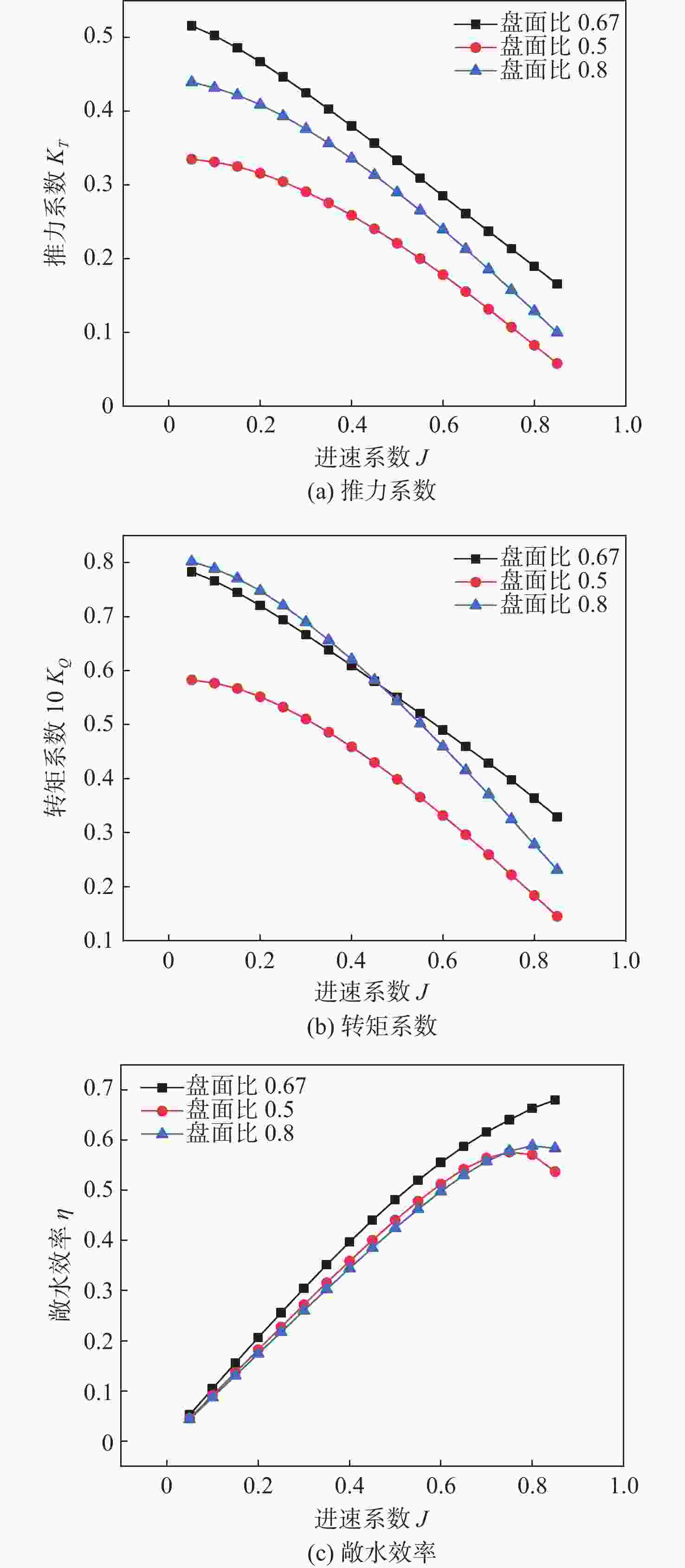

图 12 螺旋桨盘面比对推进器敞水性能的影响

Figure 12. Effect of disk ratio on open water performance of the propulsor

下载: 全尺寸图片幻灯片

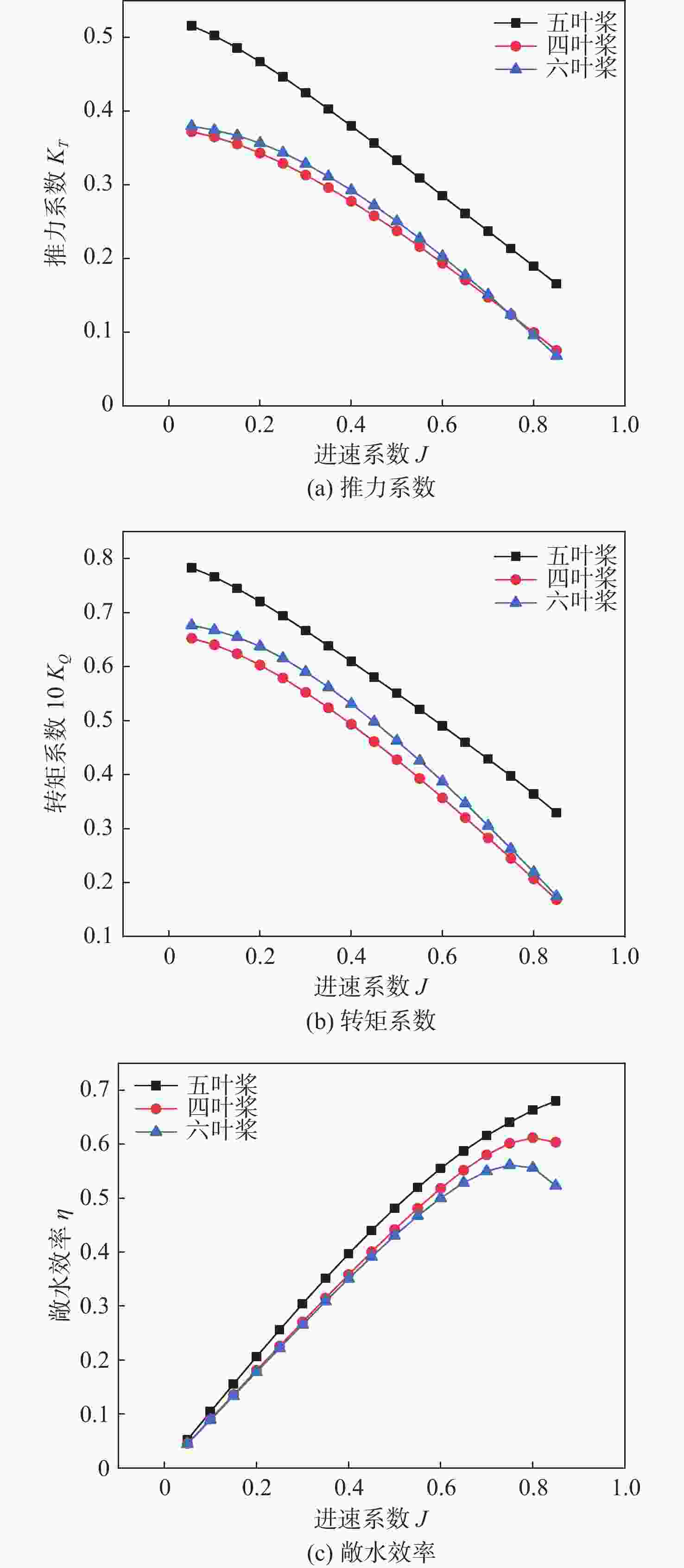

图 13 螺旋桨叶数对推进器敞水性能的影响

Figure 13. Effect of blade number on open water performance of the propulsor

下载: 全尺寸图片幻灯片

表 1 推进器的主要参数

Table 1. Main parameters of podded propulsor

参数	数值
螺旋桨直径D/mm	200
螺旋桨叶片数量Z	5
盘面比	0.67
0.7R处螺距比	1.15
0.75R处弦长/mm	63.2
0.75R处叶厚/mm	3.24
旋向	右旋
吊舱舱体最大外径/mm	89.42
吊舱舱体长度/mm	402.4

下载: 导出CSV

表 2 边界条件及计算参数的设置

Table 2. Setting of boundary conditions and calculation parameters

边界条件及计算参数	定义或数值
远场	对称平面
静态域入口	速度进口
静态域出口	压力出口
速度幅值	场函数VA
求解器	分离式求解器
螺旋桨最高转速/( r·min⁻¹)	898
湍流模型	Realizable k-ε湍流模型
流体运动模型	多重参考系模型
压力–速度场耦合	SIMPLE算法
入口速度	场函数VA
湍流动能	一阶迎风格式
湍流耗散率	一阶迎风格式

下载: 导出CSV
