一种应用于脉冲电流注入的线路阻抗稳定网络

王禹博 谢彦召 葛延鹏 吴钰颖 李泽同 王硕威 王文卓

王禹博, 谢彦召, 葛延鹏, 等. 一种应用于脉冲电流注入的线路阻抗稳定网络[J]. 中国舰船研究, 2023, 18(2): 204–210 doi: 10.19693/j.issn.1673-3185.02449
引用本文: 王禹博, 谢彦召, 葛延鹏, 等. 一种应用于脉冲电流注入的线路阻抗稳定网络[J]. 中国舰船研究, 2023, 18(2): 204–210 doi: 10.19693/j.issn.1673-3185.02449
WANG Y B, XIE Y Z, GE Y P, et al. A line impedance stabilization network for pulse current injection[J]. Chinese Journal of Ship Research, 2023, 18(2): 204–210 doi: 10.19693/j.issn.1673-3185.02449
Citation: WANG Y B, XIE Y Z, GE Y P, et al. A line impedance stabilization network for pulse current injection[J]. Chinese Journal of Ship Research, 2023, 18(2): 204–210 doi: 10.19693/j.issn.1673-3185.02449

一种应用于脉冲电流注入的线路阻抗稳定网络

doi: 10.19693/j.issn.1673-3185.02449
基金项目: 国防科技基础加强计划资助项目(2021-JCJQ-ZD-046-00)
详细信息
    作者简介:

    王禹博,男,1996年生,硕士生。研究方向:电磁效应与电磁防护。 E-mail:291417989@qq.com

    谢彦召,男,1973年生,博士,教授,博士生导师。研究方向:电磁环境与电磁安全。E-mail:yanzhao.xie@gmail.com

    葛延鹏,男,1991年生,博士生。研究方向:电磁防护技术。 E-mail:yanpengge91@163.com

    通信作者:

    谢彦召

  • 中图分类号: U665.26;TM862

A line impedance stabilization network for pulse current injection

知识共享许可协议
一种应用于脉冲电流注入的线路阻抗稳定网络王禹博,等创作,采用知识共享署名4.0国际许可协议进行许可。
  • 摘要:   目的  针对现有线路阻抗稳定网络(LISN)在电磁脉冲防护能力上的不足,提出一款适用于电气电子设备脉冲电流注入(PCI)试验的LISN。  方法  通过PSpice时域和频域仿真,结合工程设计要求,针对PCI试验中脉冲电流峰值高、上升快等特点,在现有基础上改良LISN的电路拓扑和物理结构,使其同时具有良好的纳秒脉冲防护性能和阻抗稳定能力,并设计开展脉冲电流防护性能测试和阻抗曲线测试试验。  结果  试验验证结果表明,该LISN可以使电流衰减到注入的脉冲电流值的1/60;试验结果与GJB 151B—2013中5 μH型LISN的阻抗曲线之间的误差小于5%。  结论  该LISN具有较好的阻抗稳定能力和去耦能力,可用于电气电子设备的PCI试验,以保护电源并提高试验的可重复性。

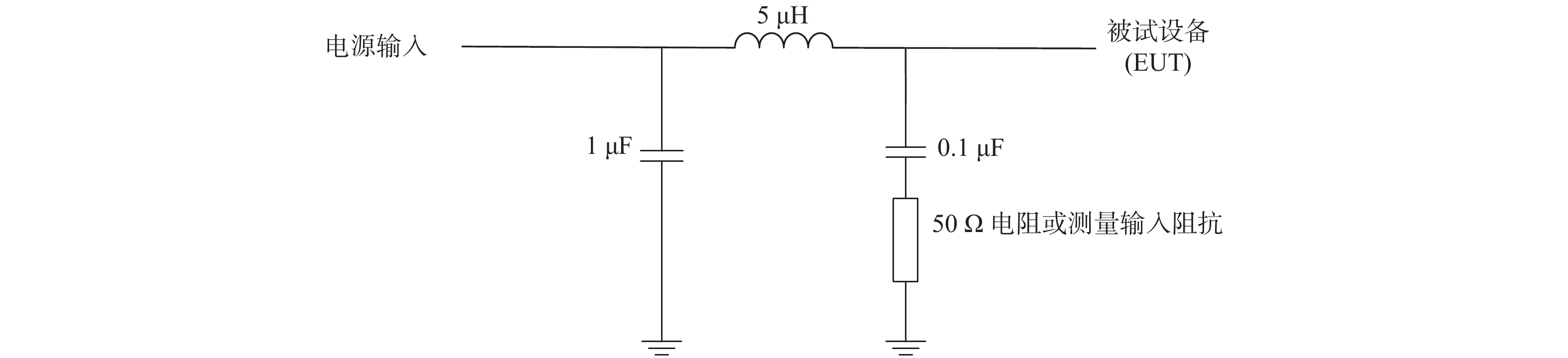

  • 图  5 μH型LISN电路结构图[8]

    Figure  1.  Type 5 μH LISN circuit diagram[8]

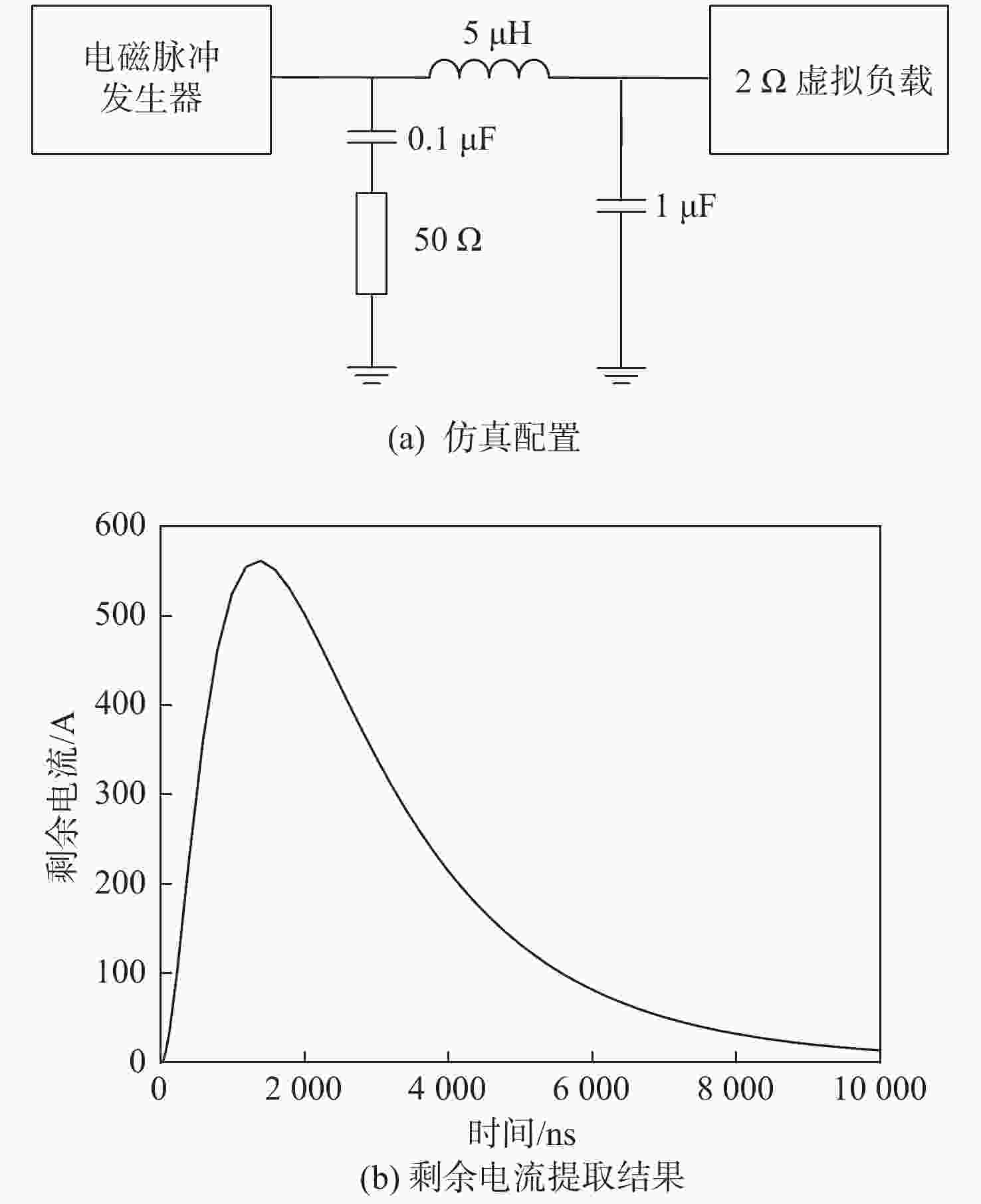

    图  5 μH型LISN电磁脉冲防护性能仿真

    Figure  2.  Simulation of electromagnetic pulse protection performance of type 5μH LISN

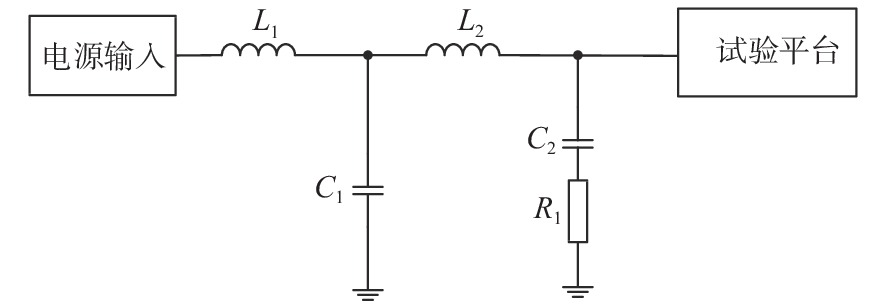

    图  新型LISN单相电路结构

    Figure  3.  New type LISN single-phase circuit structure

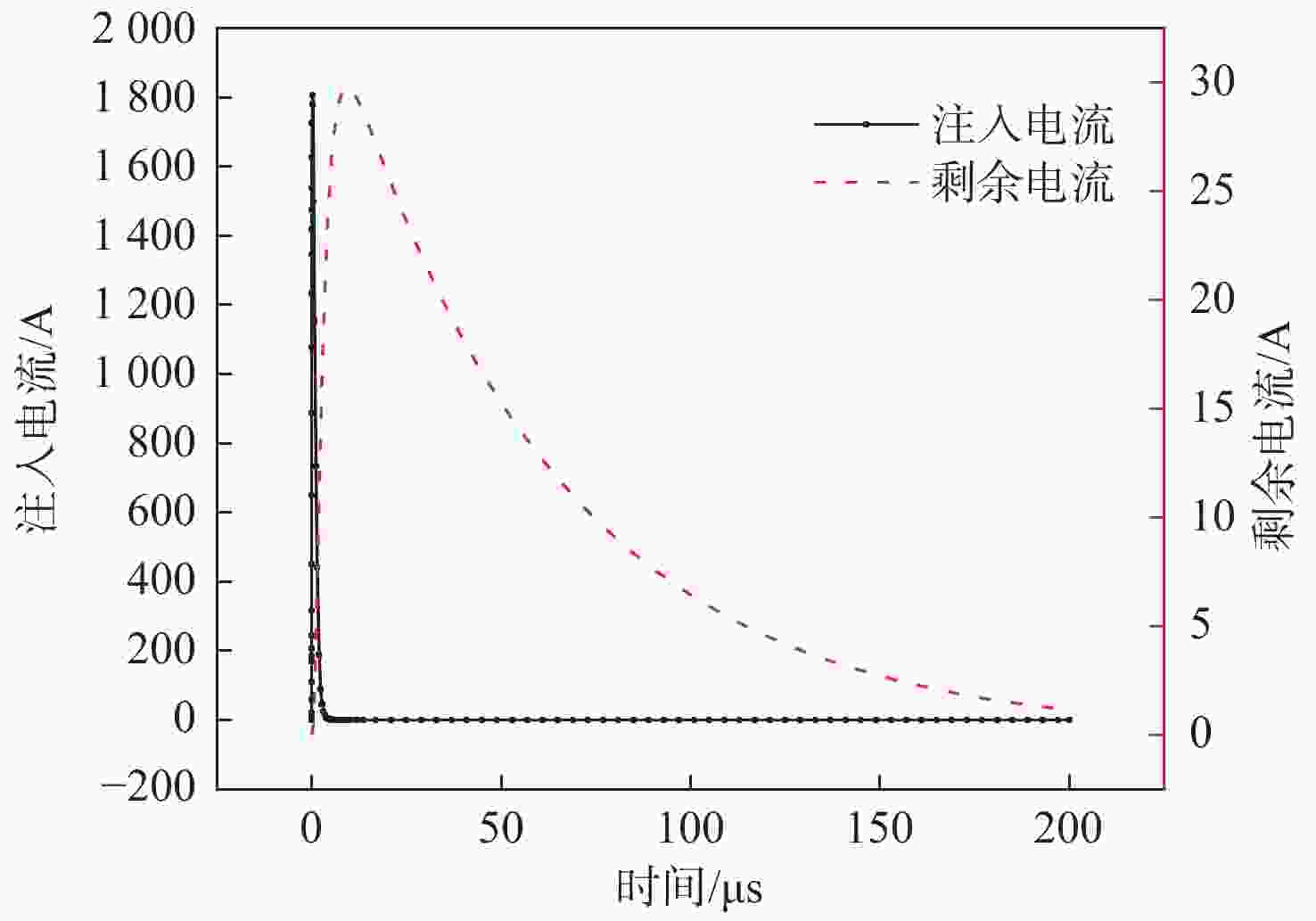

    图  新型LISN电磁脉冲防护性能仿真结果

    Figure  4.  Simulation results of electromagnetic pulse protection performance of new type LISN

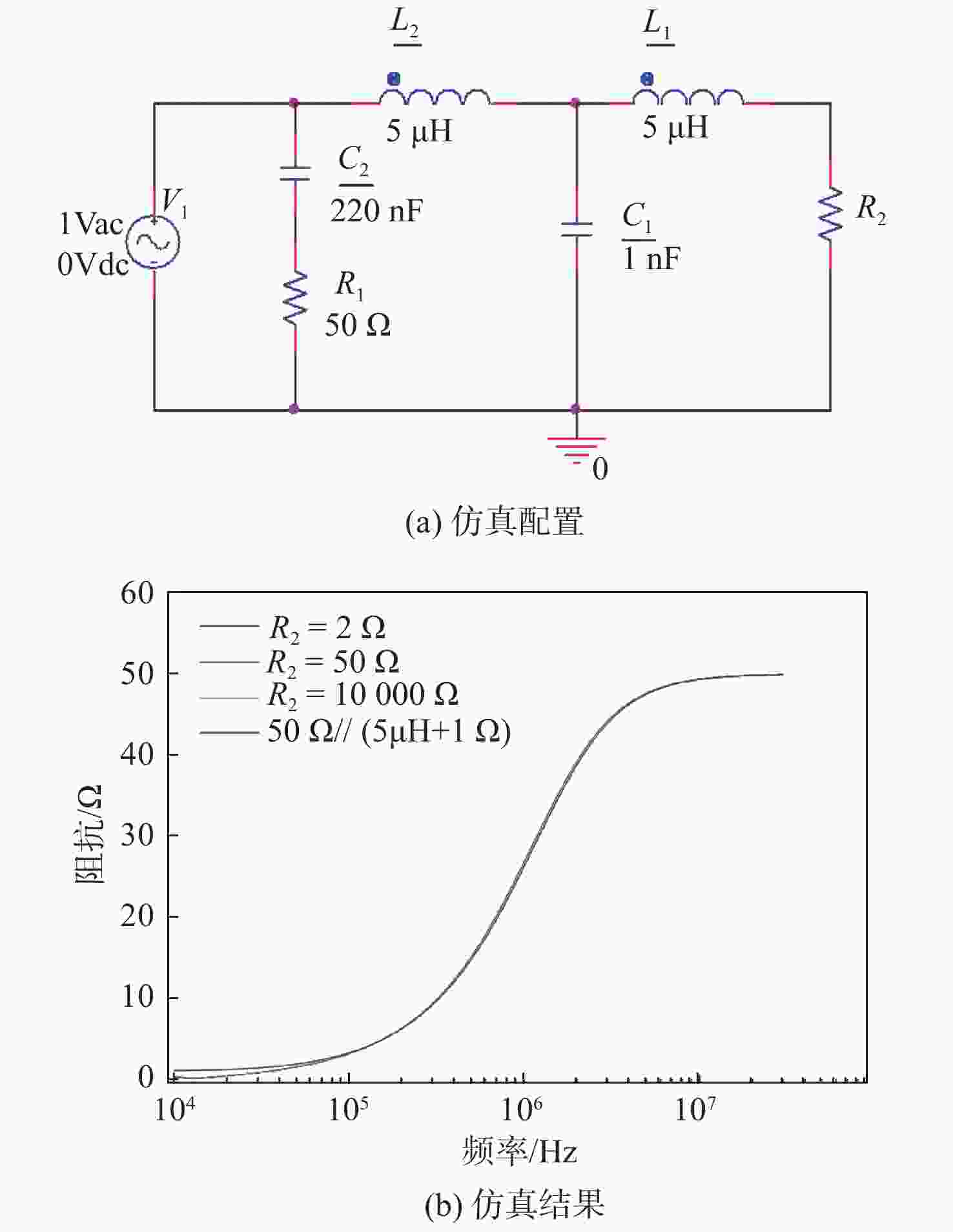

    图  新型LISN的阻抗特性仿真

    Figure  5.  Simulation of impedance characteristics of new type LISN

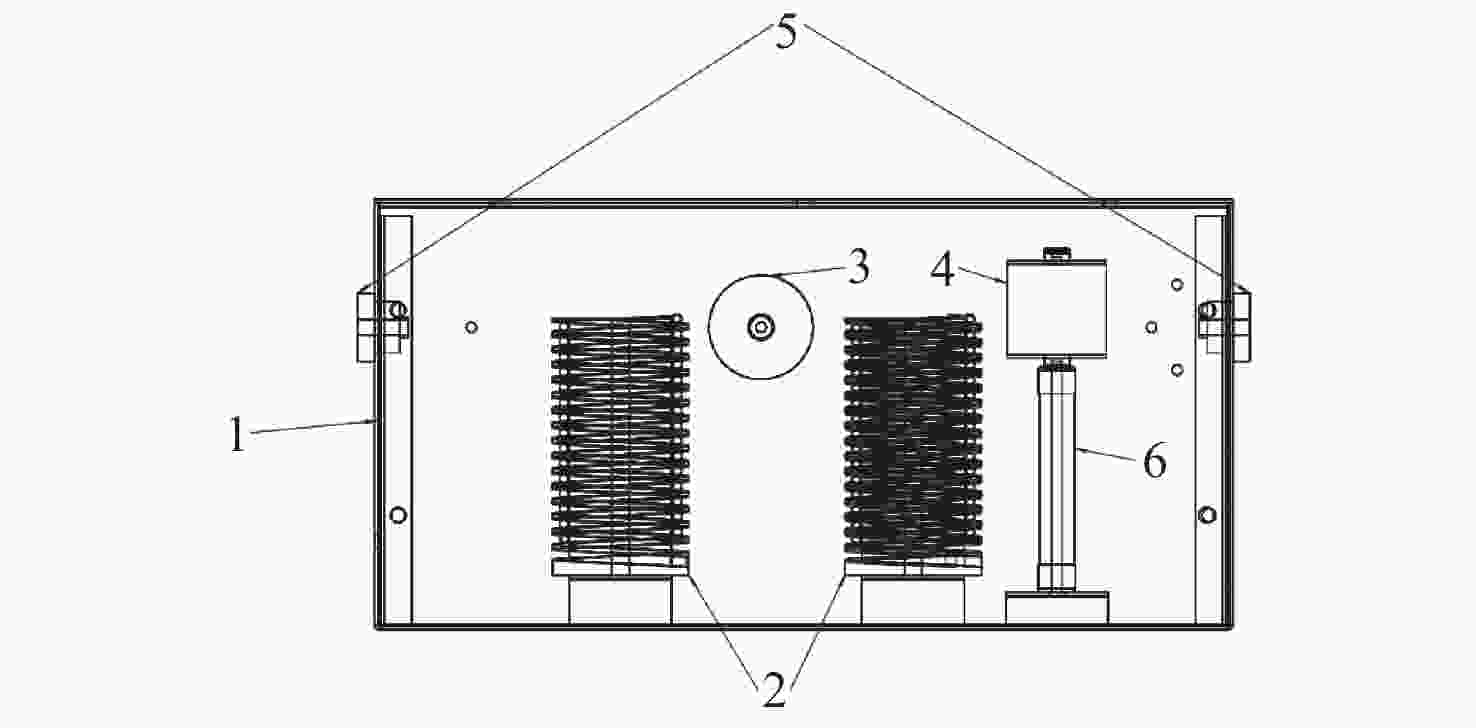

    图  LISN的物理布局

    Figure  6.  The physical layout of LISN

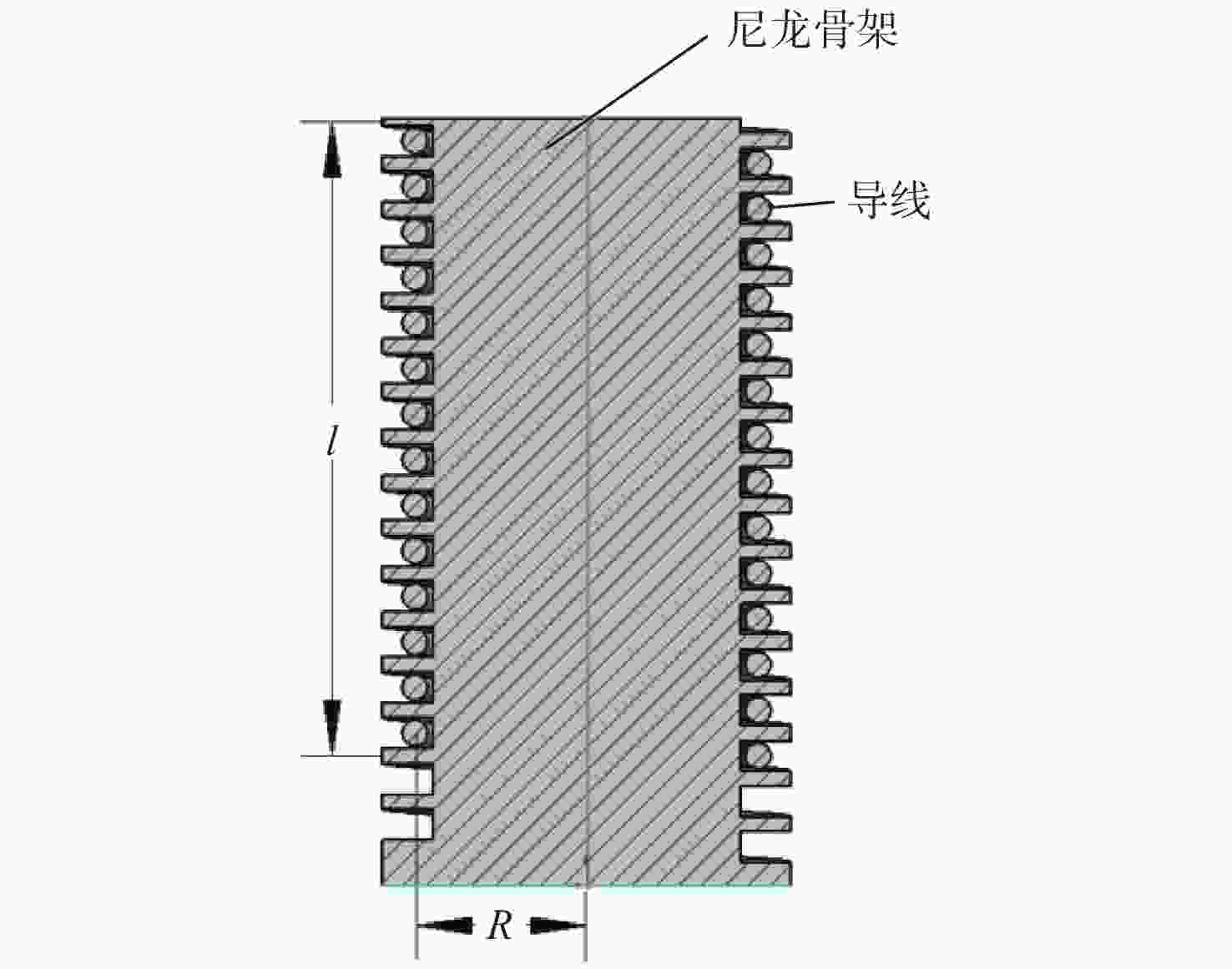

    图  电感线圈的剖面图

    Figure  7.  Section of inductance coil

    图  LISN去耦性能试验配置

    Figure  8.  Configuration for LISN decoupling performance test

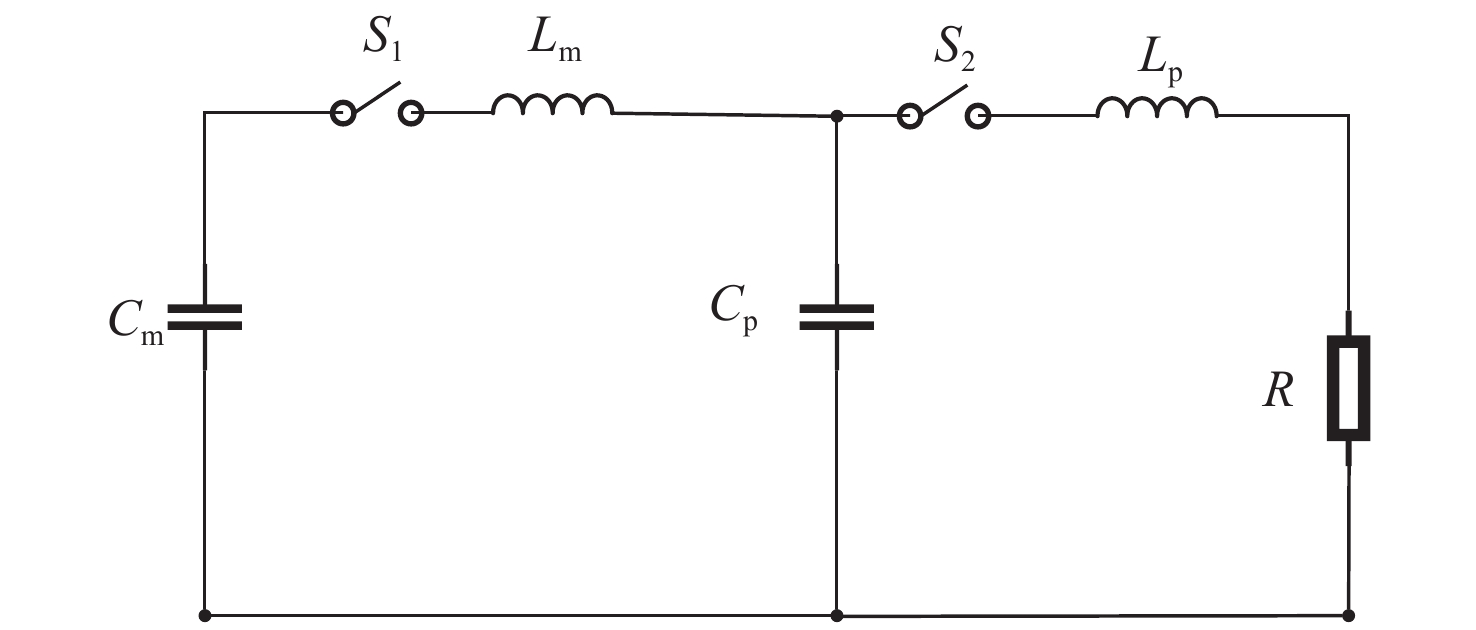

    图  EMP脉冲发生器的简化电路结构

    Figure  9.  Simplified circuit structure of EMP pulse generator

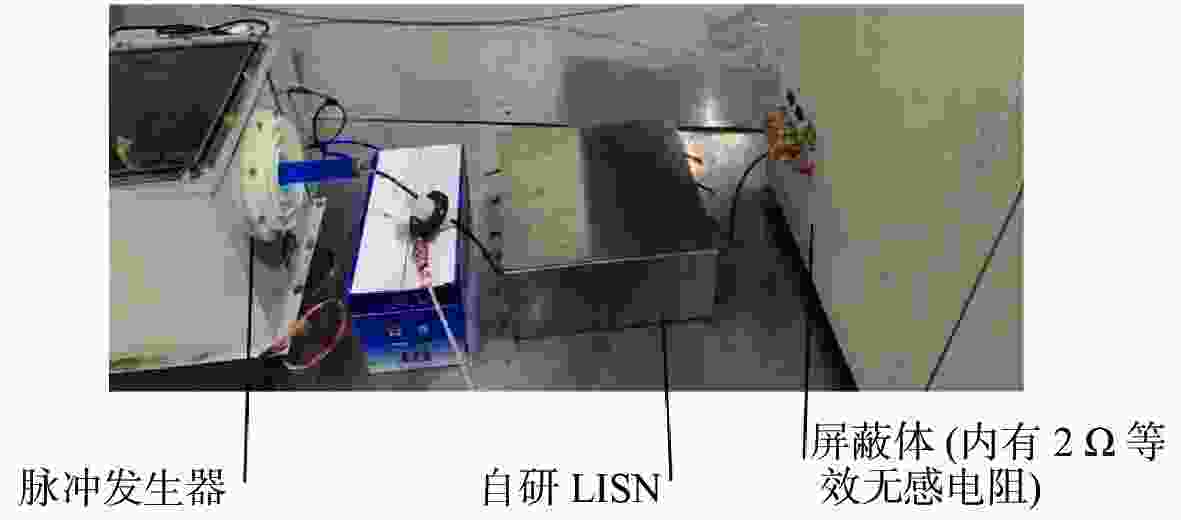

    图  10  LISN去耦性能试验平台

    Figure  10.  LISN decoupling performance test platform

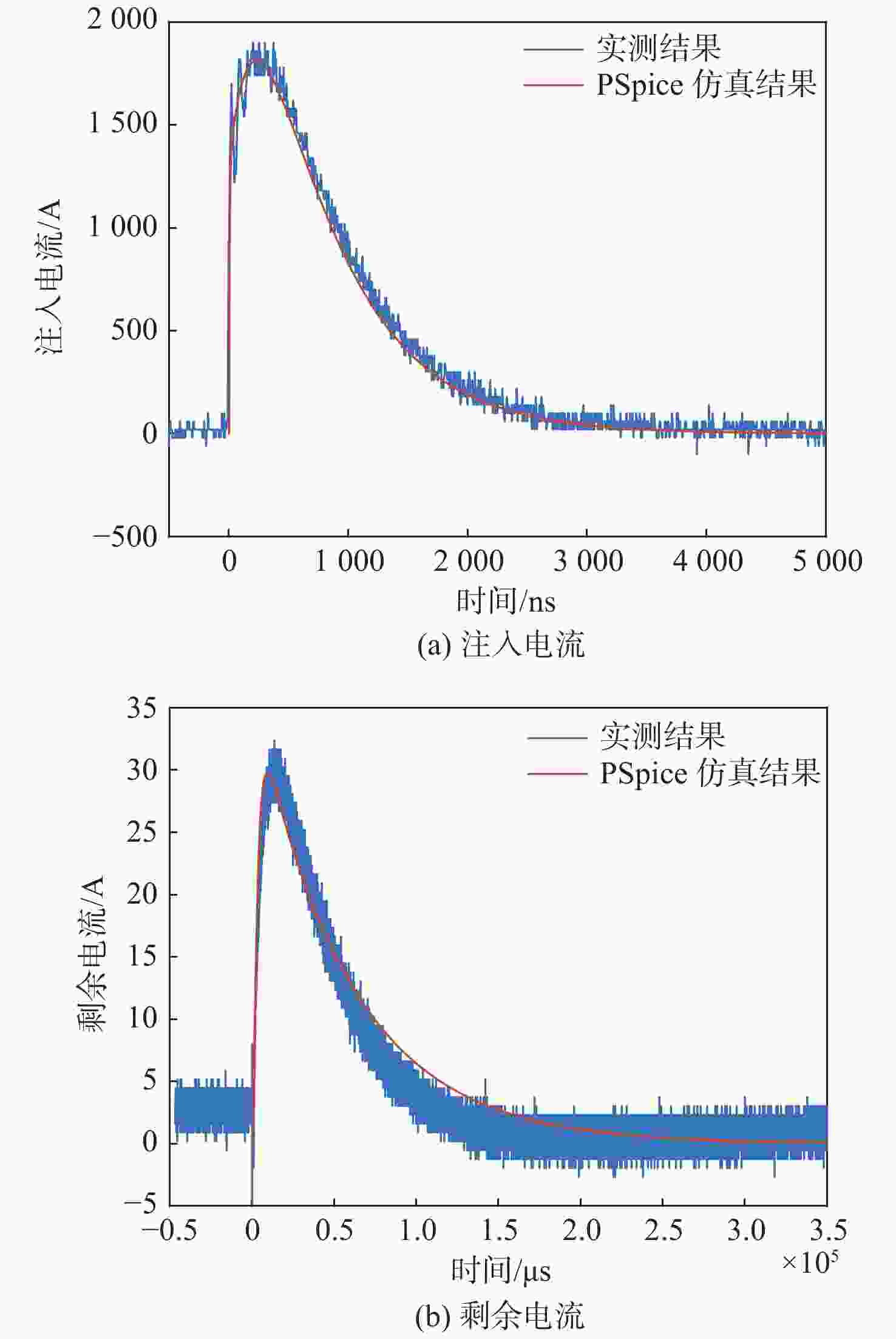

    图  11  去耦性能的试验结果与仿真结果对比

    Figure  11.  Comparison between test results and simulation results of decoupling performance

    图  12  LISN阻抗曲线测量方法

    Figure  12.  Measurement method of LISN impedance curve

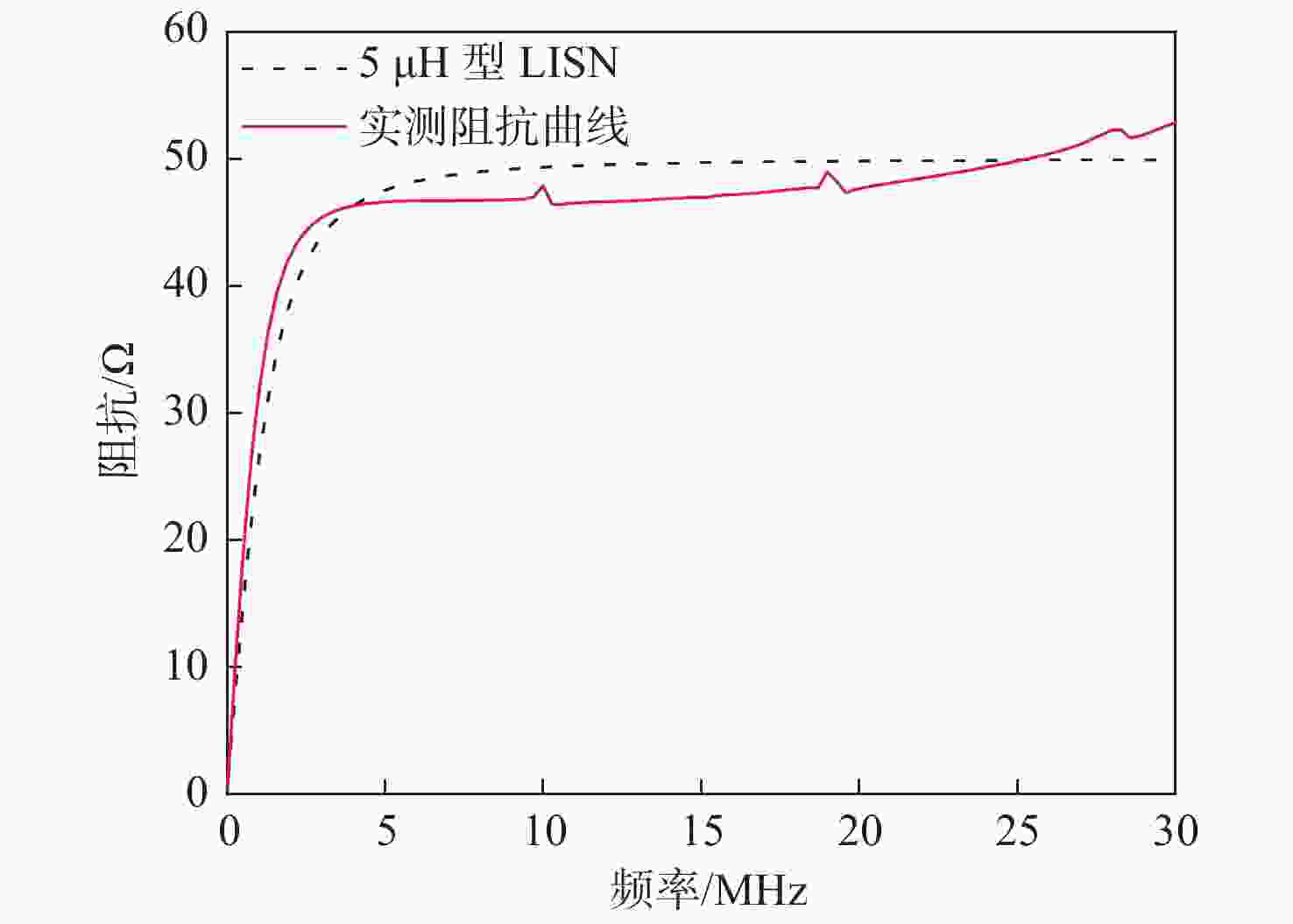

    图  13  新型LISN阻抗曲线的实测值与标准值对比

    Figure  13.  Comparison between measured results of new type LISN impedance curve and standard curve

    表  LISN参数

    Table  1.  LISN parameters

    参数数值
    L1/μH5
    L2/μH5
    C1/μF30
    C2/μF0.22
    R150
    下载: 导出CSV
