Influence of ship motion on radar cross section probability density under grazing incidence
-
摘要:
目的 航行运动产生的姿态变化会导致对自身雷达散射截面积（RCS）概率密度发生变化，因此有必要掌握舰船在各种运动工况时对掠入射下自身的RCS概率密度的影响程度。 方法 利用准静态的思路，构建水动力和电磁散射特性联合仿真模型及计算流程，选取掠入射下10 GHz连续波作为探测雷达波威胁，对不同统计时间、海况、航速、航向等参数下的舰船本体RCS概率分布进行对比和分析。 结果 结果表明，对数正态分布模型可较好地模拟船模静态RCS分布特性，统计时间大于250 s后动态RCS概率分布基本稳定；在低海况下及随浪或顶浪航行时动态RCS概率分布曲线存在“毛刺”现象。 结论 研究表明，航速对舰船RCS概率密度分布的影响可以忽略；浪向角对舰船RCS概率密度分布的影响在较高海况时才明显；海况增加使得RCS分布概率曲线越来越顺滑；统计时间对RCS概率密度分布的影响较大，需积累足够的数据进行试验或仿真才能准确掌握舰船RCS概率分布特性。 -
关键词:
- 舰船 /
- 雷达散射截面（RCS） /
- 运动状态 /
- 概率密度

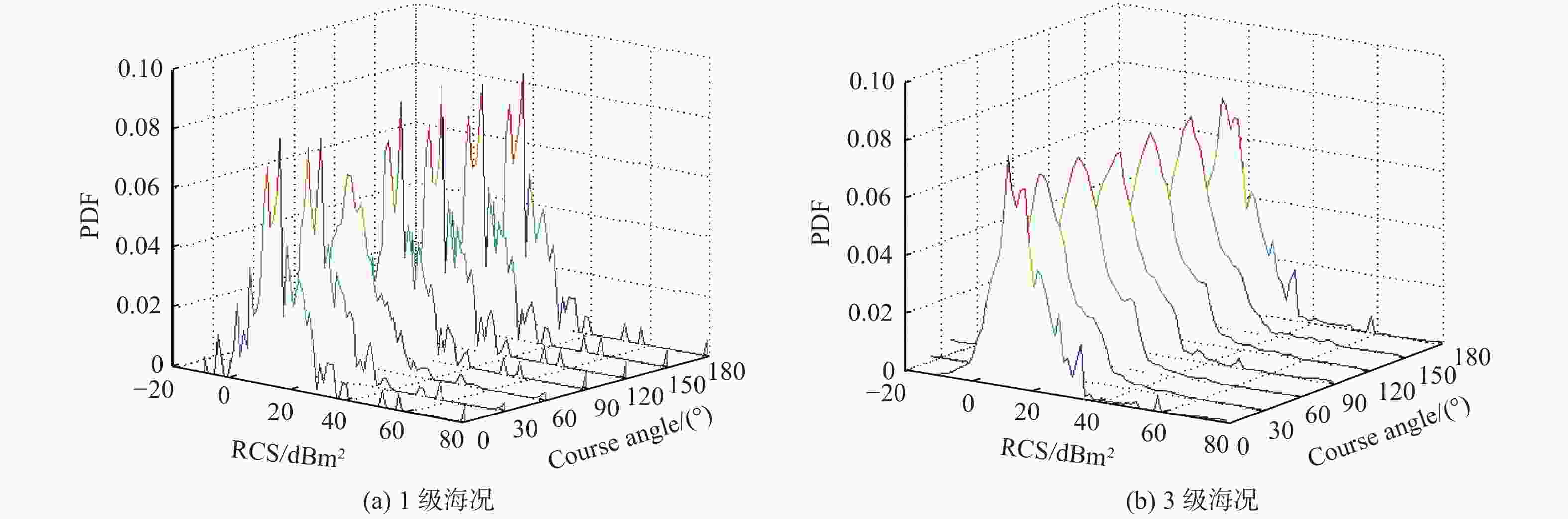

Abstract:Objectives Changes in attitude caused by sailing motion will lead to changes in the probability density of the radar cross section (RCS) of a ship. As such, it is necessary to master the influence degree of various motion conditions on the probability density of the RCS of a ship under grazing incidence. Method Using the quasi-static method, a hydrodynamic and electromagnetic scattering characteristic co-simulation model and calculation process are constructed. A 10 GHz continuous wave at grazing incidence is selected as the radar detection wave threat, and the RCS probability distributions of the ship's body under different statistical times, sea states, speeds, headings and other parameters are compared and analyzed. Result A lognormal distribution model is used to simulate the distribution characteristics of the static RCS of the ship model. The probability distribution of the dynamic RCS is basically stable when the statistical time is longer than 250 seconds. There exists a "burr" phenomenon in the dynamic RCS probability distribution curve under low sea states, following waves or beam sea drifting conditions. Conclusion The effects of the ship's speed on its RCS probability density distribution can be ignored. The influence of the sea wave direction angle on the RCS probability density distribution is obvious only in high sea states. The increase of the sea state makes the RCS distribution probability curve increasingly smooth. Statistical time has a great influence on the RCS probability density distribution, so it is necessary to accumulate sufficient data to carry out a test or simulation that can provide an accurate grasp of a ship's RCS probability distribution characteristics. -
Key words:
- ship /
- radar cross section (RCS) /
- ship motion /
- statistical properties
-

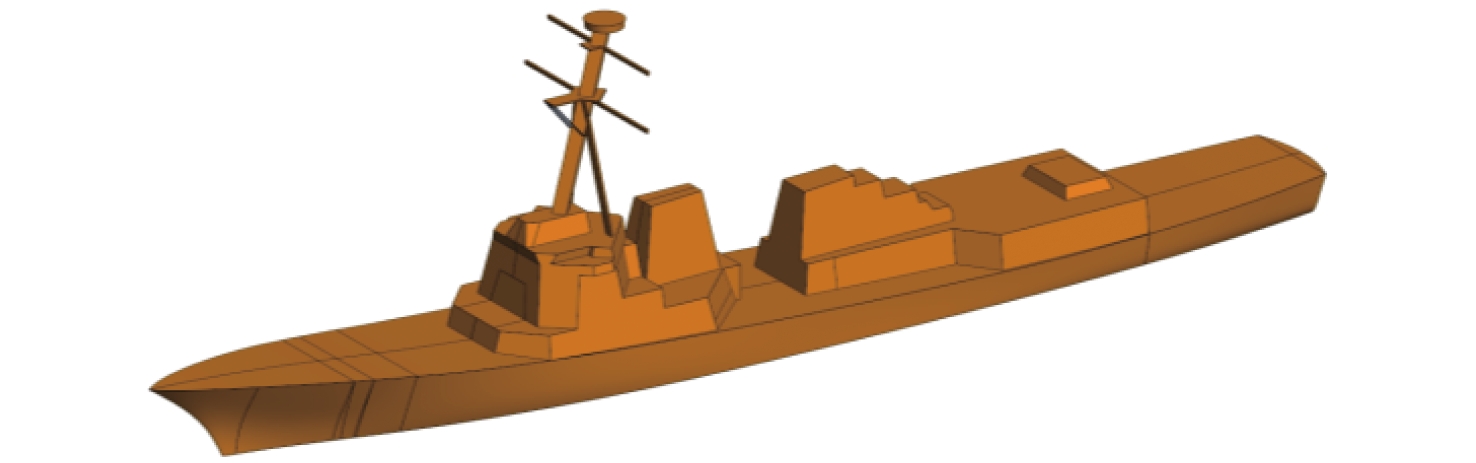

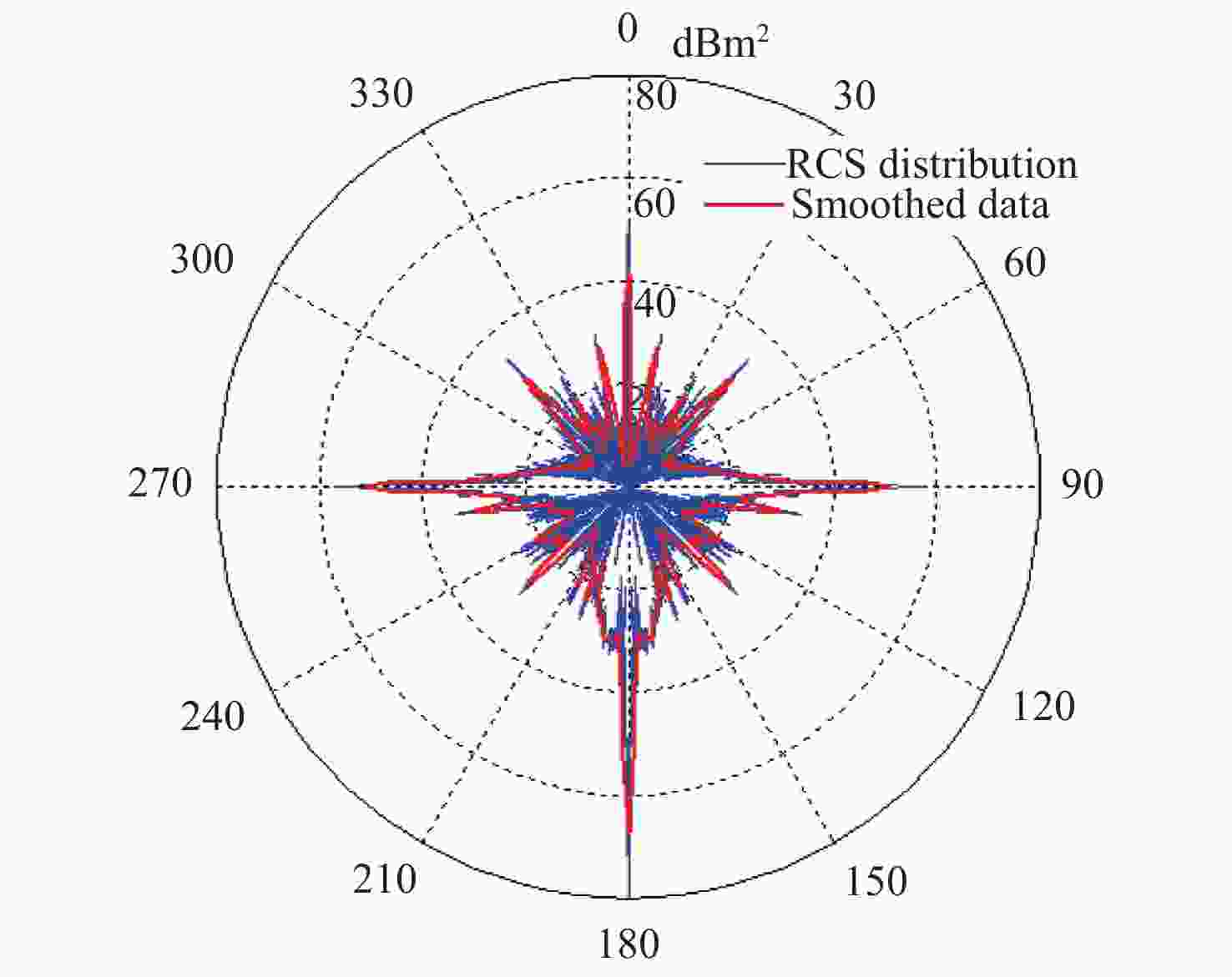

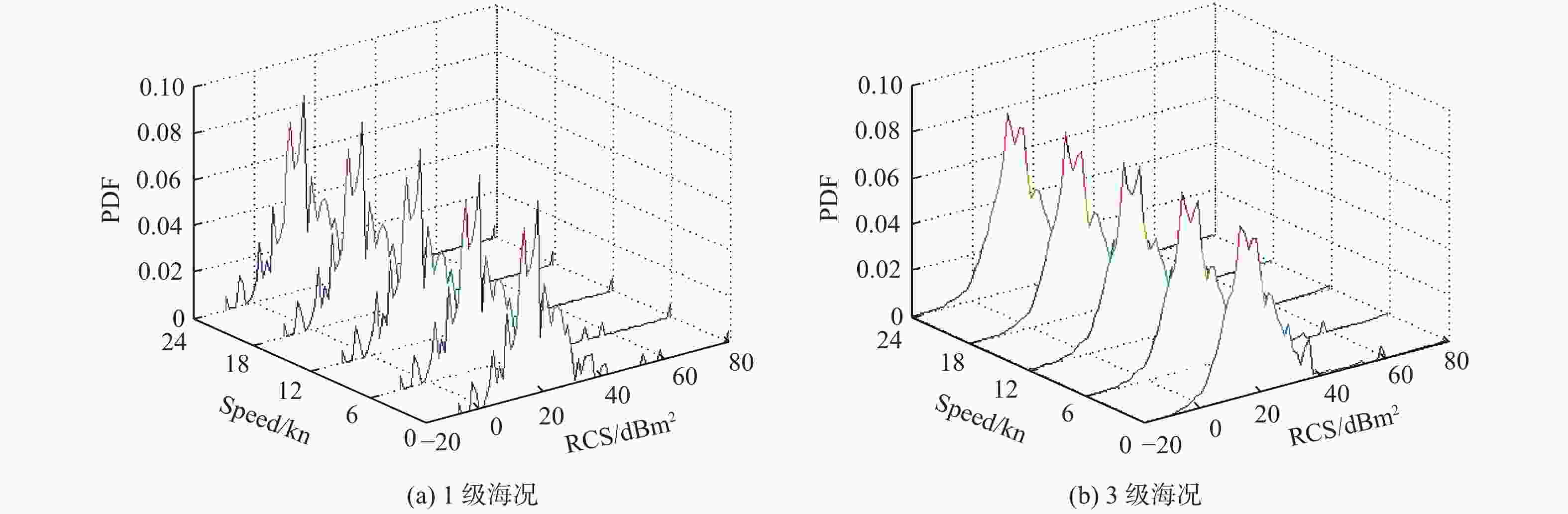

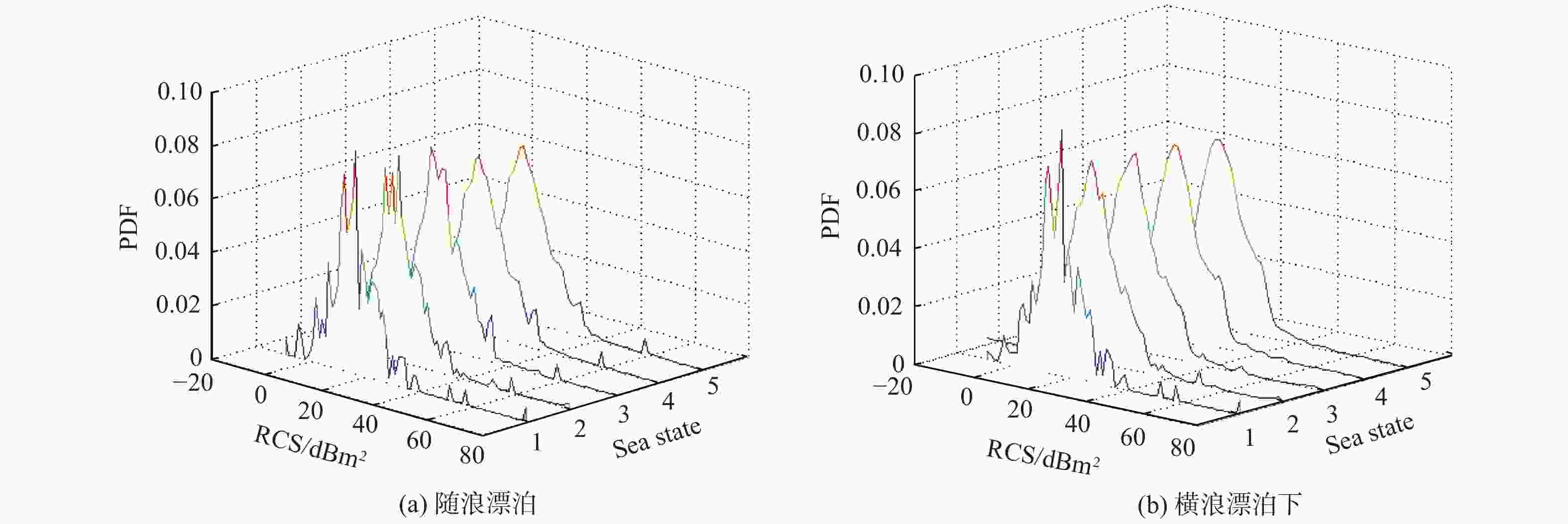

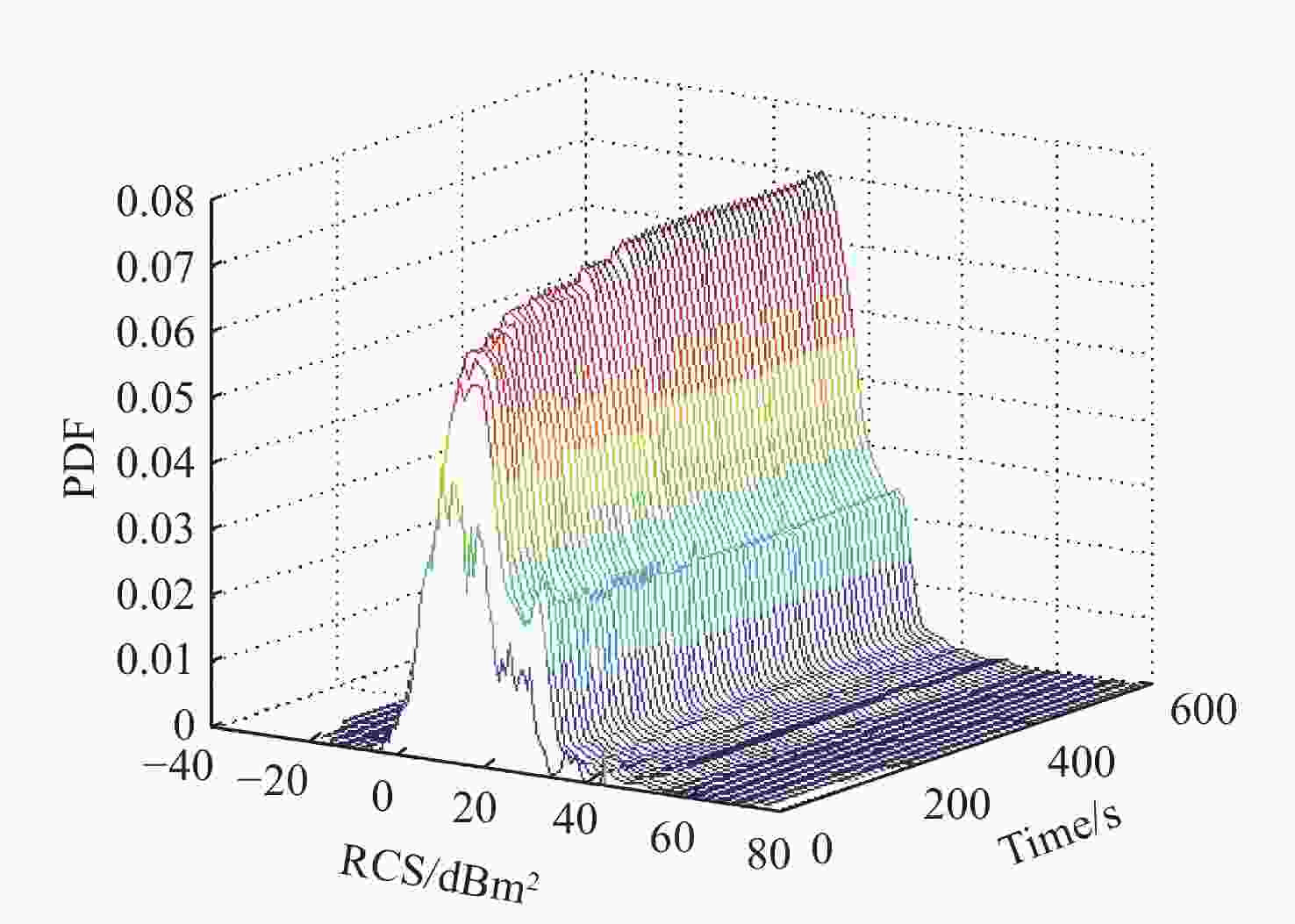

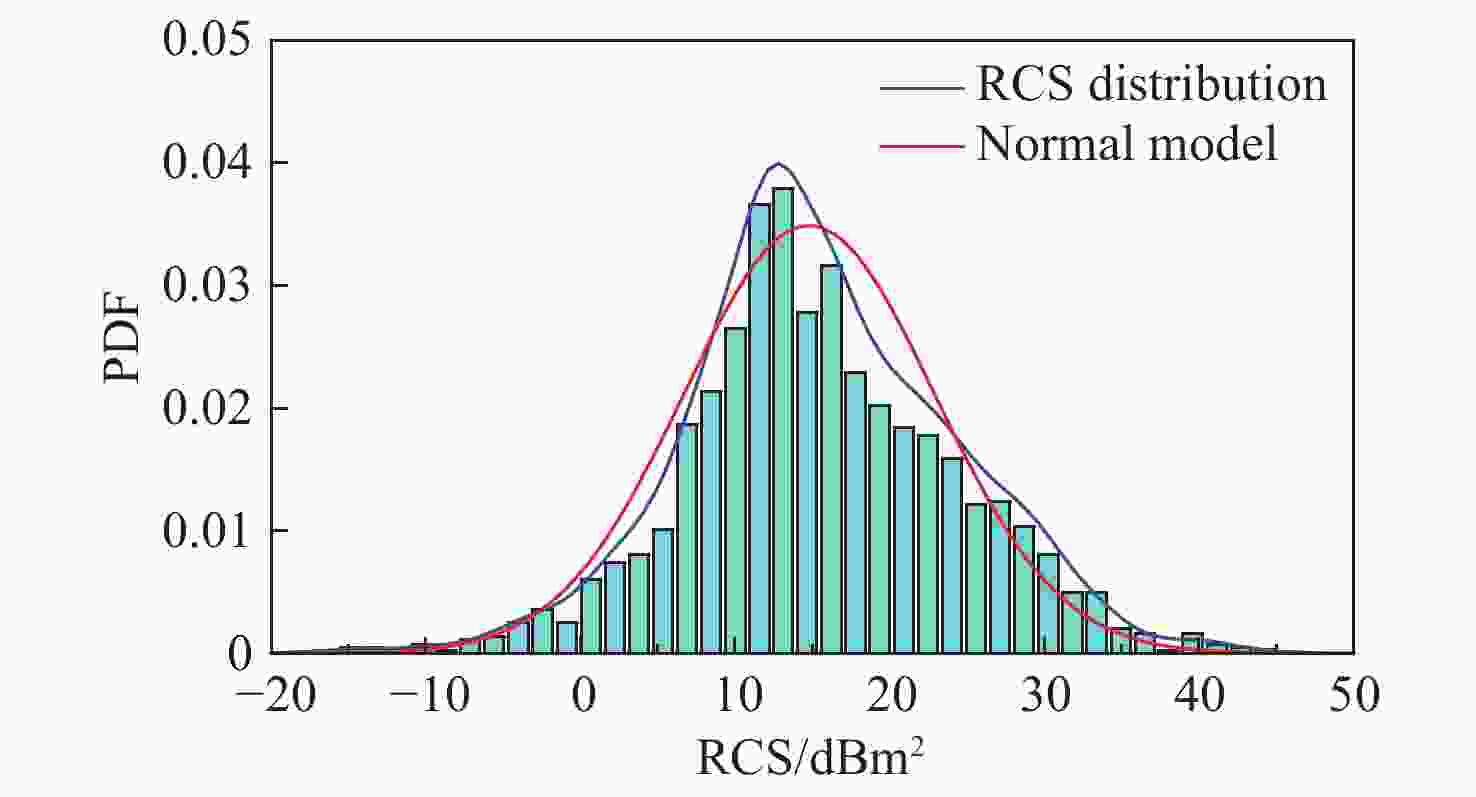

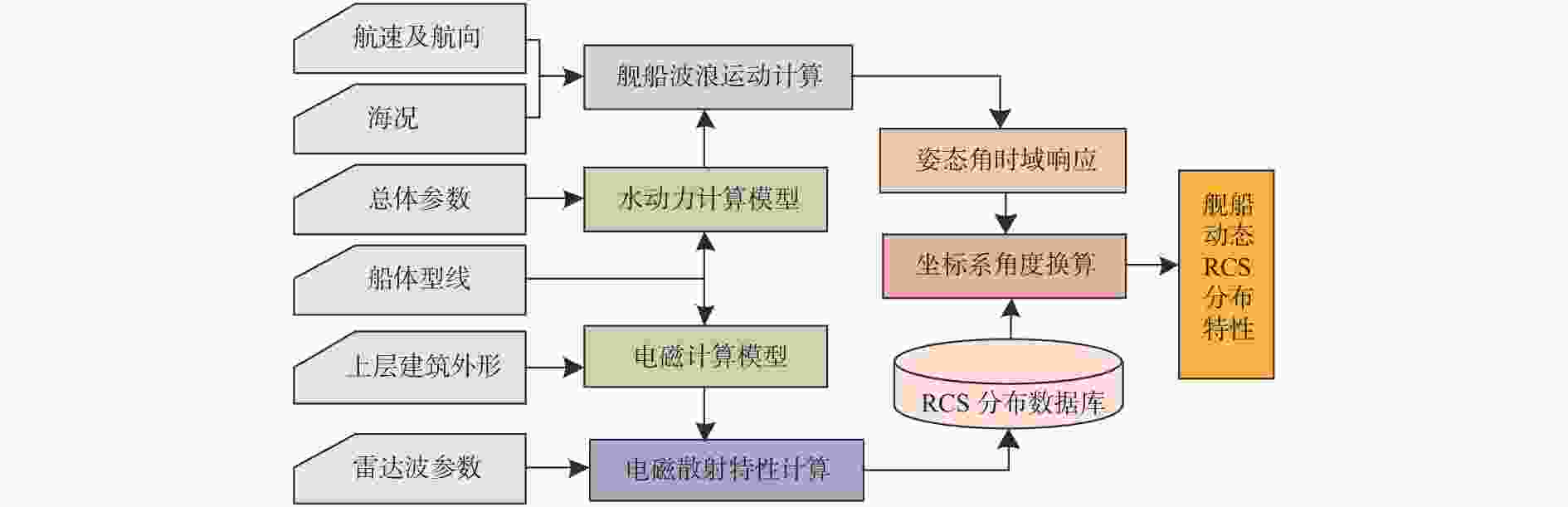

图 5 海水扰动下舰船动态RCS仿真流程图
Figure 5. Simulation flow chart of ship's dynamic RCS under seawater disturbance
-
[1] 许小剑, 姜丹, 李晓飞. 时变海面舰船目标动态雷达特征信号模型[J]. 系统工程与电子技术, 2011, 33(1): 42–47. doi: 10.3969/j.issn.1001-506X.2011.01.09XU X J, JIANG D, LI X F. Modeling of dynamic radar signatures for ships on time-varying sea surface[J]. Sys-tems Engineering and Electronics, 2011, 33(1): 42–47 (in Chinese). doi: 10.3969/j.issn.1001-506X.2011.01.09 [2] KIM K, KIM J H, KIM Y H, et al. Numerical investigation on dynamic radar cross section of naval ship considering ocean wave-induced motion[J]. Progress in Electromagnetics Research M, 2012, 27(2): 11–26. [3] 陈世春, 黄沛霖, 姬金祖. 从探测概率的角度评价飞机的隐身性能[J]. 航空学报, 2015, 36(4): 1150–1161.CHEN S C, HUANG P L, JI J Z. Evaluating aircraft's stealth performance from the perspective of detection prob-ability[J]. Acta Aeronautica et Astronautica Sinica, 2015, 36(4): 1150–1161 (in Chinese). [4] 沈鹏. 海面舰船RCS起伏分布模型研究[J]. 指挥控制与仿真, 2019, 41(4): 37–39. doi: 10.3969/j.issn.1673-3819.2019.04.008SHEN P. RCS fluctuation distribution models research of ship target on sea[J]. Command Control & Simulate, 2019, 41(4): 37–39 (in Chinese). doi: 10.3969/j.issn.1673-3819.2019.04.008 [5] 戴崇, 徐振海, 肖顺平. 雷达目标动静态RCS特性差异分析[J]. 信号处理, 2013, 29(9): 1256–1263. doi: 10.3969/j.issn.1003-0530.2013.09.025DAI C, XU Z H, XIAO S P. Analysis for differences between dynamic and static RCS characteristics of radar target[J]. Journal of Signal Processing, 2013, 29(9): 1256–1263 (in Chinese). doi: 10.3969/j.issn.1003-0530.2013.09.025 [6] 庄亚强, 张晨新, 周超, 等. 飞机动态RCS序列的仿真研究[J]. 电光与控制, 2014, 21(7): 103–106. doi: 10.3969/j.issn.1671-637X.2014.07.023ZHUANG Y Q, ZHANG C X, ZHOU C, et al. Simulation of dynamic RCS series of aircraft[J]. Electronics Optics & Control, 2014, 21(7): 103–106 (in Chinese). doi: 10.3969/j.issn.1671-637X.2014.07.023 [7] 晏青, 熊峻江, 游思明. 基于动态RCS的无人机航迹实时规划[J]. 北京航空航天大学学报, 2011, 37(9): 1115–1121.YAN Q, JUN J J, YOU S M. Real-time programming method for flight path of unmanned vehicle based on dynamic RCS[J]. Journal of Beijing University of Aeronautics and Astronautics, 2011, 37(9): 1115–1121 (in Chinese). [8] 薛丰利, 黄沛霖, 罗蒙浩, 等. 指挥台围壳雷达隐身性数值模拟[J]. 中国舰船研究, 2016, 11(6): 15–21. doi: 10.3969/j.issn.1673-3185.2016.06.003XUE F L, HUANG P L, LUO M H, et al. Numerical simulation for the stealth performance of submarine sails[J]. Chinese Journal of Ship Research, 2016, 11(6): 15–21 (in Chinese). doi: 10.3969/j.issn.1673-3185.2016.06.003 [9] 李抟, 田博, 李铁, 等. 基于RCS起伏模型的箔条云近场实测数据分析方法[J]. 探测与控制学报, 2020, 42(2): 52–55.LI T, TIAN B, LI T, et al. Near-field measured data analysis of chaff cloud based on RCS fluctuation model[J]. Journal of Detection & Control, 2020, 42(2): 52–55 (in Chinese). [10] SHNIDMAN D A. Calculation of probability of detection for log-normal target fluctuations[J]. IEEE Trans-actions on Aerospace and Electronic Systems, 1991, 27(1): 172–174. doi: 10.1109/7.68161 [11] 陈世春, 黄沛霖, 姬金祖. 典型隐身飞机的RCS起伏统计特性[J]. 航空学报, 2014, 35(12): 3304–3314.CHEN S C, HUANG P L, JI J Z. Radar cross section fluctuation characteristics of typical stealth aircraft[J]. Acta Aeronautica et Astronautica Sinica, 2014, 35(12): 3304–3314 (in Chinese). [12] CHEN X, ZHU R C, ZHAO J, et al. Study on weakly nonlinear motions of ship advancing in waves and influences of steady ship wave[J]. Ocean Engineering, 2018, 150: 243–257. doi: 10.1016/j.oceaneng.2017.12.053 [13] US navy combatant, DTMB 5415[EB/OL]. 2008. http://www.simman2008.dk/5415/5415_geometry.htm. [14] ZHANG M, ZHAO Y, LI J X, et al. Reliable approach for composite scattering calculation from ship over a sea surface based on FBAM and GO-PO models[J]. IEEE Transactions on Antennas and Propagation, 2017, 65(2): 775–784. doi: 10.1109/TAP.2016.2633066 [15] 黄亚林, 张晨新, 刘凯越, 等. 基于动态RCS的隐身目标检测研究[J]. 微波学报, 2017, 33(1): 58–62.HUANG Y L, ZHANG C X, LIU K Y, et al. A study on detection of stealth target based on dynamic RCS[J]. Journal of Microwaves, 2017, 33(1): 58–62 (in Chinese). -
