Wide-area ship target recognition method based on motion and appearance features

1.
Wenzheng College, Soochow University, Suzhou 215104, China
2.
School of Electronic and Information Engineering, Soochow University, Suzhou 215006, China

基于运动与表象特征的广域船舶目标识别方法由严荣慧，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 目的旨在提出对航行于关键广阔水域内的船舶进行准确识别和定位的改进方法。方法运用视频监控的优点，综合采用基于背景差分算法的运动目标检测方法与基于深度学习算法的图像表象特征识别方法，结合目标的运动特征和图像表象特征，实现多维度广域船舶识别的功能，并对水纹降噪、多级运动检测、航道监控图像窗口分割检测等方法进行改进，进一步提高航行监控系统的船舶识别准确率。结果现场航道监控验证结果表明，采用所提改进方法可以准确识别航道监控画面中任意类型和尺度的船舶，且使用常规摄像头即可实现半径3 km范围内的船舶识别、定位效果。结论所提方法具有监控范围广、船舶类型全覆盖、自动目标识别、抗干扰能力强等优点。
- 广域航道监控 /
- 船舶识别 /
- 运动检测 /
- 多维特征 /
- YOLO检测算法
Abstract: Objective The aim of this paper is to proposes methods for better recognizing and positioning ships sailing in critical and wide-area waterways during monitoring operation. Methods Based on video surveillance technology, the joint use of the motion and appearance features of ship target is carried out to realize a wide-area multi-dimensional recognition function via the combination of background subtraction based moving object detection algorithm and deep learning based target recognition algorithm. In addition, the improved approaches including water ripple noise reduction, hierarchical moving object detection and window segmentation of waterway monitoring image are put forward to further improve recognition accuracy. Results The field demonstration results show that the improved methods proposed in this paper allow the accurate recognition of a ship of any type or size on the monitoring screen, and the use of conventional cameras can also achieve the recognition and position of a ship navigating a water area within a radius of 3 km. Conclusions The improved methods proposed in this study have a range of advantages including wide-area monitoring, complete coverage of ship types and sizes, automatic target recognition and robust anti-interference ability.
- wide-area waterway monitoring /
- ship recognition /
- motion detection /
- multi-dimensional features /
- YOLO detection algorithm

HTML全文

图 1 航道监控中远、近水域内船舶目标对比

Figure 1. Comparison of ship target in the far and near water areas during waterway monitoring

下载: 全尺寸图片幻灯片

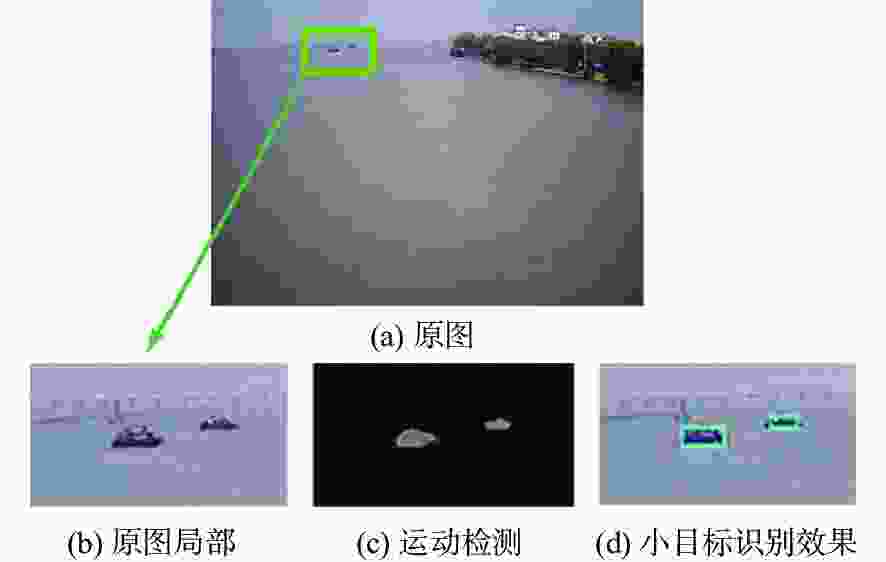

图 2 基于背景差分算法对小目标船舶的识别效果

Figure 2. Recognition effect of small-sized ship target by background subtraction algorithm

下载: 全尺寸图片幻灯片

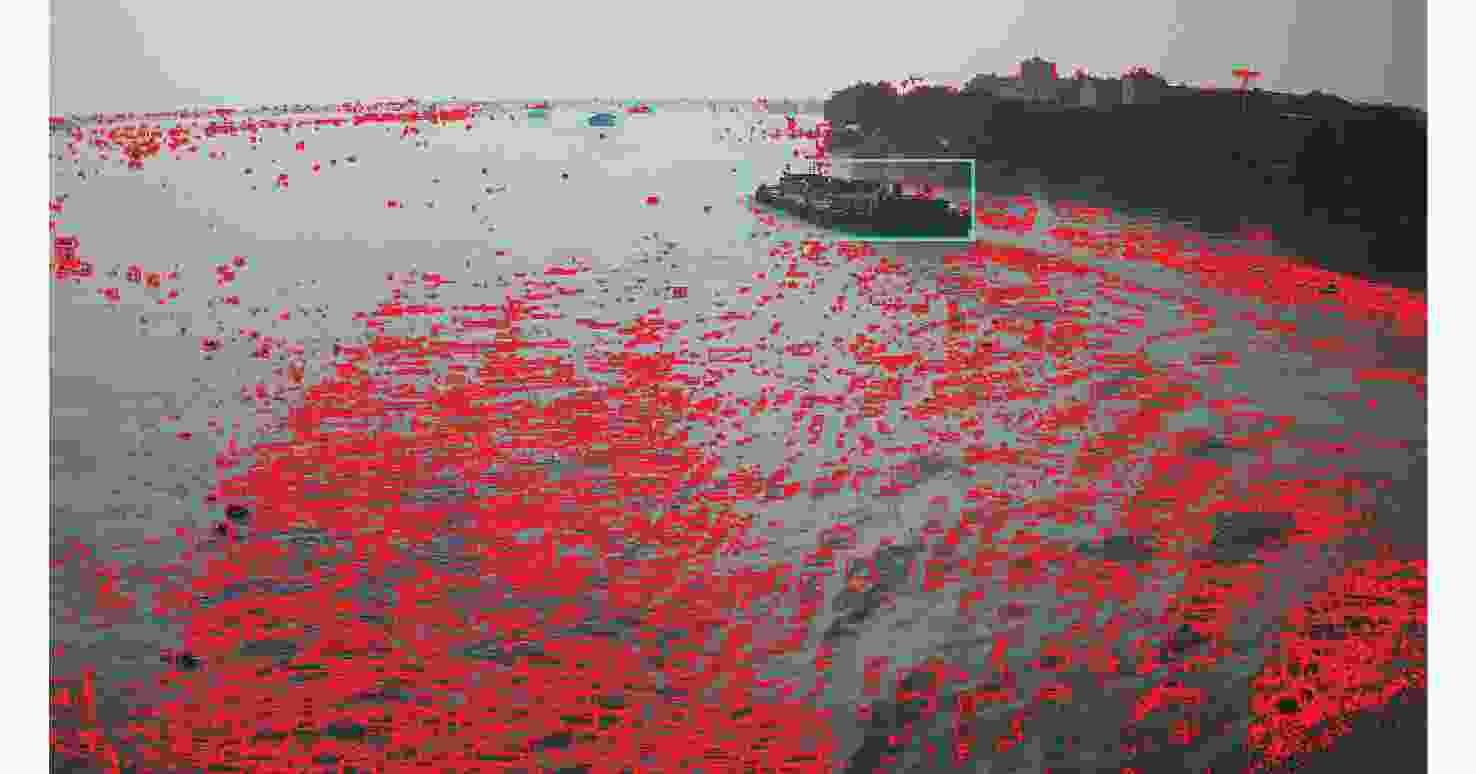

图 3 基于背景差分算法对运动目标检测效果

Figure 3. Detection effect of motion target by background subtraction algorithm

下载: 全尺寸图片幻灯片

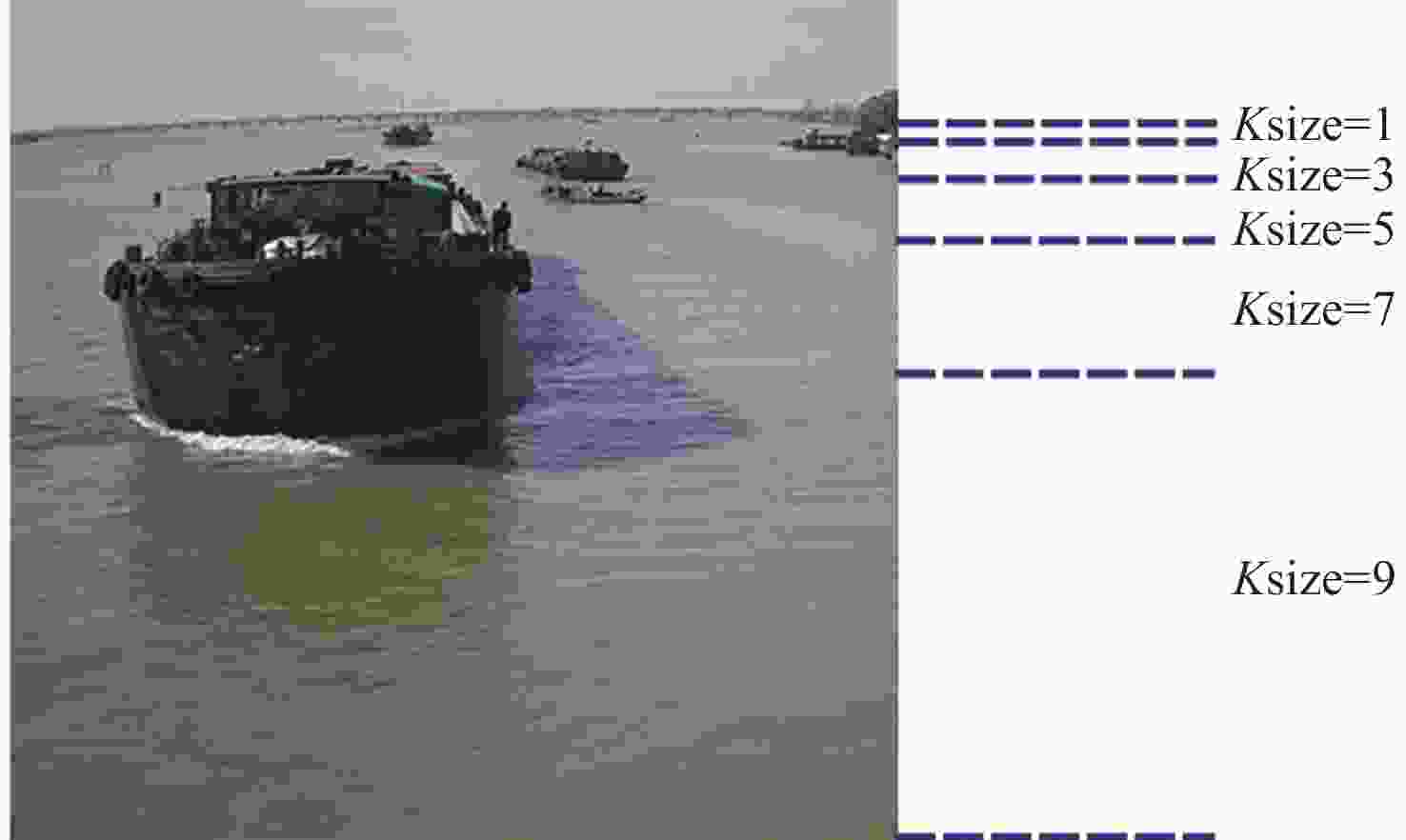

图 4 渐变滤波示意图

Figure 4. Schematic diagram of gradual filtering

下载: 全尺寸图片幻灯片

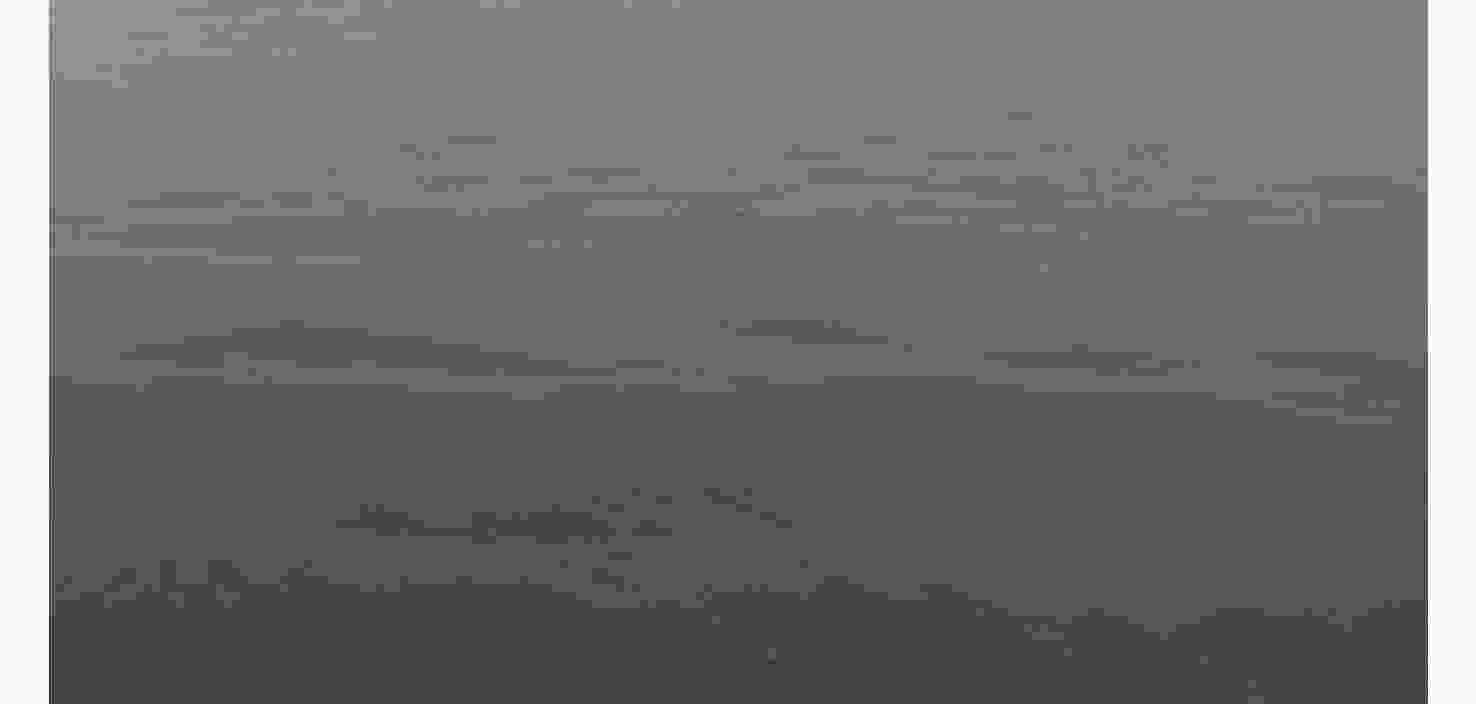

图 5 水纹噪声特征

Figure 5. Features of water ripple noise

下载: 全尺寸图片幻灯片

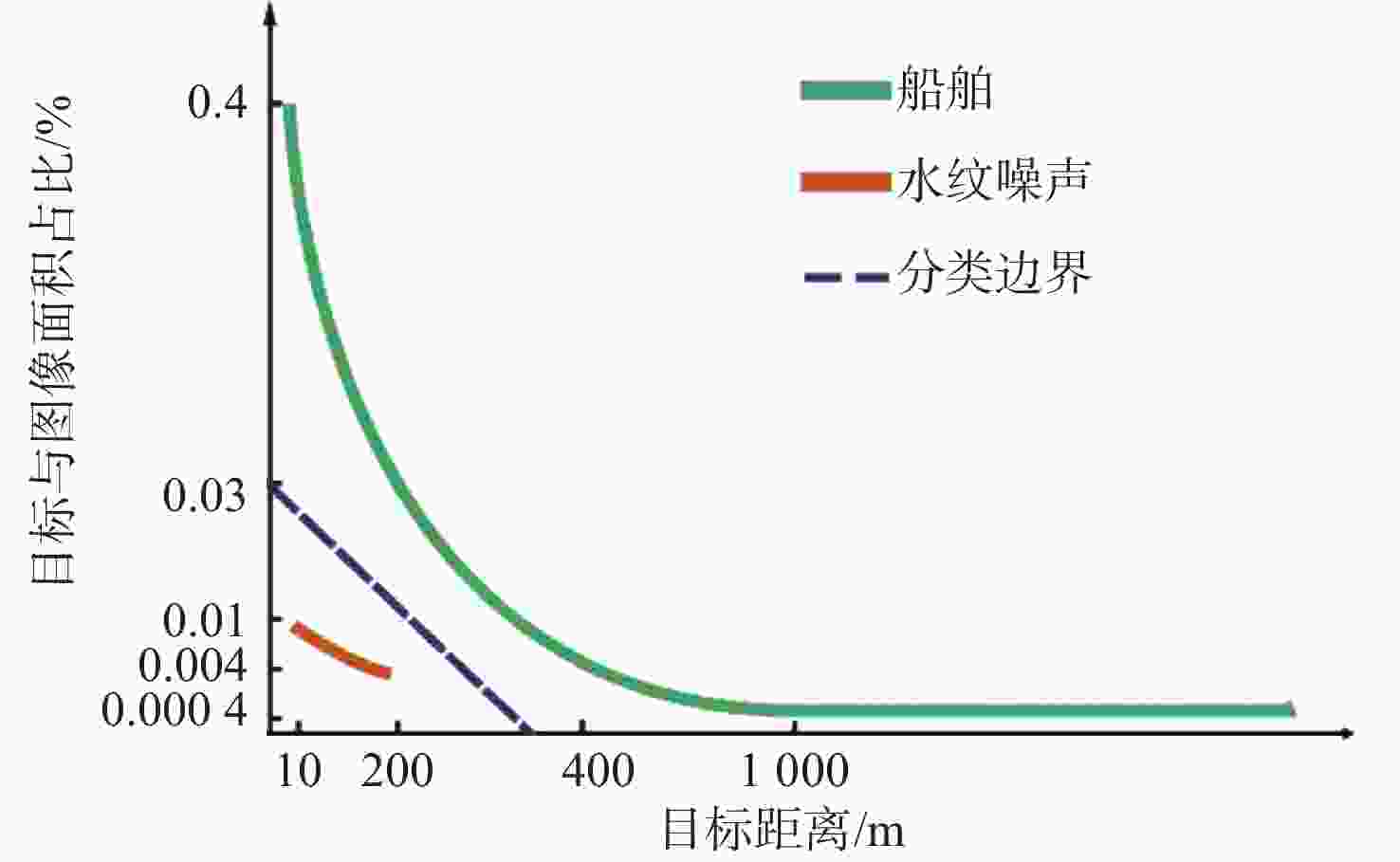

图 6 航道中目标面积占比与目标距离的关系

Figure 6. The relationship between targets area ratio and target distance

下载: 全尺寸图片幻灯片

图 7 水纹滤波效果图

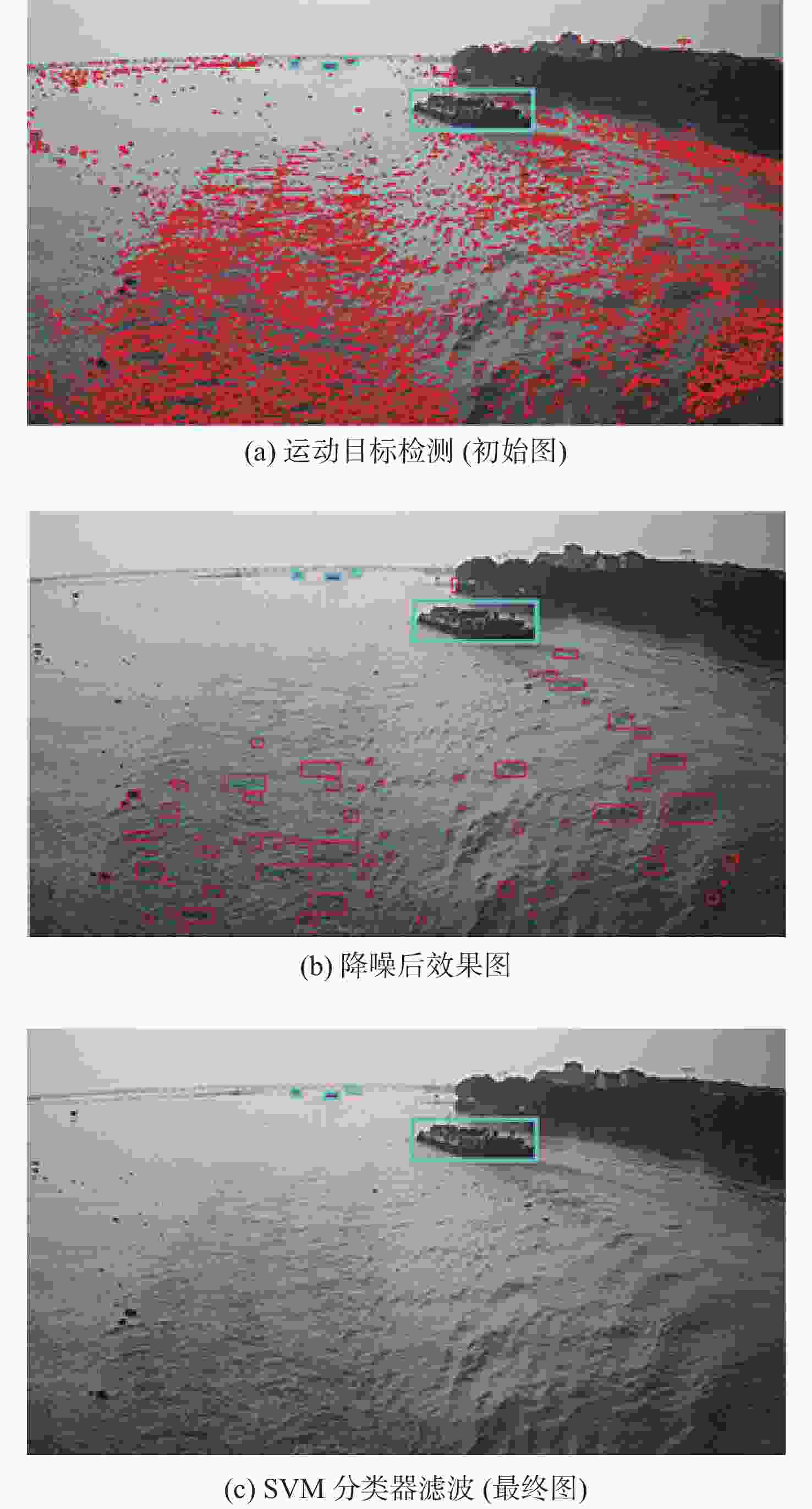

Figure 7. Effect images of water ripple filtering

下载: 全尺寸图片幻灯片

图 8 快慢二级运动目标检测结果

Figure 8. Results of two-level detection for the fast and slow motion targets

下载: 全尺寸图片幻灯片

图 9 中间带水域内小目标船舶检测图像

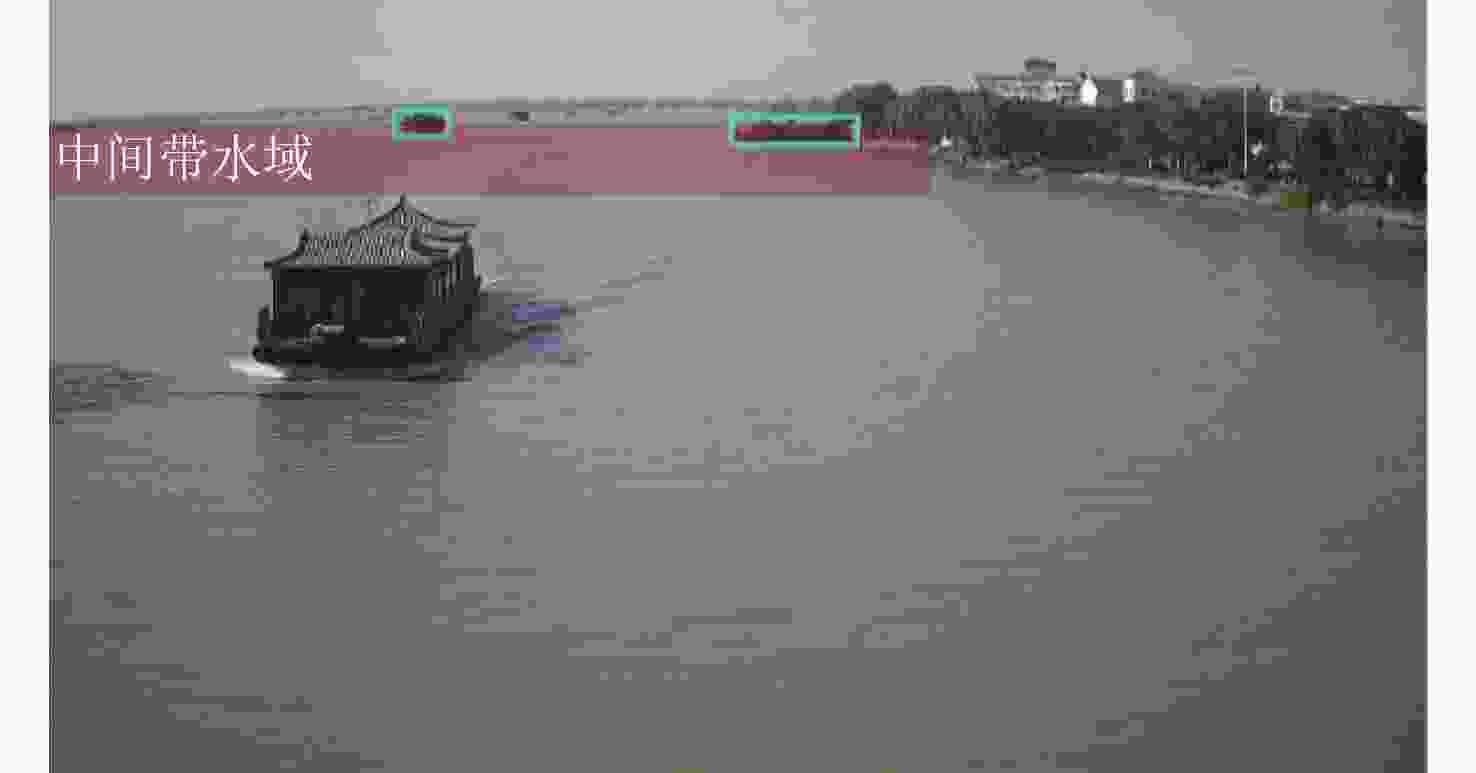

Figure 9. Image of detected small-sized ship target in the intermediate waterways

下载: 全尺寸图片幻灯片

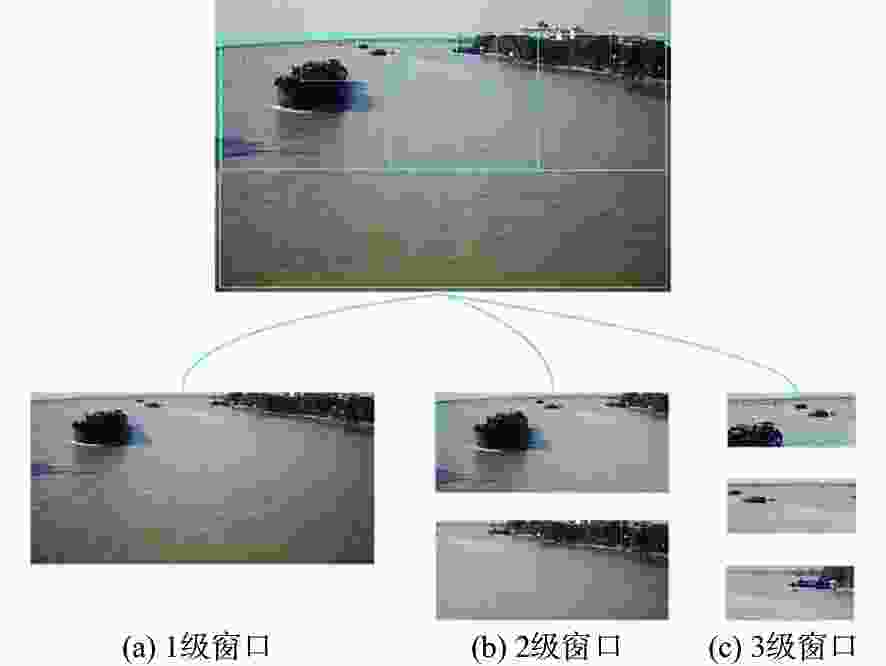

图 10 航道监控画面中的窗口分割

Figure 10. Window segmentation of waterway monitoring image

下载: 全尺寸图片幻灯片

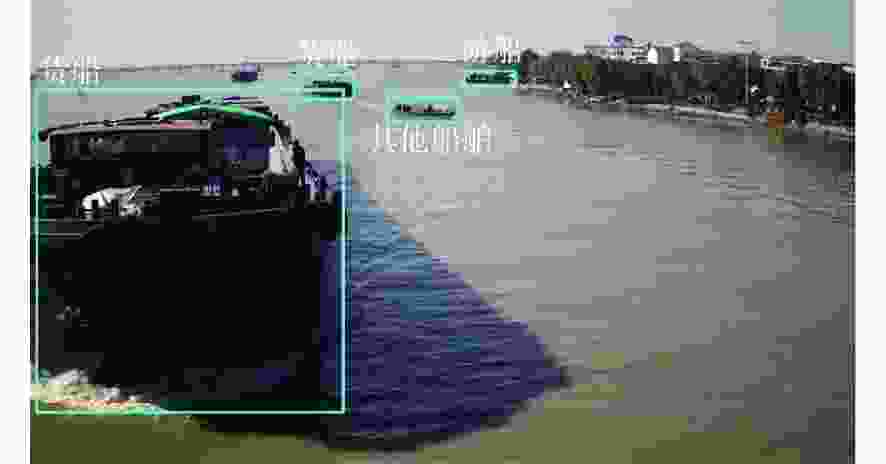

图 11 基于YOLO检测算法的船舶目标识别效果

Figure 11. Effect of ship target recognition based on YOLO detection algorithm

下载: 全尺寸图片幻灯片

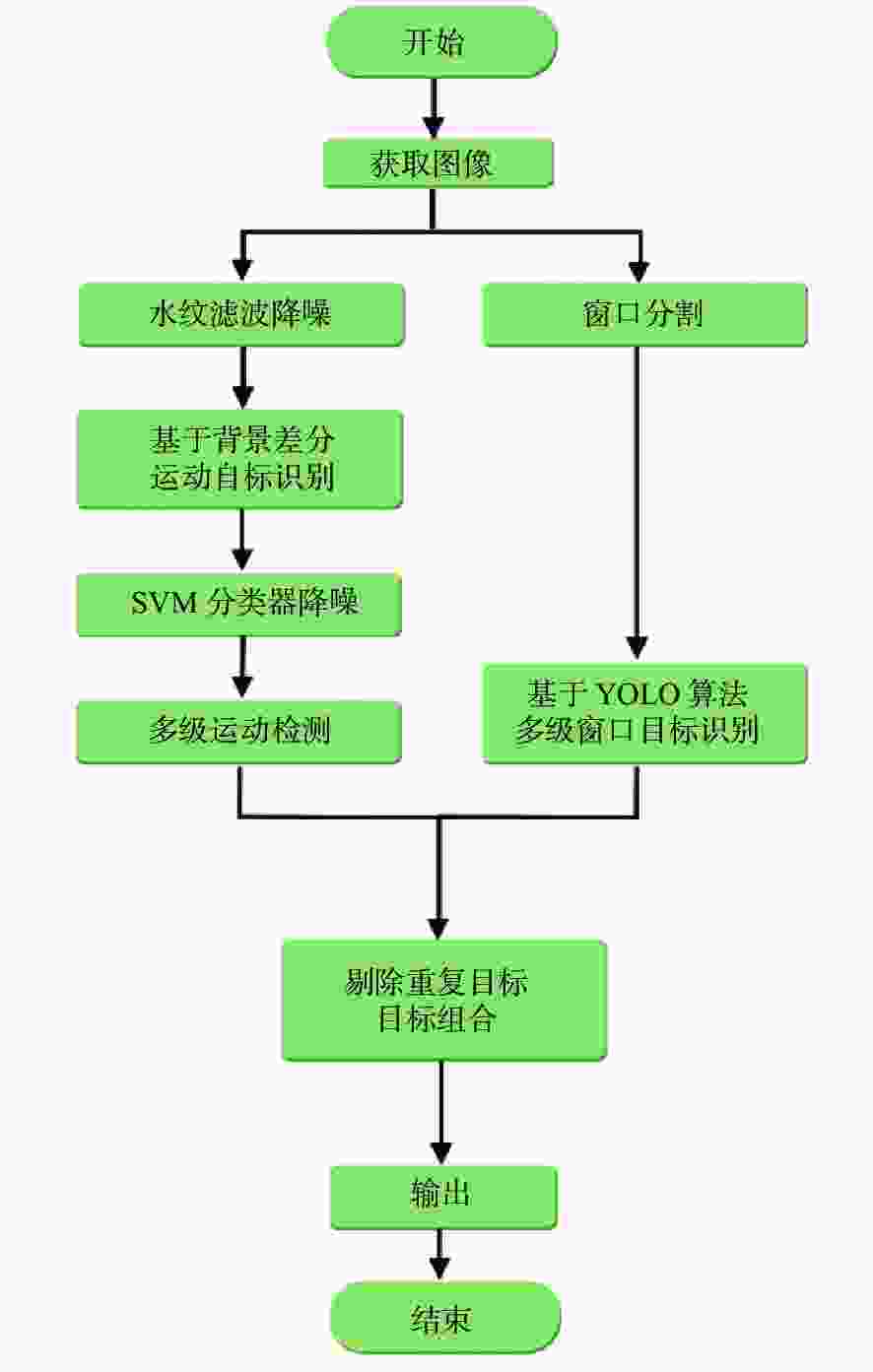

图 12 基于二维特征的船舶目标识别流程图

Figure 12. Process of ship target recognition based on two-dimensional features

下载: 全尺寸图片幻灯片

图 13 基于二维特征的船舶目标识别效果

Figure 13. Effect of ship target recognition based on two-dimensional features

下载: 全尺寸图片幻灯片

表 1 船舶目标识别原算法与其改进方法检测效果对比

Table 1. Effect comparison of ship target recognition by original and improved algorithms

方法	识别准确率/%	识别召回率/%	最远识别距离/km	能否识别类型
背景差分算法	<0.01	97.8	3	否
YOLO检测算法	95.1	54.7	0.2	能
基于水纹滤波和多级检测的背景差分目标识别	68.4	98.4	3	否
基于窗口分割的 YOLO目标识别	97.2	68.5	0.4	能
基于改进窗口分割和 YOLO目标识别	97.2	98.4	3	能

下载: 导出CSV
