水蒸汽参数对密封动静特性的影响

何文强; 郑志豪; 张万福

doi:10.3969/j.issn.1673-3185.2017.05.016

水蒸汽参数对密封动静特性的影响

doi: 10.3969/j.issn.1673-3185.2017.05.016

1.
中国舰船研究设计中心, 上海 201108
2.
上海理工大学能源与动力工程学院, 上海 200093

基金项目:

国家自然科学基金青年科学基金资助项目 11402148

详细信息

作者简介:
郑志豪, 女, 1990年生, 硕士, 助理工程师

张万福, 男, 1986年生, 博士, 讲师

通信作者:
何文强(通信作者), 男, 1990年生, 硕士, 助理工程师

中图分类号: U664.1
计量
- 文章访问数: 249
- HTML全文浏览量: 64
- PDF下载量: 122
- 被引次数: 0
出版历程
- 收稿日期: 2017-02-13
- 网络出版日期: 2017-09-26
- 刊出日期: 2017-10-01

Influence of steam parameters on static and dynamic characteristics of labyrinth seal

1.
Shanghai Division, China Ship Development and Design Center, Shanghai 201108, China
2.
School of Energy and Power Engineering, University of Shanghai for Science and Technology, Shanghai 200093, China

水蒸汽参数对密封动静特性的影响由何文强，等创作，采用知识共享署名4.0国际许可协议进行许可。

摘要

摘要: 目的为了研究工质参数对透平机械中密封动静特性的影响，方法建立梳齿密封三维数值模型，分别以空气和水蒸汽为工质，应用计算流体力学（CFD）方法和旋转坐标系方法分析不同水蒸汽参数对密封泄漏性能和动力特性系数的影响。结果结果表明：工质为空气和水蒸汽时，密封的泄漏特性区别很大，其流体激振力与涡动速度分别呈线性和二次非线性的变化关系。当水蒸汽温度增加时，密封动力特性系数的变化将导致系统的稳定性下降。结论因此工质参数对透平机械的系统稳定性具有重要意义，在实际应用中需要考虑工质参数对密封动静特性及转子系统的影响。
- 密封 /
- 水蒸汽 /
- 泄漏量 /
- 计算流体力学 /
- 动力特性系数
Abstract: Objectives In order to study the influence of working medium parameters on the static and dynamic characteristics of seals in turbomachinery, Methods a three-dimensional model of a labyrinth seal was created, and air and steam were applied in the numerical simulation. The Computational Fluid Dynamics (CFD) method and a rotating frame were applied to analyze the influence of different steam parameters on the leakage characteristics and dynamic characteristic coefficients. Results The results show that great differences in leakage flow rate are apparent under different air and steam conditions, and the fluid-induced force shows linear and nonlinear variation with the increasing whirl speed. When the steam temperature increases, the system stability decreases as the dynamic characteristic coefficients change. Conclusions In consequence, working medium parameters are of great significance for turbine stability, and the influence of working medium parameters on the static and dynamic characteristics of seals should be given great attention in practical application.
- seal /
- steam /
- leakage flowrate /
- Computational Fluid Dynamics (CFD) /
- dynamic characteristic coefficient

HTML全文

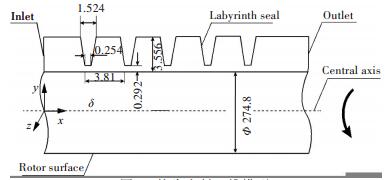

图 1 梳齿密封二维模型

Figure 1. Two-dimensional model of the labyrinth seal

下载: 全尺寸图片幻灯片

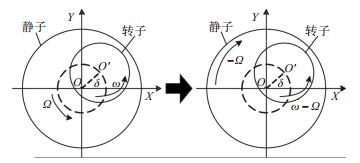

图 2 旋转坐标系

Figure 2. Rotating frame

下载: 全尺寸图片幻灯片

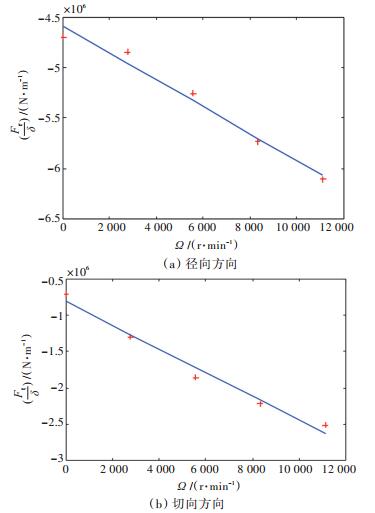

图 3 气流力随涡动速度的变化（T=366.7 K，空气）

Figure 3. Fluid induced force versus whirl speed(T=366.7 K, Air)

下载: 全尺寸图片幻灯片

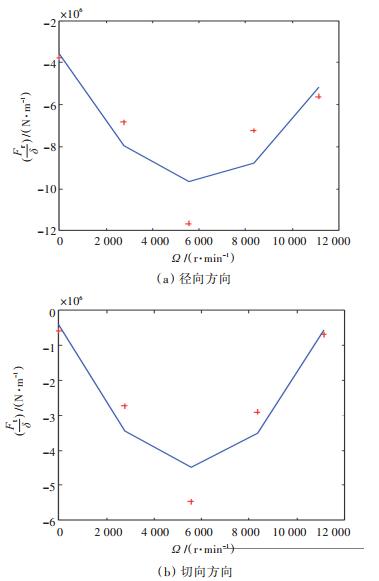

图 4 气流力随涡动速度的变化（T=366.7 K，水蒸汽）

Figure 4. Fluid induced force versus whirl speed (T=366.7 K, steam)

下载: 全尺寸图片幻灯片

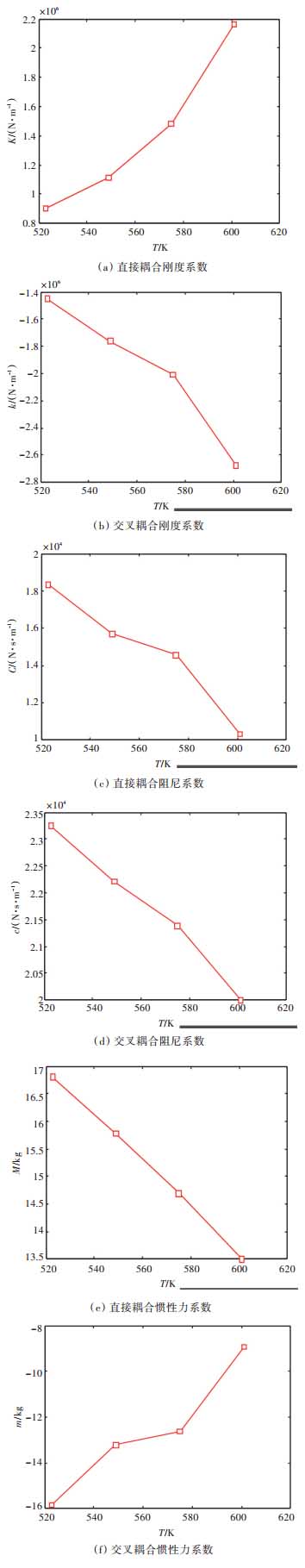

图 5 密封入口温度对动力特性系数的影响

Figure 5. Influence of seal inlet temperature on the dynamic characteristic coefficients

下载: 全尺寸图片幻灯片

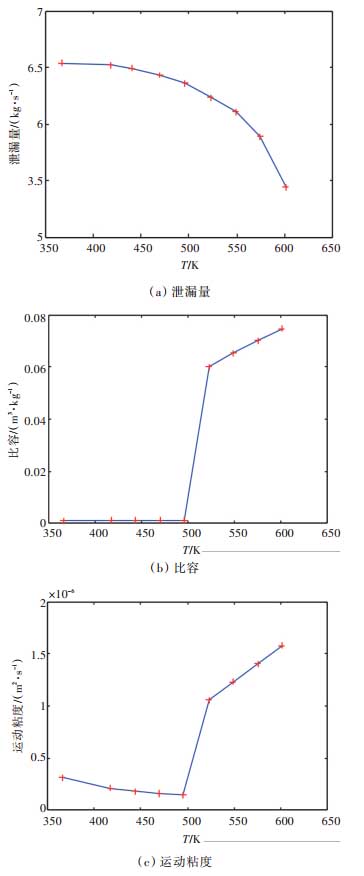

图 6 密封入口温度对泄漏特性的影响（水蒸汽）

Figure 6. Influence of seal inlet temperature on the leakage characteristics(steam)

下载: 全尺寸图片幻灯片

表 1 CFD仿真模型的参数

Table 1. Parameters of CFD simulation model

参数	仿真值
转子转速/（r·min^-1）	11 097
入口压力/MPa	3.447
入口温度T/K	366.7, 523, 549, 575, 601
出口压力/MPa	1.724
工质	空气（理想气体）、水蒸汽

下载: 导出CSV

表 2 密封泄漏量对比

Table 2. Comparison of seal leakage flowrate

工质	文献[19]仿真值	本文仿真值
空气	1.08	1.094
水蒸汽	-	6.54

下载: 导出CSV

表 3 动力特性系数对比

Table 3. Comparison of dynamic characteristic coefficients

动力特性系数	文献[19]仿真值	本文仿真值
动力特性系数	空气	空气	水蒸汽
K /（N·m^-1）	1.88×10⁶	4.59×10⁶	3.55×10⁶
k /（N·m^-1）	-7.20×10⁵	-8.19×10⁵	-3.93×10⁵
C /（N·s·m^-1）	1.6×10³	1.56×10³	1.39×10⁴
c /（N·s·m^-1）	1.24×10³	1.27×10³	1.97×10⁴
M / kg	-	-0.438	15.78
m / kg	-	-0.653	-11.89

下载: 导出CSV

表 4 不同水蒸汽温度的密封泄漏特性

Table 4. Seal leakage characteristics under different steam temperatures

温度T/K	泄漏量/（kg·s^-1）	比容/（m³·kg^-1）	运动粘度/（m²·s^-1）
366.7	6.54	1.037×10^-3	3.137×10^-7
418	6.52	1.083×10^-3	2.058×10^-7
444	6.49	1.114×10^-3	1.773×10^-7
470	6.43	1.150×10^-3	1.575×10^-7
496	6.36	1.194×10^-3	1.434×10^-7
523	6.23	5.985 9×10^-2	1.052 9×10^-6
549	6.11	6.519×10^-2	1.227×10^-6
575	5.89	6.998 2×10^-2	1.401 2×10^-6
601	5.44	7.445 6×10^-2	1.578 5×10^-6

下载: 导出CSV
